Honeywell Fusion4 MSC-L User Manual

Operation - Stream Configuration
Part No.: 4418309_Rev09 Fusion4 MSC-L
Honeywell Installation & Operation Manual 5 - 179
 Double pulse - A pulse is generated after 25% of the injection
volume is injected during an injection cycle. Another pulse is
generated after 75% of injection volume is injected.
 Last 25%
- A pulse is generated after 75% of the injection volume
is injected.
 Extended piston switch
- The injector feedback is active for the
complete period during which the additive injection solenoid is
active and some additional time (the time equal to the feedback
pulse duration entity).
 Inverted extended piston switch
- The inverse of extended piston
switch mode.

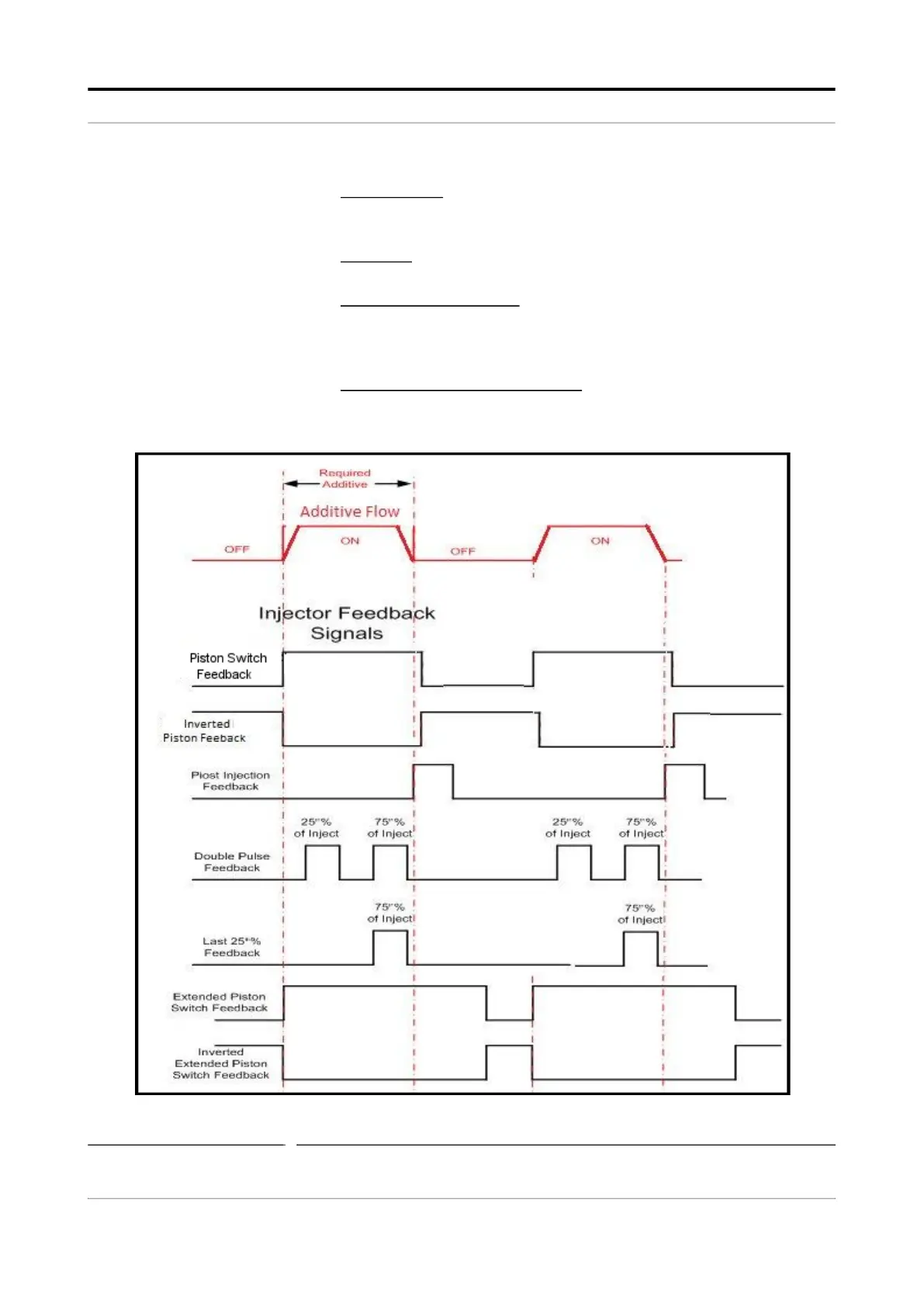

FIGURE 5-31 Injector feedback signals
