System Description - Introduction
Fusion4 MSC-L Part No.: 4418309_Rev09
3- 6 Installation & Operation Manual
Honeywell
However, a single batch (load to a compartment) can only control a
subset of the product streams or the additive streams.

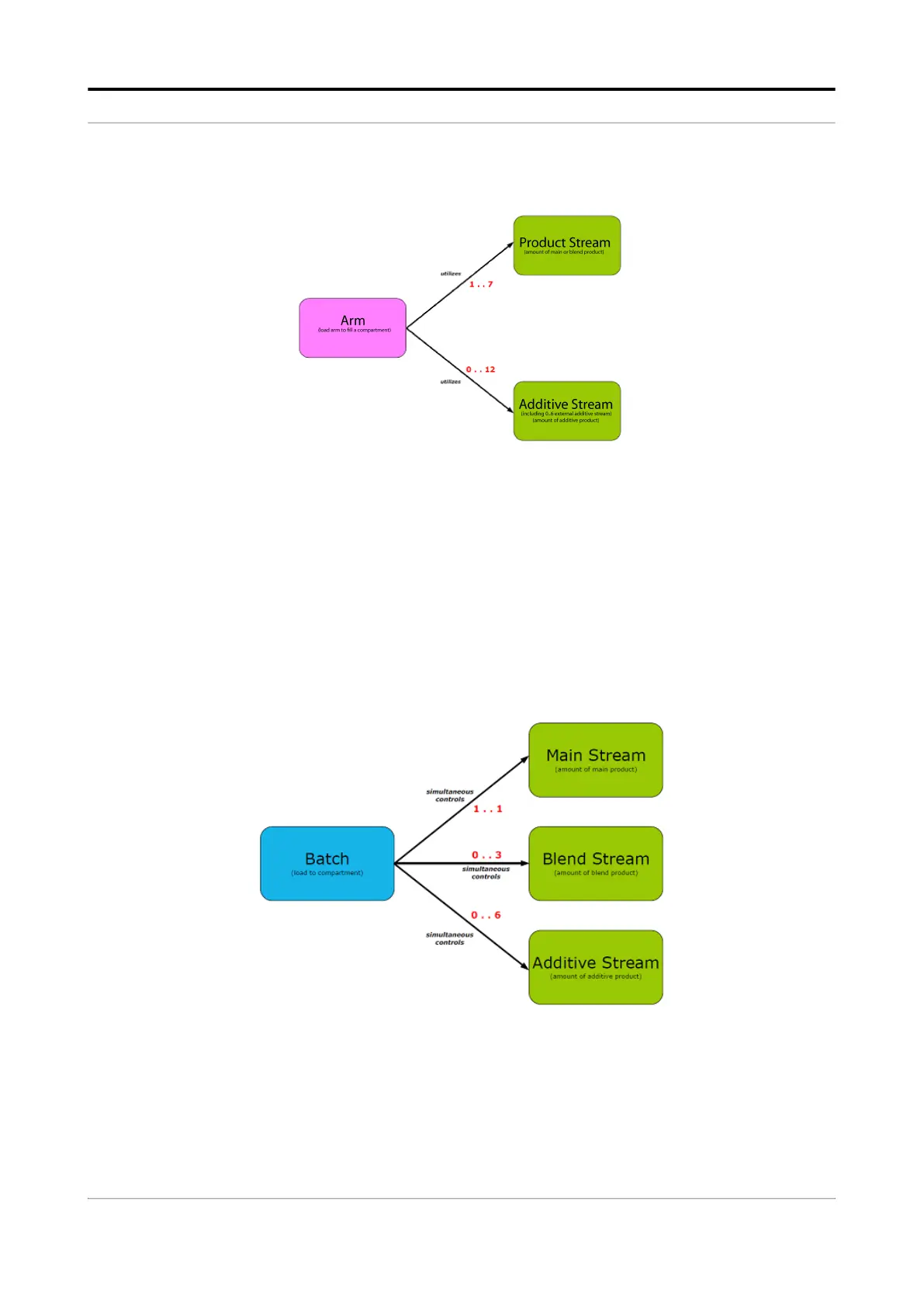

For each batch, the MSC-L supports the control of the following, as
described in the following figure.
 Stream with main product
 Maximum 3 blend streams
 Maximum 6 additive streams (inclusive of internal and external
additives)
This sub set is defined by the recipes running on that arm.
