Operation - W&M Compliance
Part No.: 4418309_Rev09 Fusion4 MSC-L
Honeywell Installation & Operation Manual 5 - 323
2. Using a switch on the keyboard of the MSC-L.

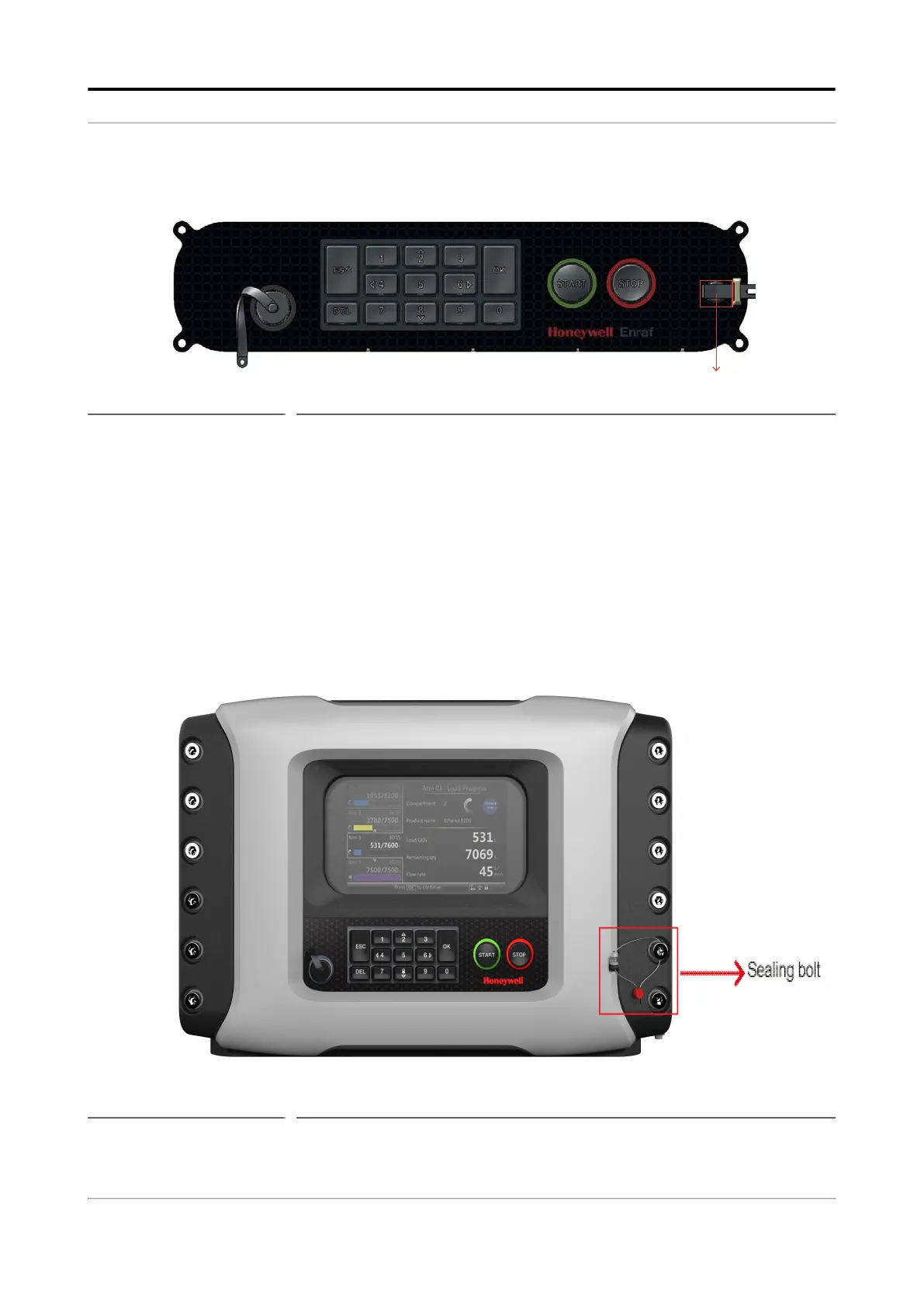

FIGURE 5-51 Keyboard of MSC-L
The MSC-L W&M relevant configuration and the MSC-L relevant
firmware is sealed when this switch is activated.
When the switch is deactivated, the MSC-L W&M relevant configu-
ration and the relevant firmware is not sealed.
NOTE: In case the W&M keyboard switch is used for
sealing, the board W&M jumpers/switches must be
set to OFF. The device can be sealed by the service
technician or the notified body engineer.
The MSC-L can be physically sealed as shown in the following figure.
FIGURE 5-52 Sealing Bolt
