Honeywell Fusion4 MSC-L User Manual

System Description - Input Functions
Part No.: 4418309_Rev09 Fusion4 MSC-L
Honeywell Installation & Operation Manual 3 - 49

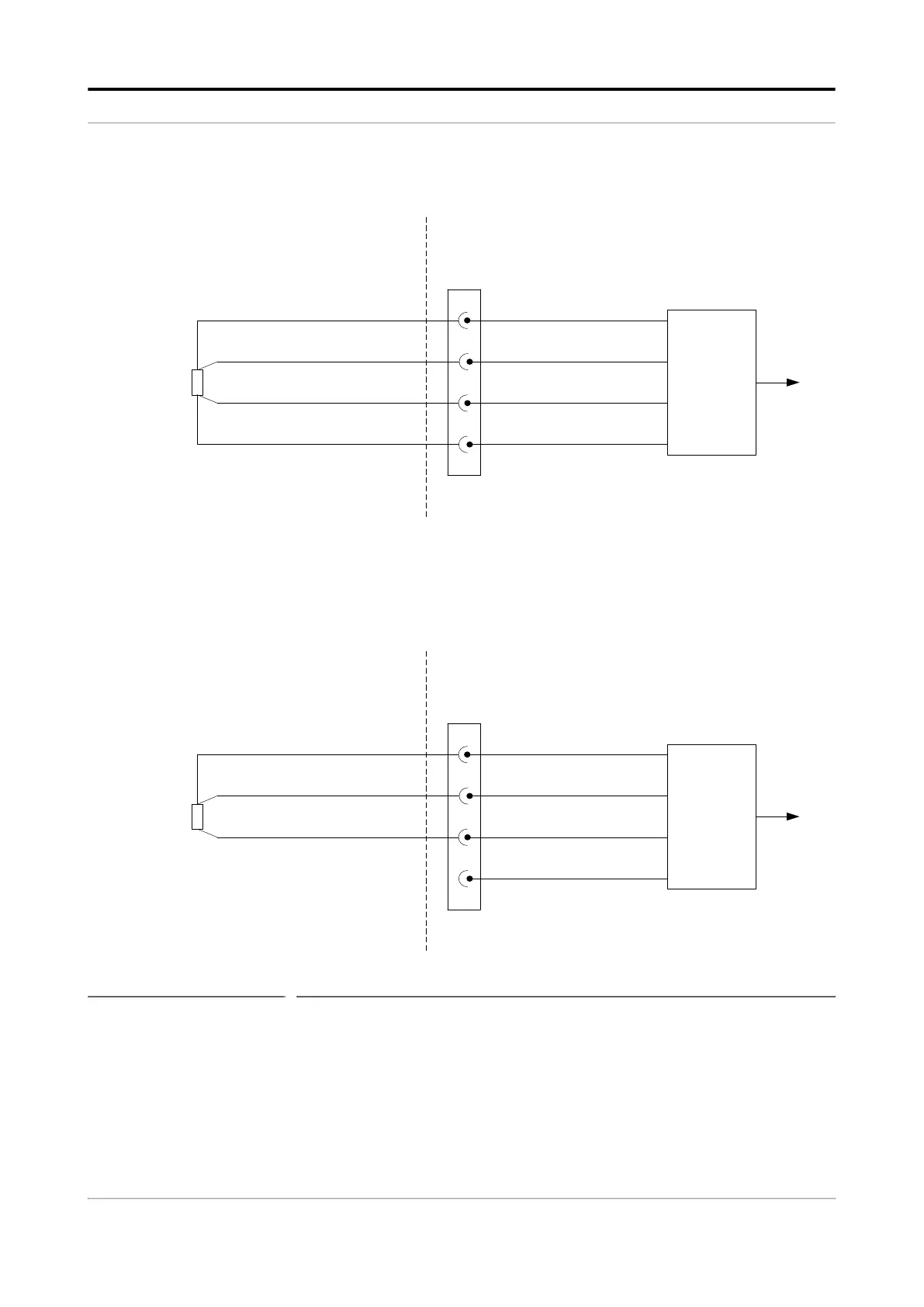

FIGURE 3-29 RTD connections
1
CAN-ARM-MSC
CN141
2
PT100 RTD element
IEC 60751(0.385Ω/ C)
4-Wire
RTD
3
4
RTD S-
RTD COM
RTD POS
RTD S+
ADC
1
CN141
2
PT100 RTD element
IEC 60751(0.385Ω/ C)
3-Wire
RTD
3
4
RTD S-
RTD COM
RTD POS
ADC
or
External equipment
CAN-ARM-MSC
External equipment
