Honeywell GasLab Q2 User Manual

TECHNICAL DATA AND INFORMATION
Information for general use
Rev. M / 73023639
250
GasLab Q2

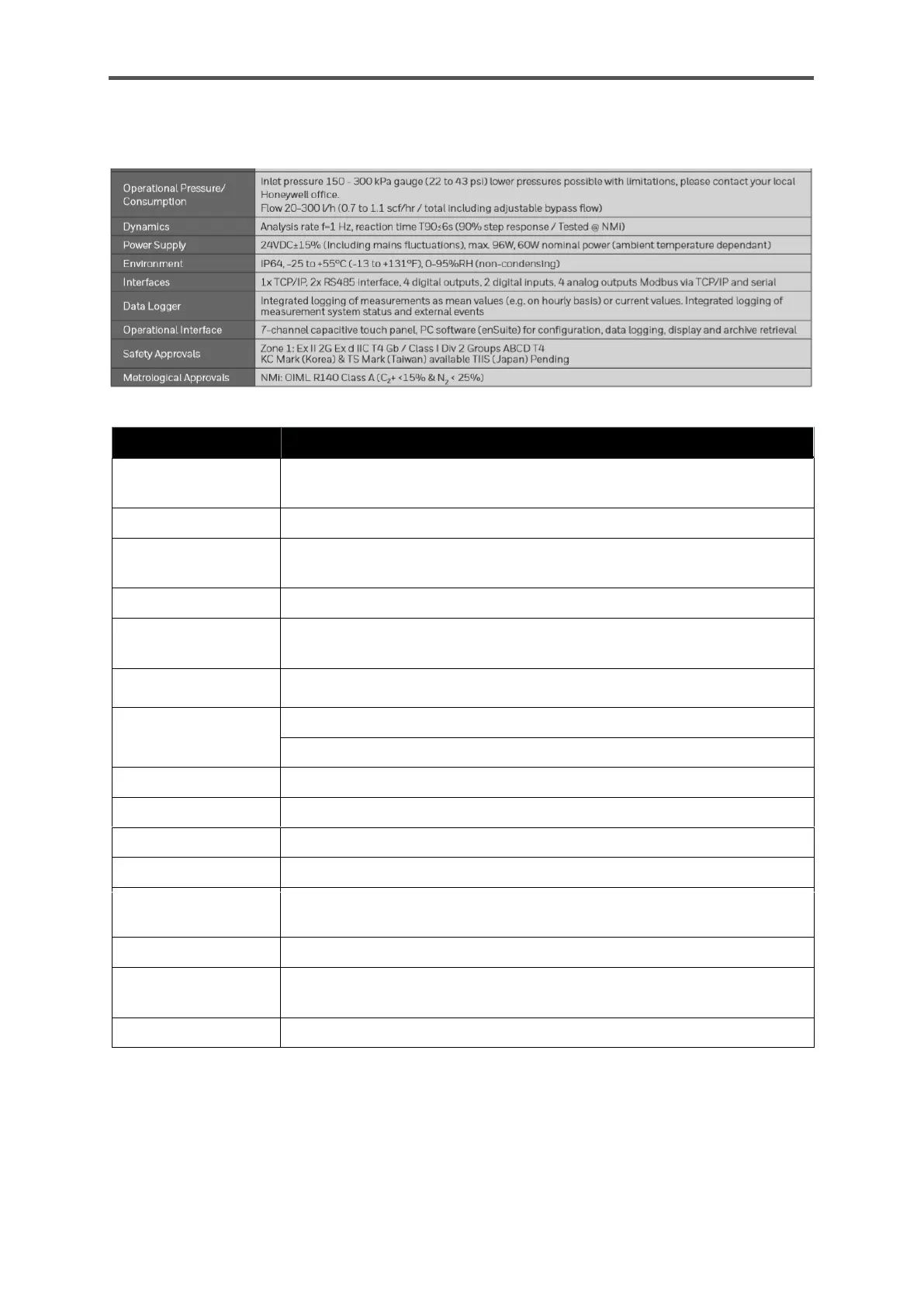

11.4. Notes on device characteristics and operating conditions
GasLab Q2 system
Values and/or comments
Place of use
Installation close to the sampling point up to Ex Zone 1 at
atmospheric pressure, gas outlets with no back pressure.
Breather line
Connection at breather element: 1/4” NPT
Housing
dimensions
L = 38cm ≙ 14.96 ′′, W = 27cm ≙ 10.63 ′′, H = 23cm ≙ 9.06 ′′
Weight
16kg ≙ 36 lb
Installation gaps:
At least 300 mm to the left and right, at least 200 mm≙ 7.87 ′′ at the
top and bottom (recommended 900 x 900 mm≙ 35.43 x 35.43 ′′)
Appr. Heating time
20 min at 20°C ≙ 68°F ≙ 293 K / 1 hour at -25°C ≙ −13°F ≙ 248 K
Interval settings
1 week for operational calibration
1 year for service calibration
Operating system
Service PC: See download section
Software
EnSuite
File format
enSuite.csv/enSuite.par
Data logger
Integrated (interval adjustable)
Communication
Speed:
345,600 Baud TCP/IP (serial)
EMC strength
Electrostatic discharge to IEC 61000-4-2 [25]
Mechanical
strength
Vibration to IEC 60068-2-64 [20]; IEC 60068-2-47 [19]
Level of dirt
of the macro environment: 4
