Honeywell GasLab Q2 - Device Dimensions

GASLAB Q2 AFTER DELIVERY AND AT THE PLACE OF USE
Information for general use
Rev. M / 73023639
58
GasLab Q2
5.2.2. Device dimensions
Please note that all dimensions in the following drawing are shown in mm.
The dimensions with information (1 (2 (3 depend on the types of fluid and electrical couplings used.

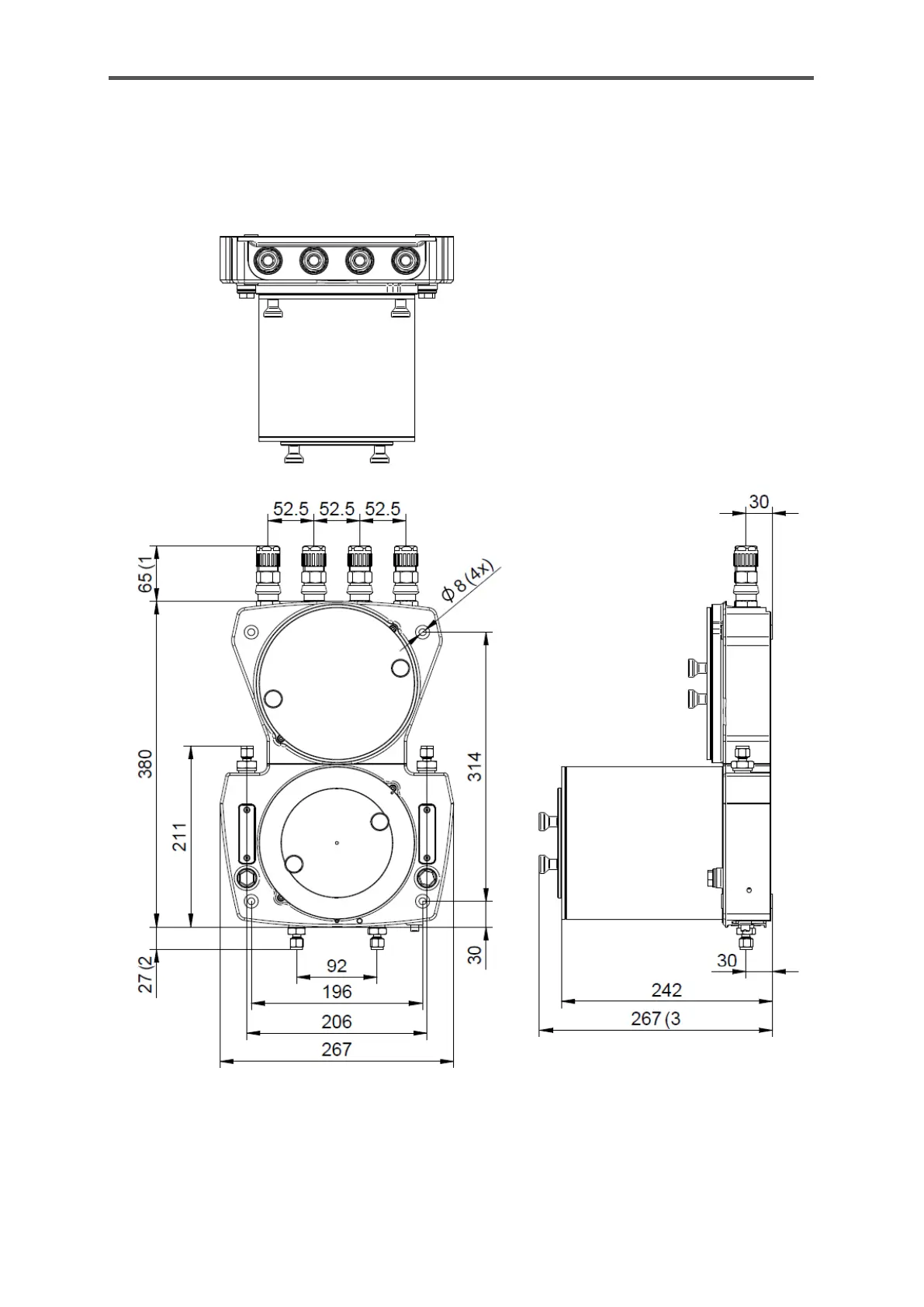

Figure 5.1: Dimension drawing (with optional sand guard)
