GASLAB Q2 DISPLAYS (OPERATE THE DEVICE)
Information for general use
Rev. M / 73023639
7.3.14. System display I/O (basic network settings / Inputs /Outputs)
The I/O – Overview display lists all the device parts available on inputs or outputs
and enables the user to go to other sub-displays using hyperlinks.
The hyperlinks and test mode function
appear depending on the parameter
set.
A login is required to use the functions.
(Section 7.3.11 System display Users
(Login/Logout / Password)).

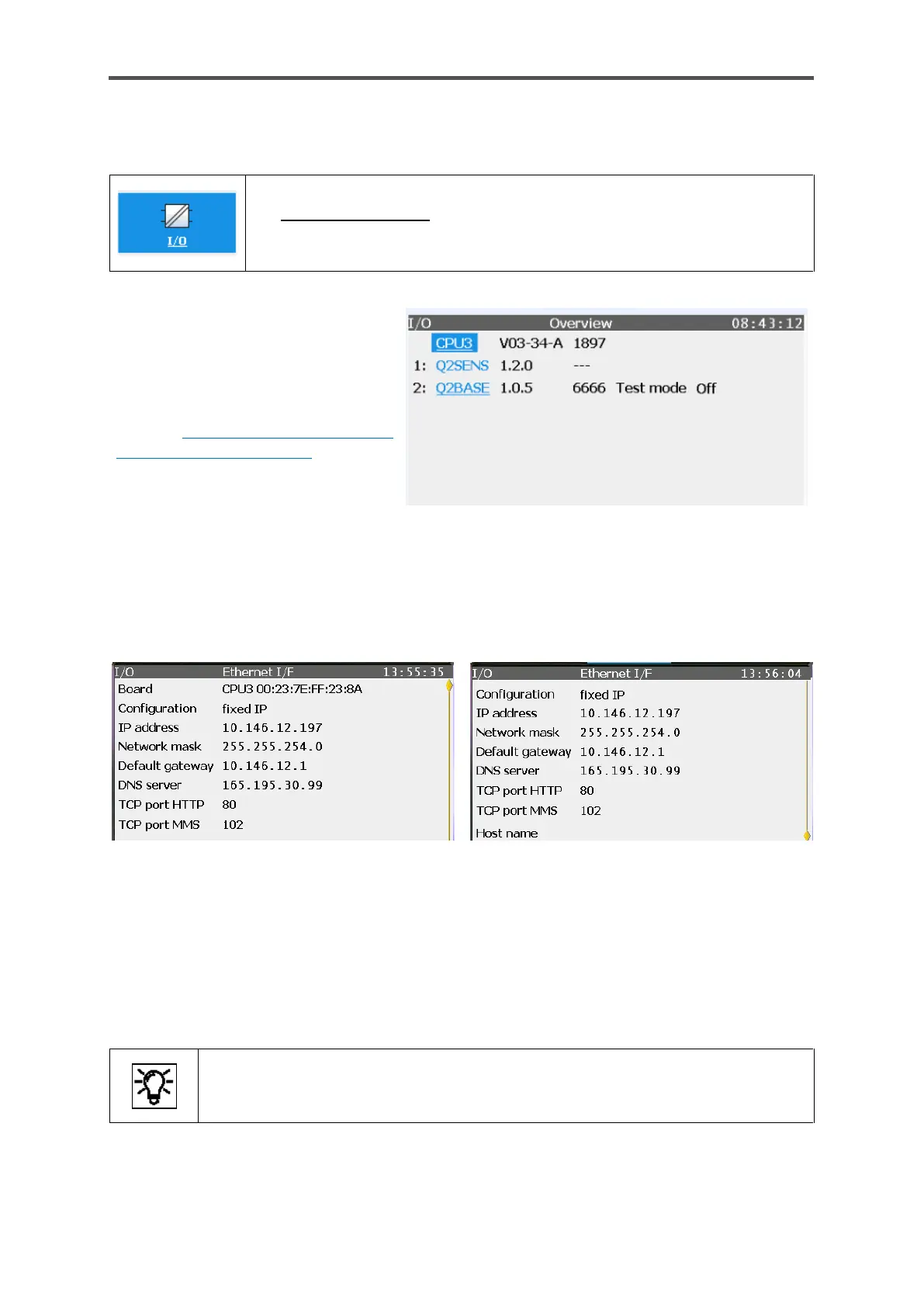

Figure 7.38: I/O – Overview display
Using test mode, you can apply test values to individual output channels, which are used instead of
the original values. Hyperlink CPU3 is always available and enables the user to go to the Ethernet
I/F display with the basic network settings. See figure.
Figure 7.39: I/O – Ethernet I/F display
As the example above shows, this display lists the internal board (CPU3) with its MAC address
(00:23:7E:FE:04:17). If a user with the appropriate authorization is logged in, the configuration
(DHCP mode), IP address, network mask, default gateway, DNS server, TCP ports and host name
can be changed. The number of entries which can be changed is also affected by the selected/pre-
set settings.
If the user is not logged in or does not have the appropriate authorization,
data can only be read in this display.
