3. Structure and inscriptions of the GasLab Q2
GasLab Q2 is a compact device housed in a two-piece explosion-proof aluminum housing. The
parts are mechanically and electrically connected. The measuring instrument contains all parts
required to fulfil the measuring task. The built-in additional housing heater and an integrated fan
allow an operating temperature range from −25°C ≙ −13°F ≙ 248 K to +55°C ≙ +131°F ≙ 328 K.
From a functional point-of-view, the hard work can be divided into three sections.

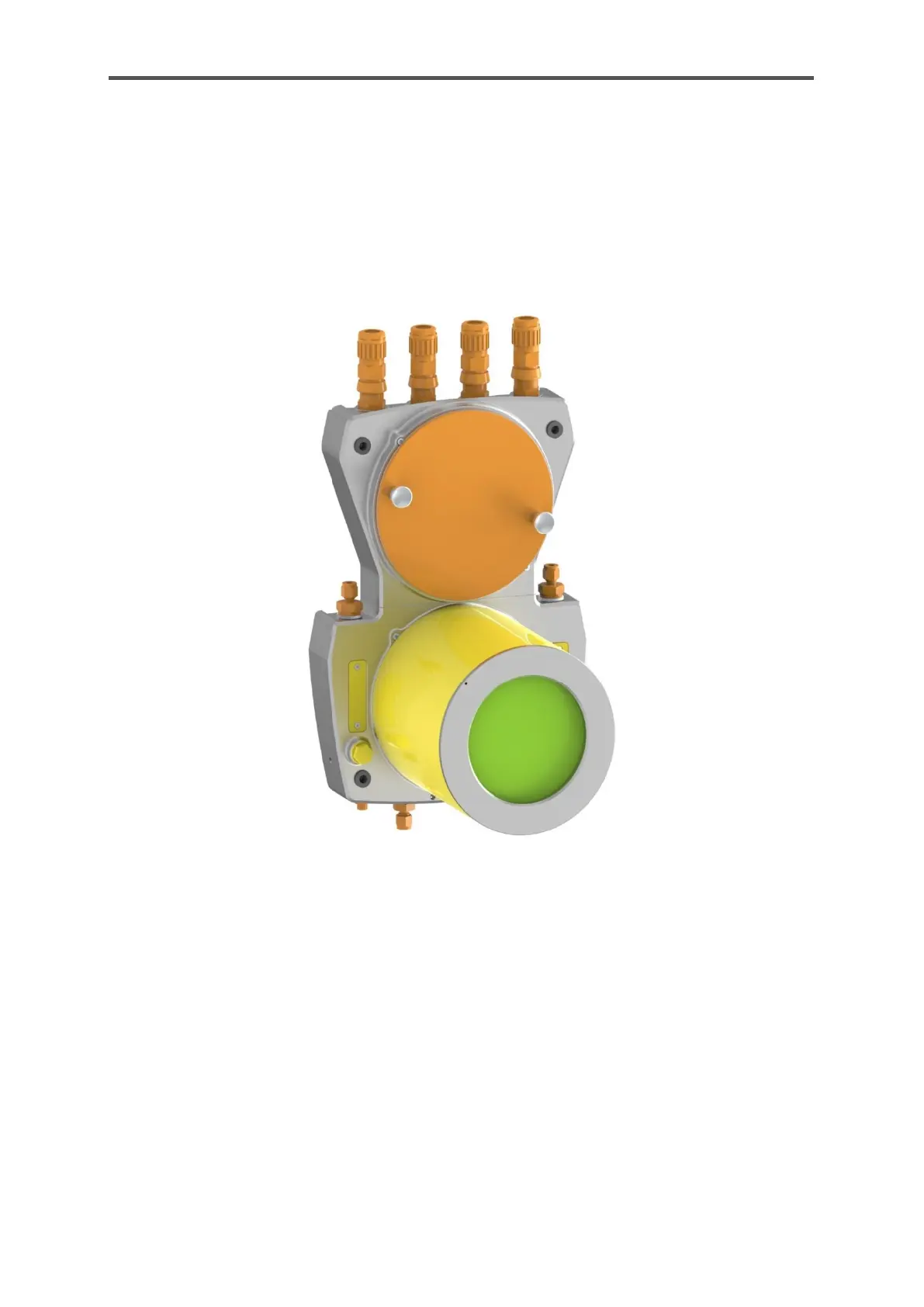

Figure 3.1: Overview Hardware sections
The connection section (shown in orange in the diagram) constitutes the interface to external
connections, such as the gas supply and electrical cables.
The instrumentation section (shown in yellow in the diagram) primarily contains the structure with
function modules and provides access for production and service work.
The human-machine interface (HMI interface shown in green in the diagram) is the interface to the
user.
These sections are explained in more detail in the following.
