Honeywell GasLab Q2 User Manual

STRUCTURE AND INSCRIPTIONS OF THE GASLAB Q2
Information for general use
Rev. M / 73023639
44
GasLab Q2
3.1. Connection section
The connection section is sub-divided into the following parts:
• Gas connections (inputs/outputs and breather)
• Electrical connections (cable inlet and connection circuit board)

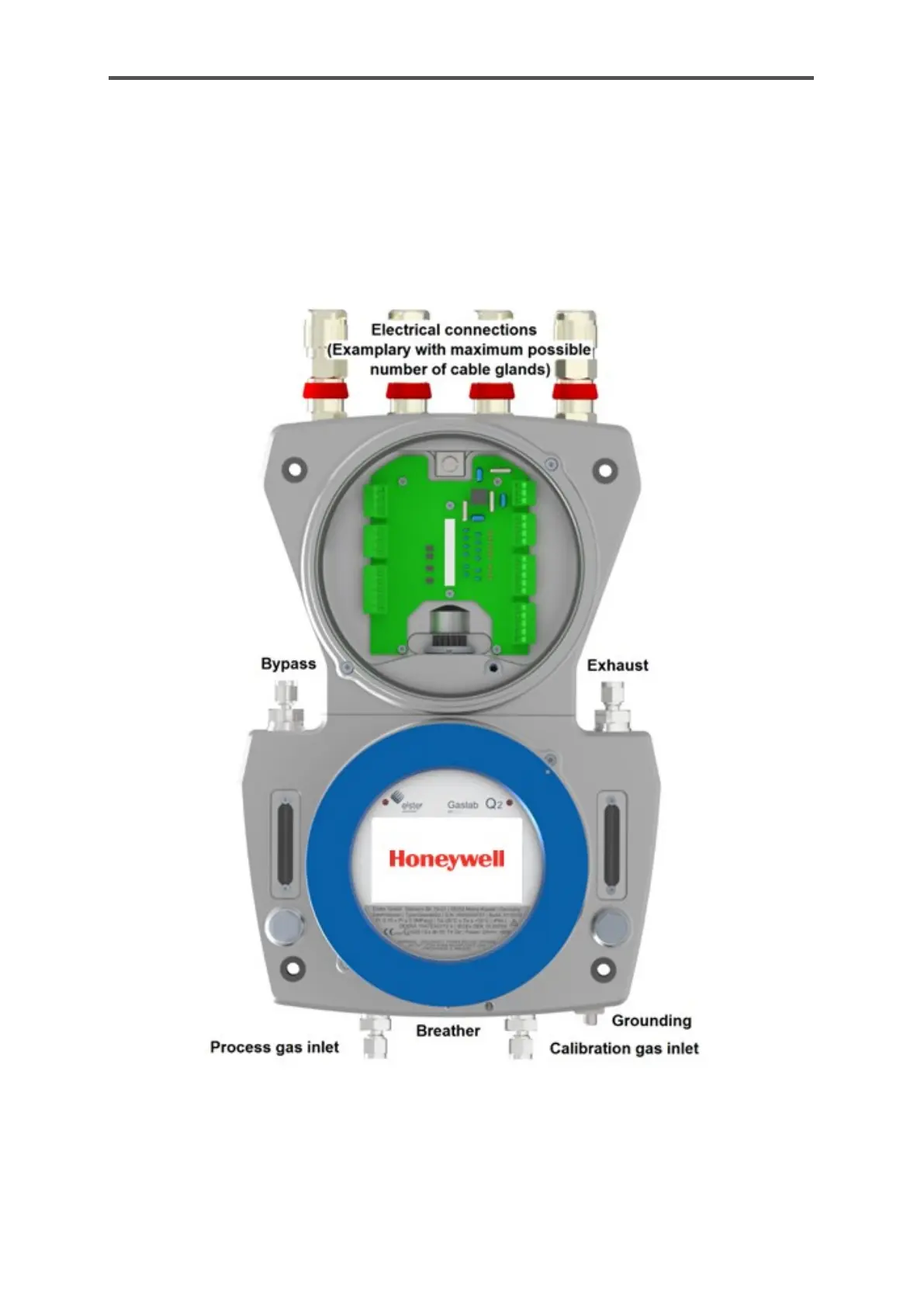

Figure 3.2: Overview of connection section/connection points
