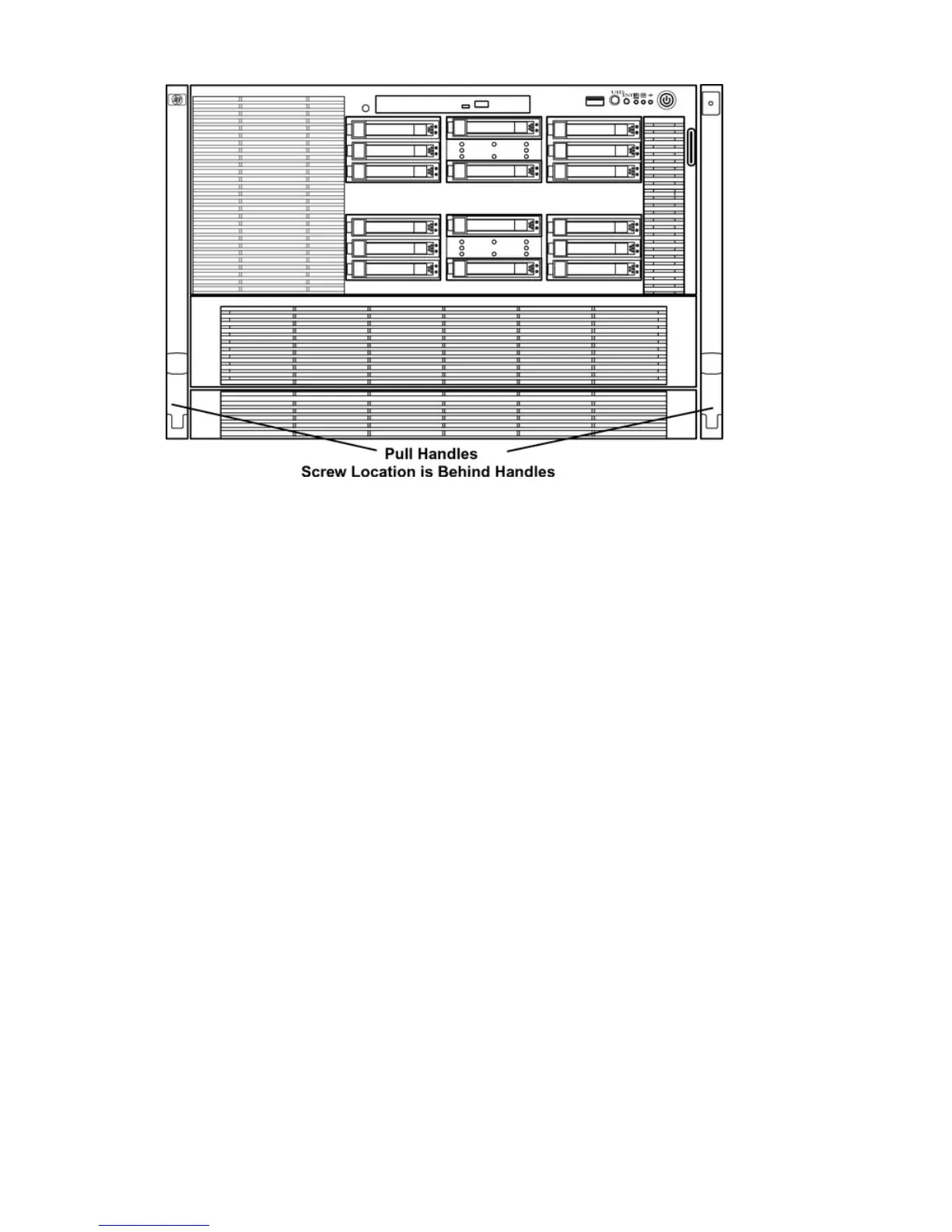

Figure 53 Rack Screw Location
Inserting the Server into the Rack
To insert the server into the rack, follow these steps:
1. Press the rail clips on both sides of the server inward.
2. Push the server into the rack until it stops.
Accessing a Pedestal-Installed Server
Follow these steps to access the internal components in a pedestal mounted server.
1. Loosen the two thumb screws in the server rear upper right and left corners which hold the
top in place.
2. Slide the top back by pulling on the indented finger grips on the top.
3. Once the top has moved about 1/4 inch it can be lifted off.
Accessing a Pedestal-Installed Server 177
