HP Integrity rx6600 Service Manual

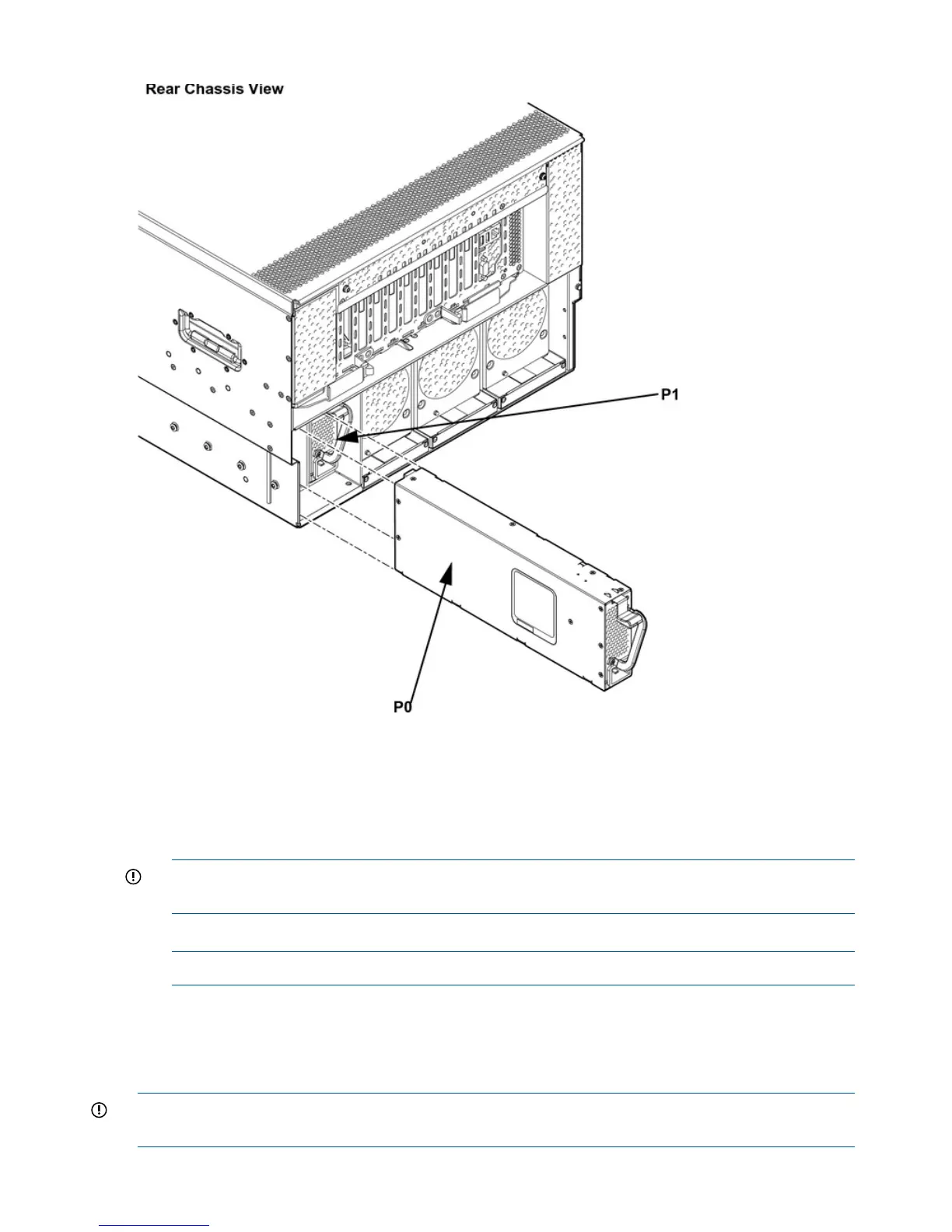

Figure 60 Removing and Replacing a Hot-Swappable Power Supply
Replacing a Hot-Swappable Power Supply
To replace a hot-swappable power supply, follow these steps:
1. Remove the metal filler panel if required.
2. Support the new power supply with both hands, and slide it into the empty slot until it clicks
into place (Figure 60).
IMPORTANT: Ensure the power supply is flush with the adjacent power supply or metal filler
panel.
3. Plug the power cord into the power supply receptacle.
NOTE: The LED immediately turns on when power is applied.
4. Replace the cable management arm.
Removing and Replacing a Hot-Swappable Disk Drive Filler
Disk drive fillers are installed for all slots that do not contain a disk drive.
IMPORTANT: For cooling purposes, always leave disk drive fillers in slots that do not contain a
disk drive.
186 Removing and Replacing Server Components

HP Integrity rx6600 Specifications

General

Processor	Intel Itanium 2
Network	Integrated dual Gigabit Ethernet
Form Factor	5U rack-mountable
Power Supply	Redundant hot-plug power supplies
Processor Speed	1.6 GHz
Memory Type	DDR2 ECC Registered
RAID Support	Yes
Operating System	HP-UX, Linux, Windows Server
