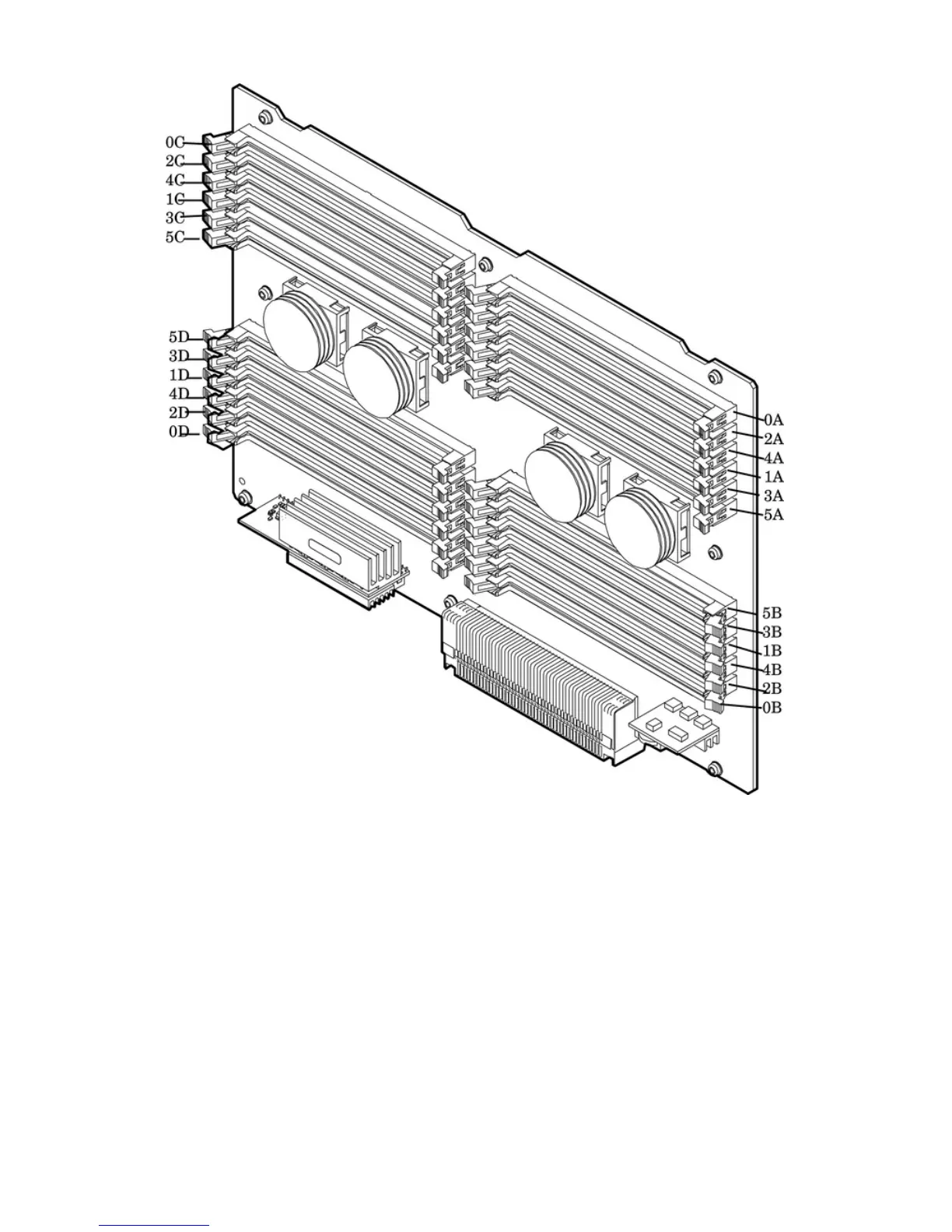

Figure 70 48-DIMM Memory Carrier Board Slot IDs
Memory Loading Rules and Guidelines
Use the following rules and guidelines when installing memory:
• Install DIMMs in quads.
• Ensure all DIMMs within a quad are identical.
• Install quads in order of capacity from largest to smallest. For example, install all 2 GB quads
before 1 GB or smaller quads, and install all 1 GB quads before 512 MB quads.
• Side 0 must have equal or greater memory capacity than side 1.
• Install DIMM quads based on the following rules:
Load quads into either side of the memory carrier in order, starting with quad 0 and
ending with quad 5.
1.
2. Install the first quad in side 0, quad 0.
3. Install the second quad in side 1, quad 0.
4. For the remaining quads:
Removing and Replacing System Memory 209
