HP Integrity rx6600 Service Manual

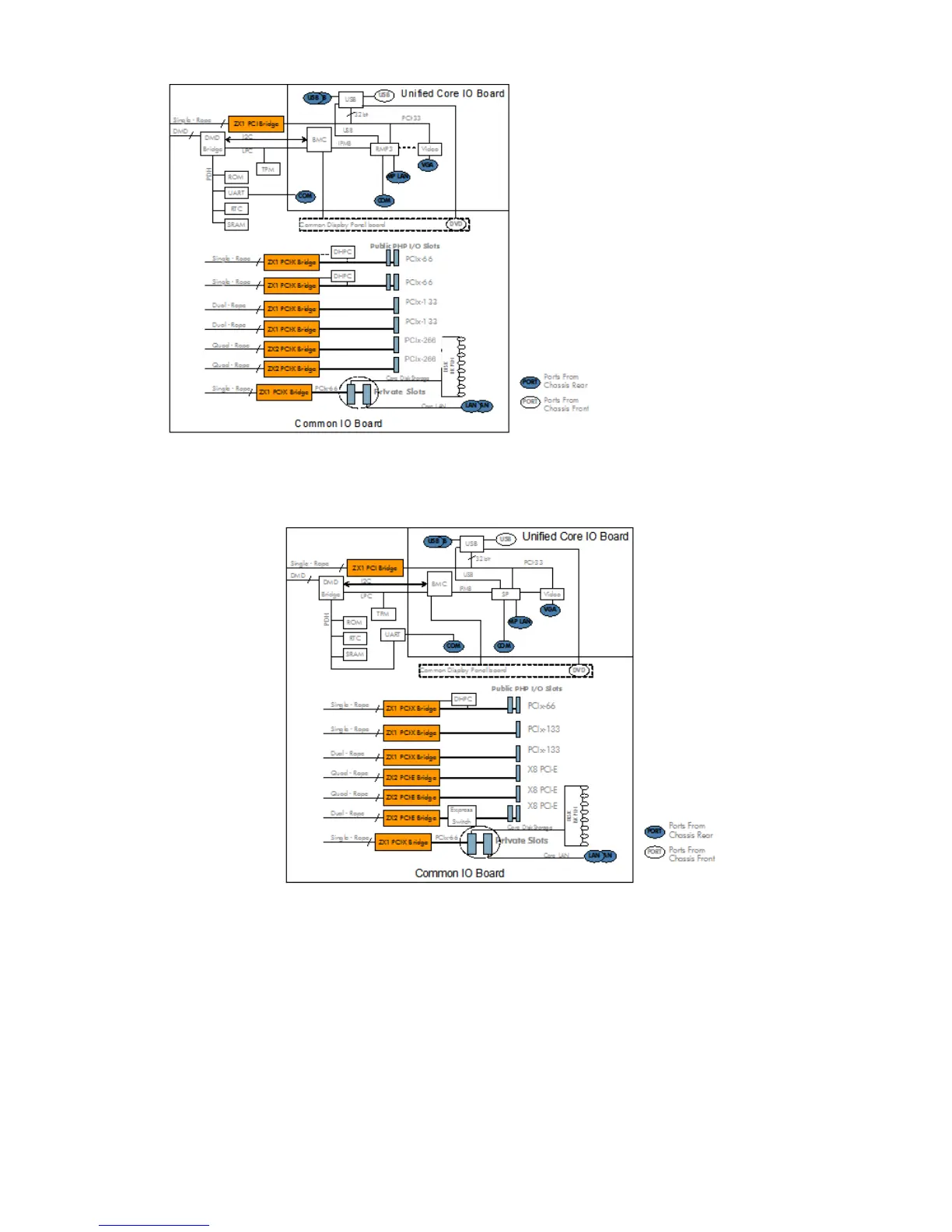

Figure 1 I/O Subsystem Block Diagram
Figure 2 (page 18) is a block diagram of the PCI/PCI-X/PCIe I/O subsystem.
Figure 2 PCI/PCI-X/PCIe I/O Subsystem Block Diagram
PCI/PCI-X IOBP
On the 10 slot PCI/PCI-X IOBP there are a total 8 Public slots (PCI-X mode1/2), 2 Private Fast-core
slots (PCI-X mode1), and 1 Private Slow-core UCIO slot (PCI 32-bit/33-MHz). The eight Public slots
are further subdivided into three speed/bandwidth configurations:
• Four PDHP (Public Dual Hot-plug), which operate at 64-bit/66-MHz PCI-X
• Two PSHP-SDR (Public Single Hot-plug - Single Data Rate), operating at 64-bit/133-MHz PCI-X
• Two PSHP-DDR (Public Single Hot-plug - Double Data Rate), at 64-bit/266-MHz (133-MHz
double clocked) PCI-X mode2
18 Overview

HP Integrity rx6600 Specifications

General

Processor	Intel Itanium 2
Network	Integrated dual Gigabit Ethernet
Form Factor	5U rack-mountable
Power Supply	Redundant hot-plug power supplies
Processor Speed	1.6 GHz
Memory Type	DDR2 ECC Registered
RAID Support	Yes
Operating System	HP-UX, Linux, Windows Server
