Required Tools
To install and remove processors, use the processor install tool fastened to the processor board.
Removing a Dual-Core Processor
To remove a dual-core processor, follow these steps:
1. Power off the server and disconnect the power cables. See “Powering Off the Server”
(page 90).
2. If rack installed, slide the server out from the rack until it stops. See “Extending the Server from
the Rack” (page 176).
3. Remove the memory carrier assembly cover. See “Removing the Memory Carrier Assembly
Cover” (page 179).
NOTE: You do not need to fully remove the top cover to service this component; however,
the top cover release lever must be open. You must remove the memory carrier because it
attaches directly to the processor board.
4. Remove the memory carrier assembly. See “Removing the Memory Carrier Assembly”
(page 203).
5. Remove the processor board assembly. See “Removing the Processor Board Assembly”
(page 214).

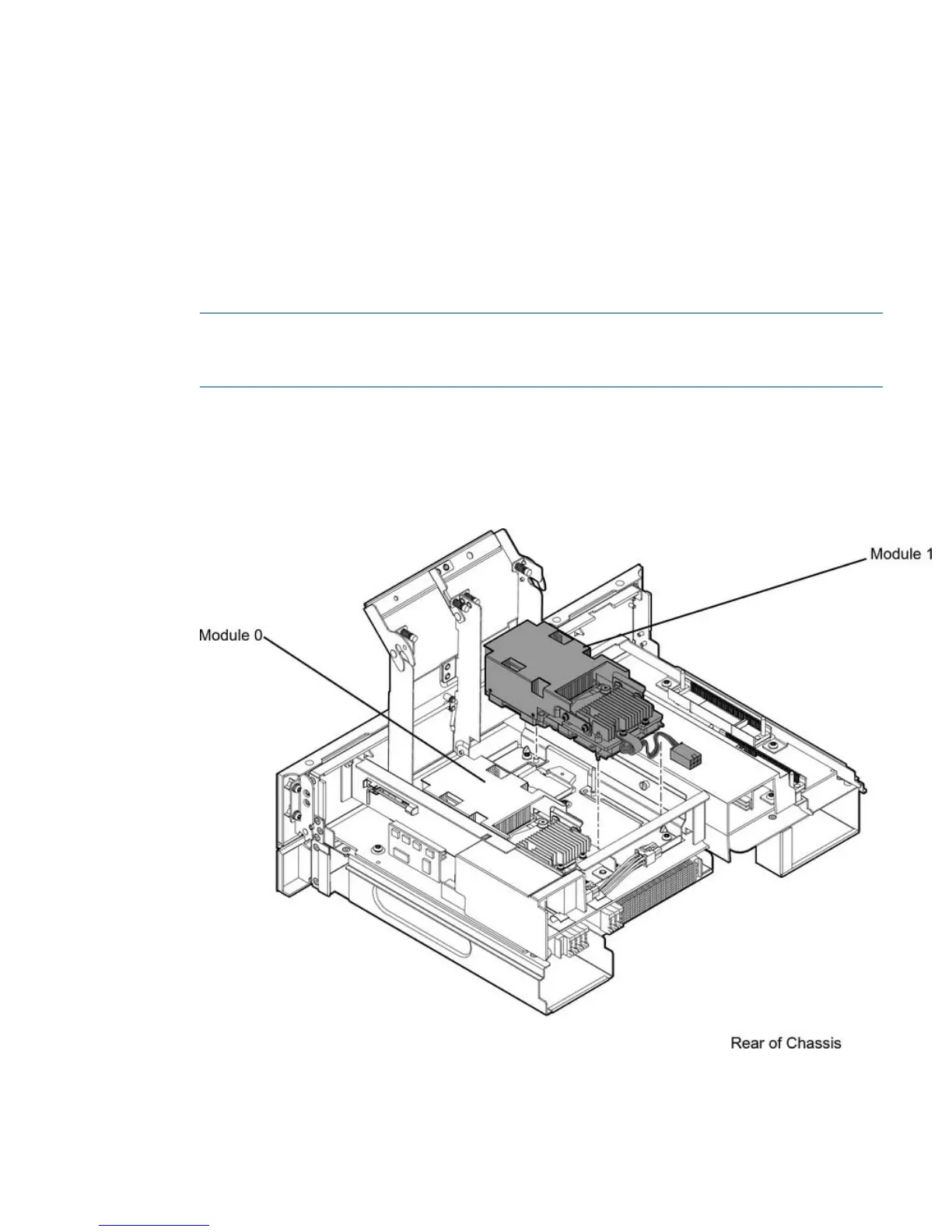

Figure 73 Processor Board Assembly
Removing and Replacing a Dual-Core Processor 217
