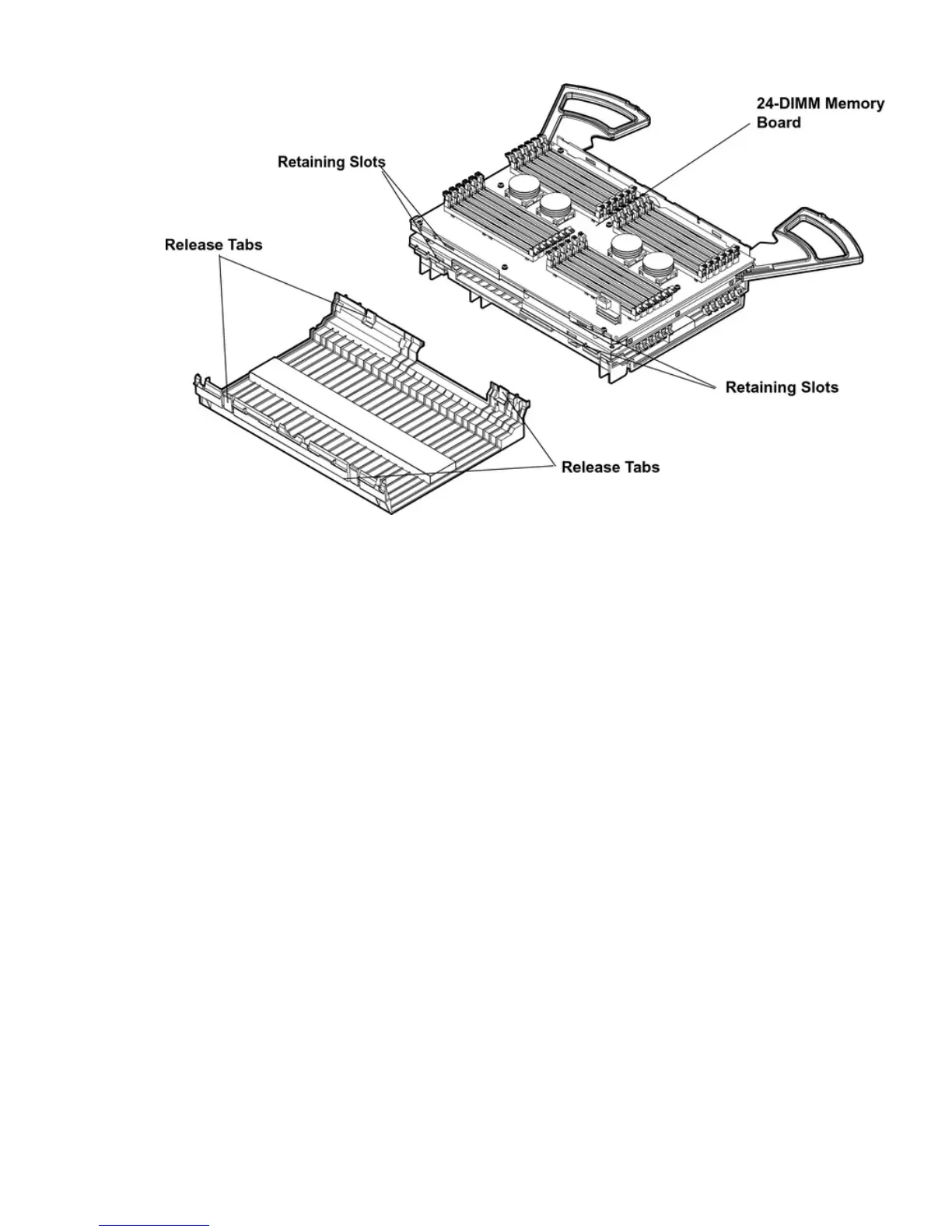

Figure 69 Memory Carrier Assembly with Side Cover Open
Memory Installation Conventions
Before installing memory, read and understand the following memory installation conventions:
• Supported DIMM sizes and memory configurations
• DIMM load order
• DIMM slot IDs
Supported DIMM Sizes and Memory Configurations
The standard server configuration includes a 48-DIMM memory carrier which contains one or two
24-DIMM memory boards.
System DIMMs seat onto the memory boards. The minimum server configuration requires at least
one memory quad, or group of four DIMMs.
The following are the supported DIMM sizes for the server:
• 512 MB
• 1 GB
• 2 GB
• 4 GB
• 8 GB
Table 73 lists the supported memory configurations for the server.
Removing and Replacing System Memory 207

HP Integrity rx6600 Specifications

General

Processor	Intel Itanium 2
Network	Integrated dual Gigabit Ethernet
Form Factor	5U rack-mountable
Power Supply	Redundant hot-plug power supplies
Processor Speed	1.6 GHz
Memory Type	DDR2 ECC Registered
RAID Support	Yes
Operating System	HP-UX, Linux, Windows Server
