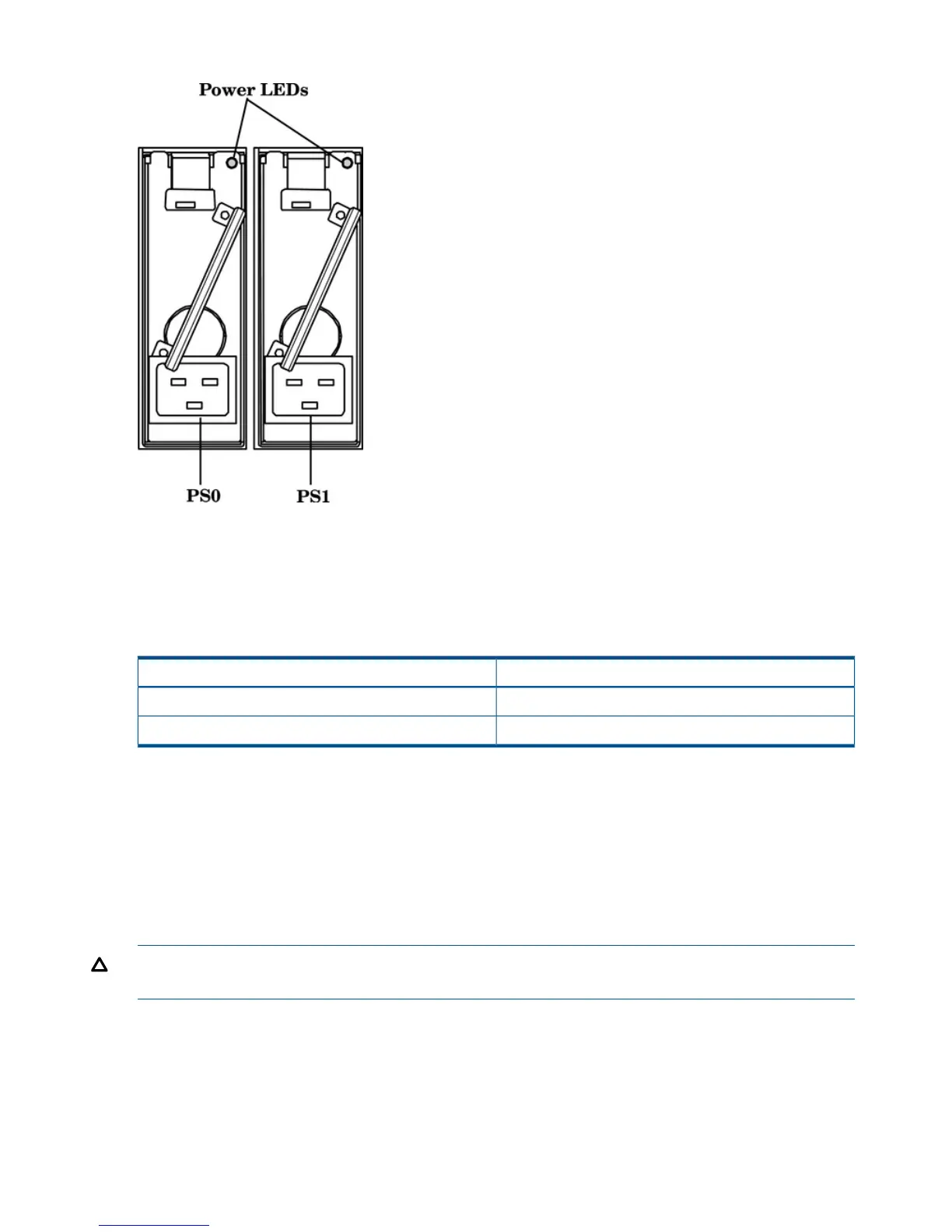

Figure 16 Power LEDs
Rear Panel UID LED and Button
The UID button is used to help locate a particular server within a rack of servers (Figure 13). You
can remotely activate this function using various system utilities.
Table 13 lists the rear panel UID LED states.
Table 13 Rear Panel UID LED
StatusStates
UID button is not activatedOff
UID button is activated
1
Blue
1
There is an additional UID LED and button located on the front control panel of the server. Both UID LEDs illuminate when
you activate either of the front or rear UID buttons
PCI/PCI-X/PCIe Card Slot
The server has eight public, hot-pluggable PCI/PCI-X/PCIe slots and two private core I/O slots.
Each slot has an attention LED that serves two purposes (Figure 13). It indicates a potential problem
with the slot that requires immediate attention. Additionally, the LED can function as a locator used
to identify a particular PCI/PCI-X/PCIe slot. You can activate the locator functionality using various
software utilities.
CAUTION: Private core I/O slots are not hot-pluggable. Do not remove the cards in these slots
without first powering off the server and unplugging the power cords.
38 Overview
