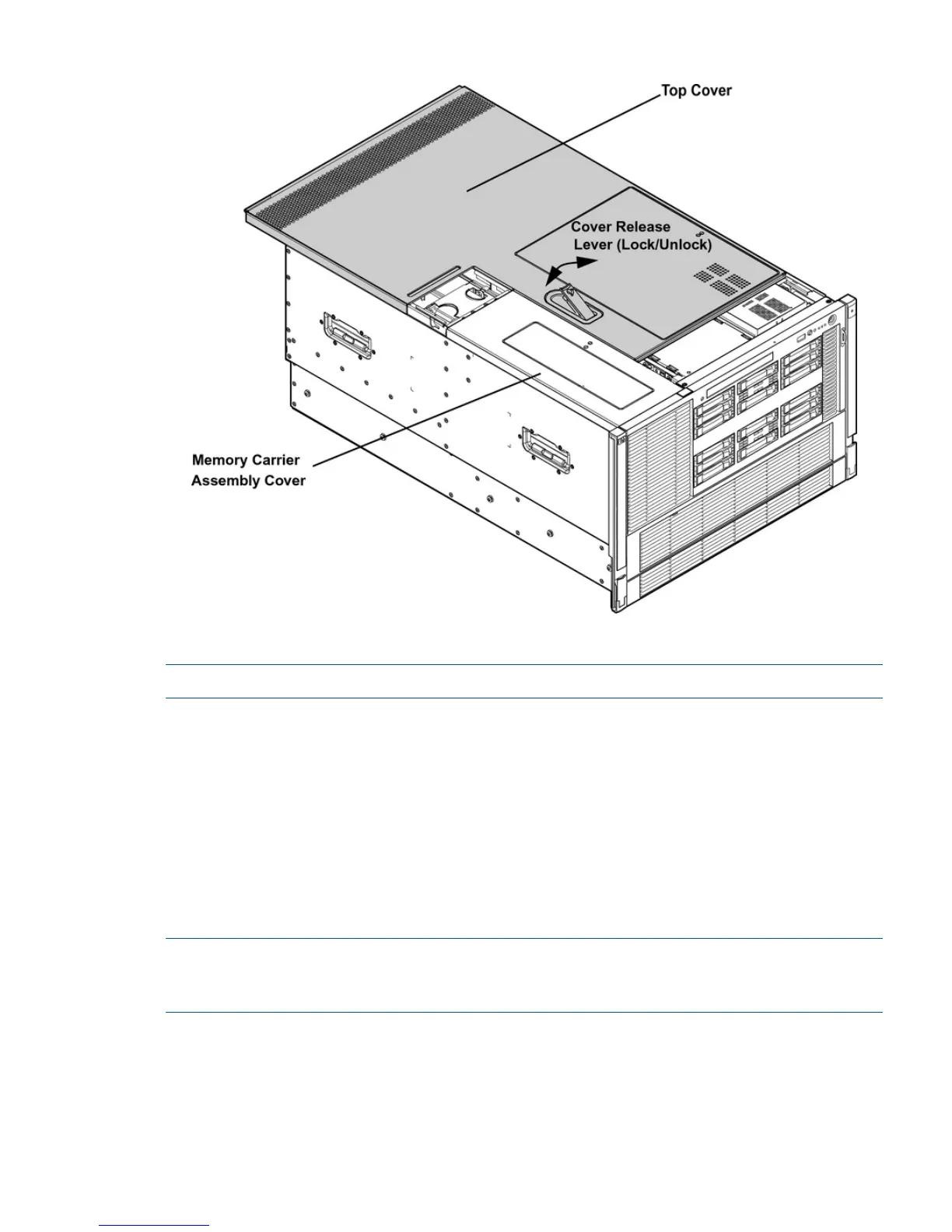

Figure 17 Removing and Replacing the Top Cover
Replacing the Top Cover
NOTE: Always replace the memory carrier assembly cover before replacing the top cover.
To replace the top cover, follow these steps:
1. Ensure the memory carrier assembly cover is in place.
2. Ensure the cover release lever is in the unlocked position (Figure 17).
3. Align the tabs of the top cover with the corresponding slots in the chassis. Insert the tabs into
the slots.
4. Slide the cover forward until it is flush with the front of the chassis.
5. Push the cover release lever down into the latched position (Figure 17).
6. Lock the cover release lever. Turn the cam 90 degrees clockwise.
Removing and Replacing the Memory Carrier Assembly Cover
NOTE: When the memory carrier assembly cover is open or removed, the chassis fan units
increase to high speed to assist cooling. When the top cover is replaced at the end of the operation,
the chassis fans return to normal speed.
Removing the Memory Carrier Assembly Cover
To remove the memory carrier assembly cover, follow these steps:
1. Unlock the cover release lever. Turn the cam 90 degrees counterclockwise.
2. Pull up on the cover release lever to disengage the top cover and memory carrier assembly
cover from the chassis (Figure 17).
Installing Additional Components 47
