7. Grasp the handholds on the assembly carrier tray with both hands and carefully slide the
assembly out of the chassis (Figure 72).

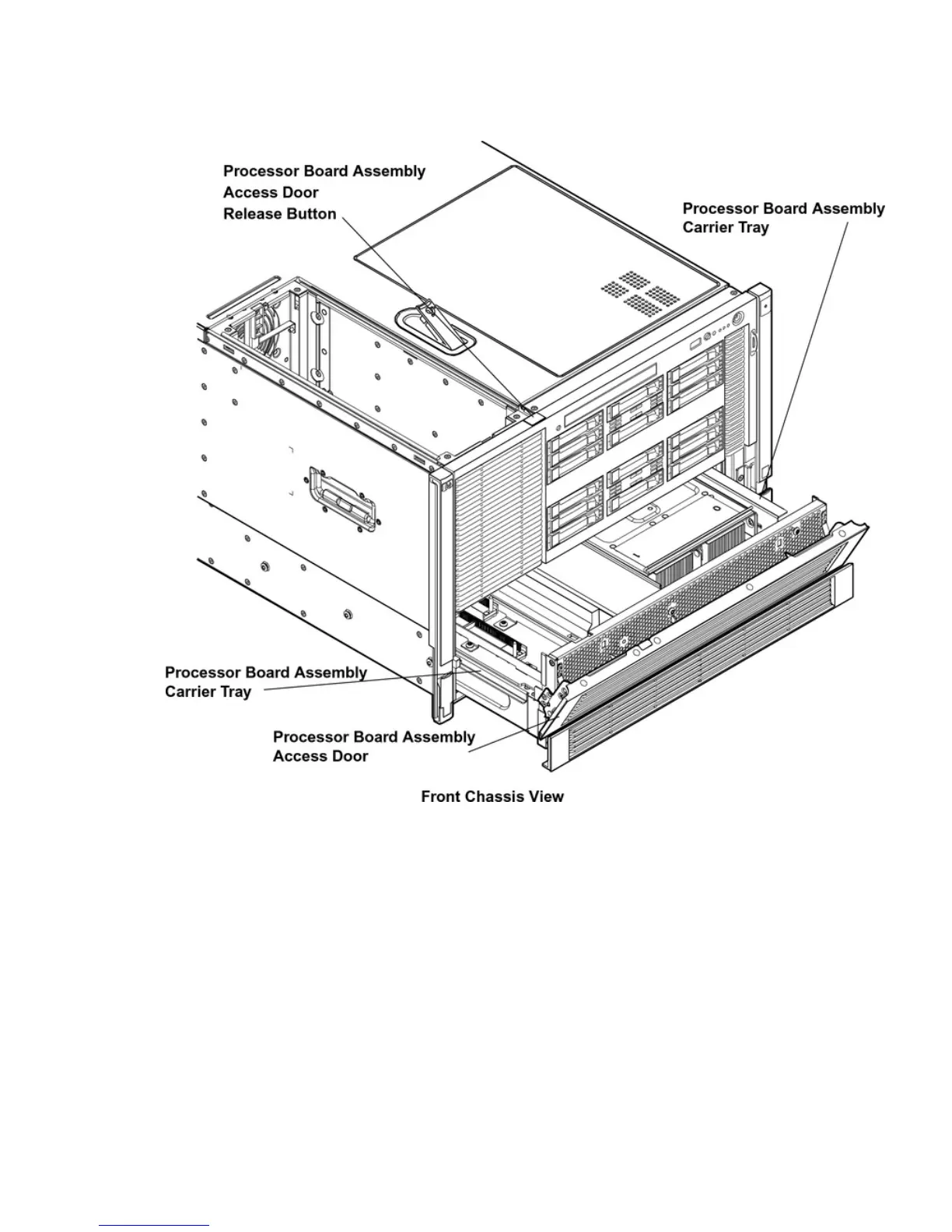

Figure 72 Removing the Processor Board Assembly
Replacing the Processor Board Assembly
To replace the processor board assembly, follow these steps:
1. Align the edges of the processor board assembly with the assembly guides in the chassis.
2. Slide the processor board assembly into the chassis until it begins to seat into the socket located
on the midplane board.
3. Push the processor board access door upward until it locks into position.
4. Replace the memory carrier assembly. See “Replacing the Memory Carrier Assembly”
(page 204).
5. Replace the memory carrier assembly cover and latch the top cover release lever closed. See
“Replacing the Memory Carrier Assembly Cover” (page 180).
6. If rack installed, slide the server completely into the rack. See “Inserting the Server into the
Rack” (page 177).
7. Reconnect the power cables and power on the server. See “Powering On the Server” (page 90).
Removing and Replacing the Processor Board Assembly 215
