HP Integrity rx6600 Service Manual

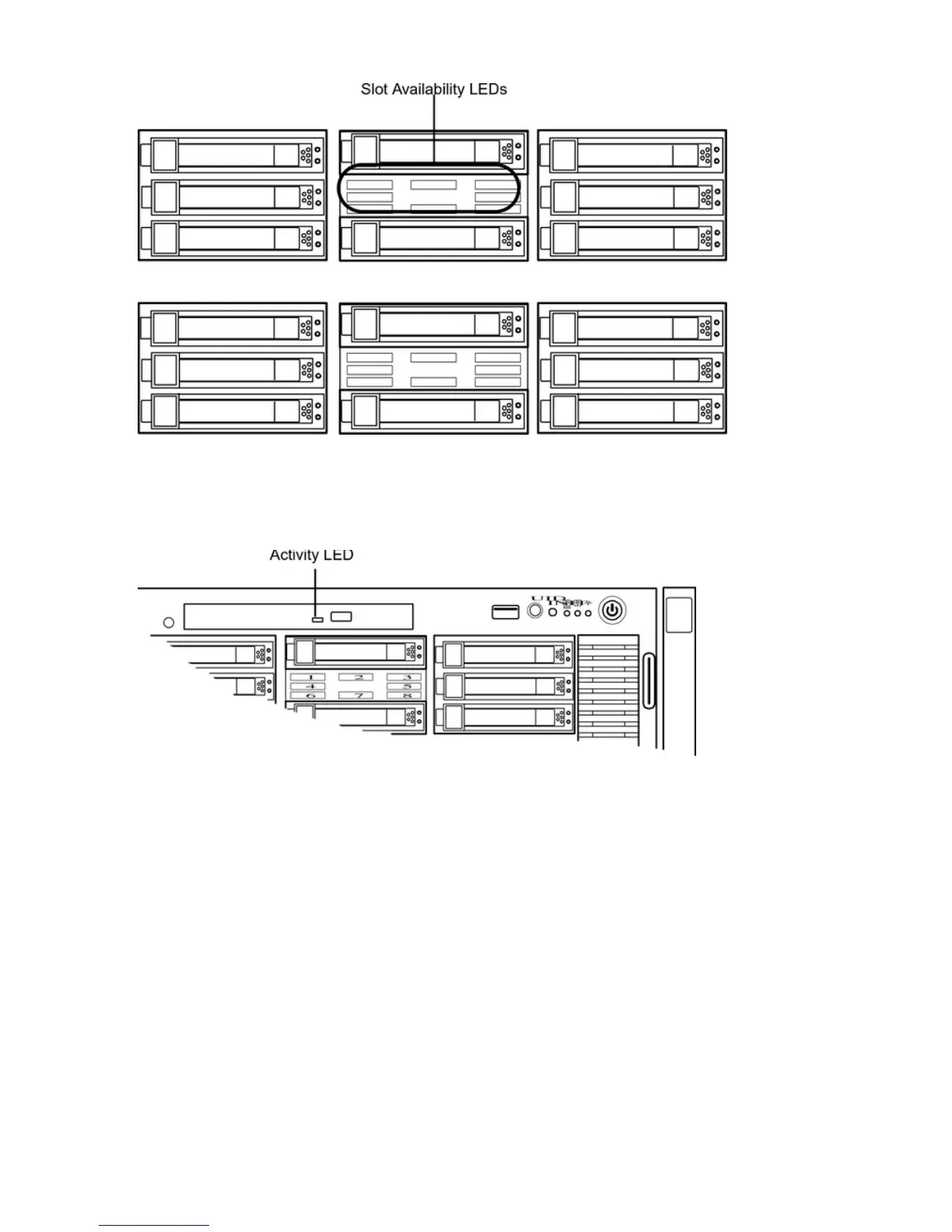

Figure 10 Hot-Pluggable Disk Drive Slot Availability LEDs
DVD Drive
The server has one DVD drive or one DVD-RW drive. This device has one activity LED.
Figure 11 DVD Drive
Diagnostic Panel
The diagnostics panel provides a single location to view the LEDs that provide location information
for internal system components that have a detectable failure. The LEDs illuminate solid amber only
when a failure occurs and otherwise do not illuminate. The LEDs are visible through the diagnostic
panel on the outside of the top cover. The diagnostics panel is oriented similar to the layout of the
components in the system. Diagnostic LEDs are provided for each internal serviceable component
in the system, including all DIMMs.
Figure 12 shows the diagnostic panel label and LEDs.
32 Overview

HP Integrity rx6600 Specifications

General

Processor	Intel Itanium 2
Network	Integrated dual Gigabit Ethernet
Form Factor	5U rack-mountable
Power Supply	Redundant hot-plug power supplies
Processor Speed	1.6 GHz
Memory Type	DDR2 ECC Registered
RAID Support	Yes
Operating System	HP-UX, Linux, Windows Server
