HP Integrity rx6600 Service Manual

Memory
The server DIMMS are seated on memory boards that are enclosed in an extractable memory
carrier assembly.

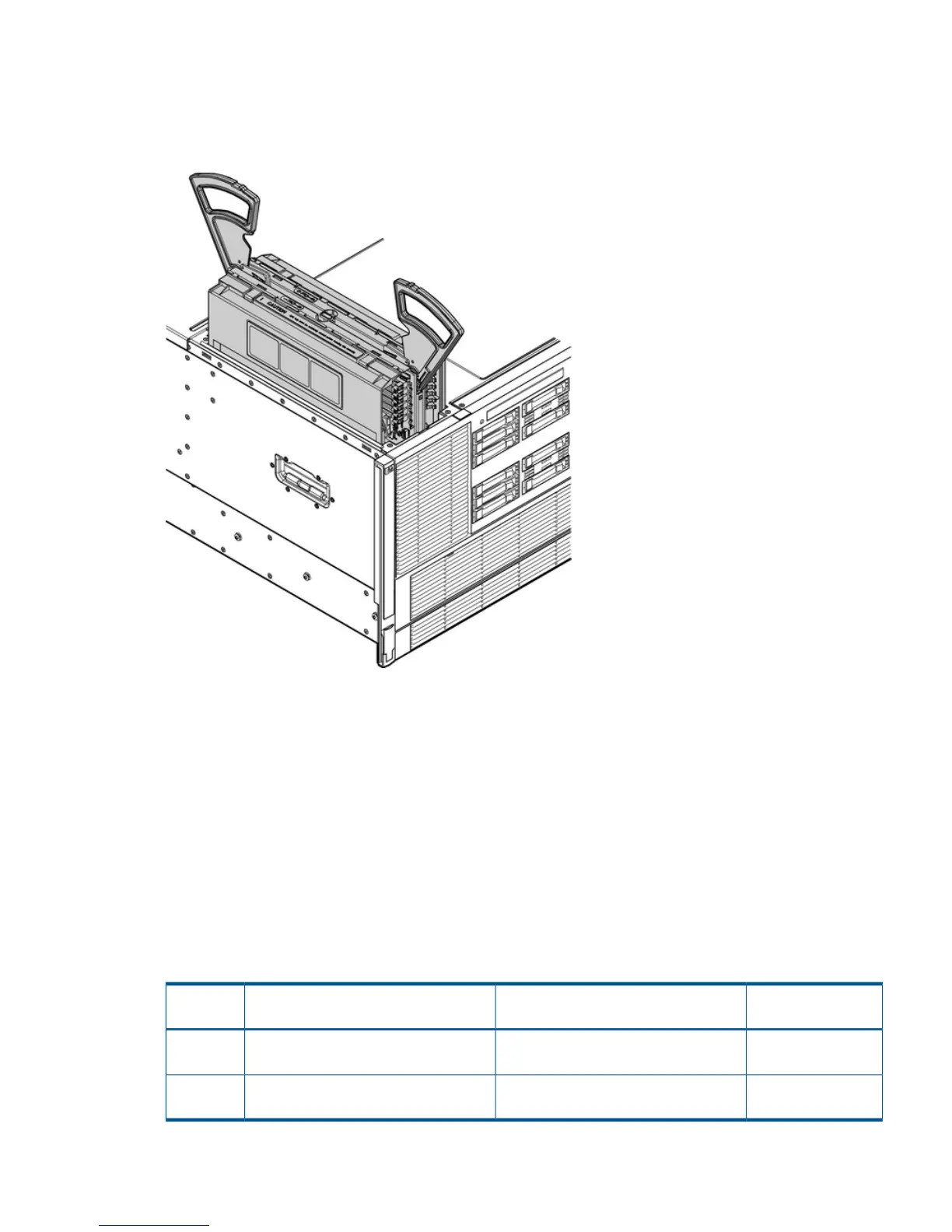

Figure 3 Memory Carrier Assembly
The memory boards plug directly into sockets on the processor board when the memory carrier
assembly is fully seated.
The server supports the following DIMM sizes:
• 512 MB
• 1 GB
• 2 GB
• 4 GB
• 8 GB
Table 4 lists the memory carrier configurations, the minimum and maximum memory for each
configuration.
Table 4 Memory Carrier Configurations
Maximum
Configuration
Minimum ConfigurationMemory BoardsMemory
Carrier
192 GB (six quads:
24x8-GB DIMMs)
2 GB (one quad: four 512-MB DIMMS)One 24-DIMM memory multiplexer
(mux)-based board
24-DIMM
384 GB (12 quads:
48x8-GB DIMMs)
2 GB (one quad: four 512-MB DIMMS)Two 24-DIMM memory multiplexer
(mux)-based boards
48-DIMM
Server Subsystems 21

HP Integrity rx6600 Specifications

General

Processor	Intel Itanium 2
Network	Integrated dual Gigabit Ethernet
Form Factor	5U rack-mountable
Power Supply	Redundant hot-plug power supplies
Processor Speed	1.6 GHz
Memory Type	DDR2 ECC Registered
RAID Support	Yes
Operating System	HP-UX, Linux, Windows Server
