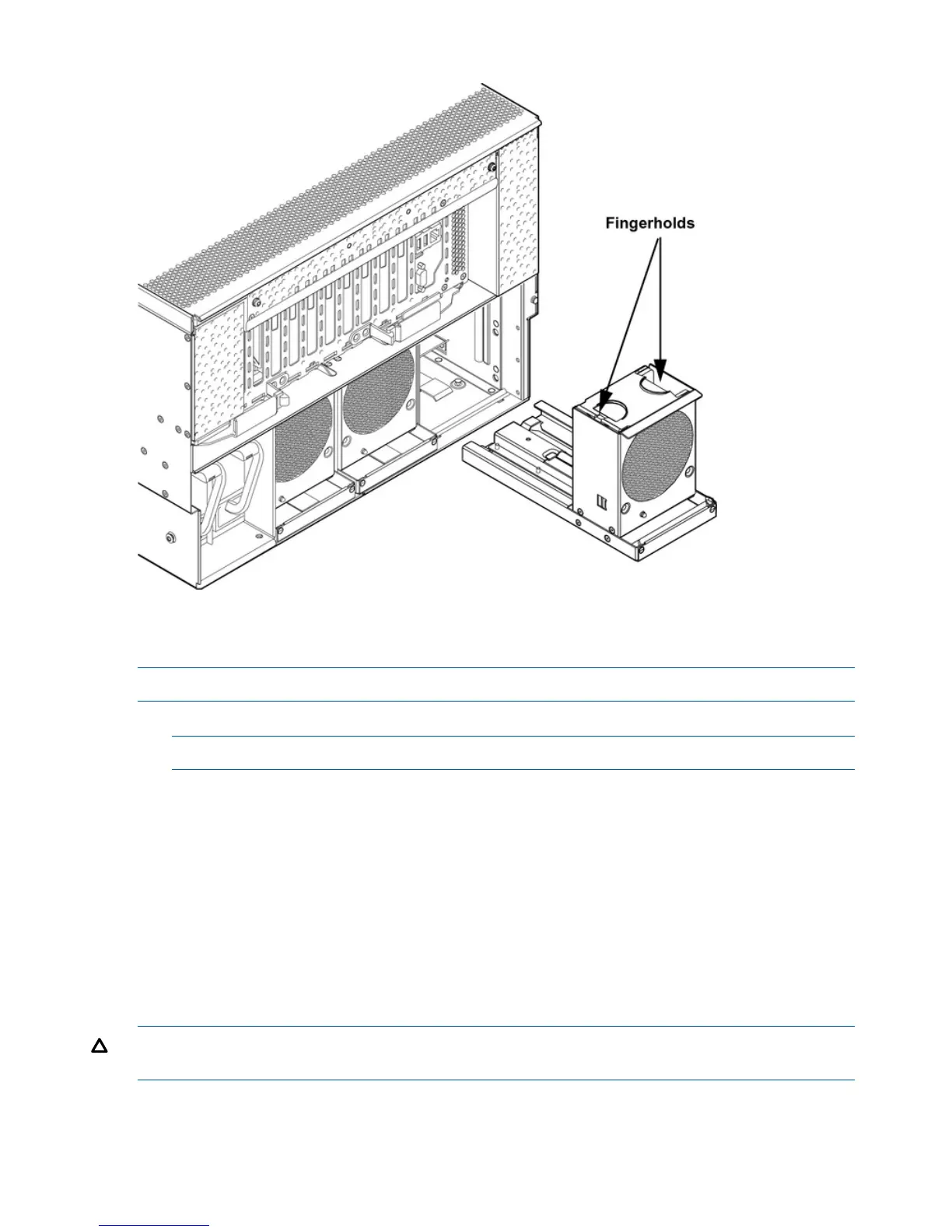

Figure 59 Removing and Replacing a Rear External Fan Unit
Replacing a Rear External Hot-Swappable Chassis Fan Unit
To replace a rear external hot-swappable chassis fan unit, follow these steps:
NOTE: The fan unit is keyed to fit into the fan housing in one orientation only.
1. Push the fan unit firmly into the fan housing until it is flush with the top of the fan housing.
NOTE: It can take up to ten seconds after installation for the new fan LED to turn off.
2. Push the fan housing unit toward the front of the chassis until it clicks into place.
3. Check the diagnostic LED that corresponds to the replaced fan unit.
• When the fan is functioning normally, the LED is off
• When the fan fails, the LED is lit
Removing and Replacing a Hot-Swappable Power Supply
The server can have one or two hot-swappable power supplies. These power supplies are located
at the rear of the server. The supported configuration of the server requires a minimum of one
power supply. You can install or replace a hot-swappable power supply using the procedures in
this section when system power is on or off.
CAUTION: Observe all ESD safety precautions before removing or replacing a power supply.
Failure to follow ESD safety precautions can result in damage to the server.
184 Removing and Replacing Server Components
