HP Integrity rx6600 Service Manual

4. Lift the memory carrier assembly out of the chassis (Figure 24).
NOTE: To avoid damage to the handles, HP recommends rotating the handles inward and
snapping them into place when servicing the system DIMMs or any time the carrier is out of
the chassis. Before replacing the memory carrier, press the button to release the extraction
handles. Use the handles to replace the memory carrier into the chassis.

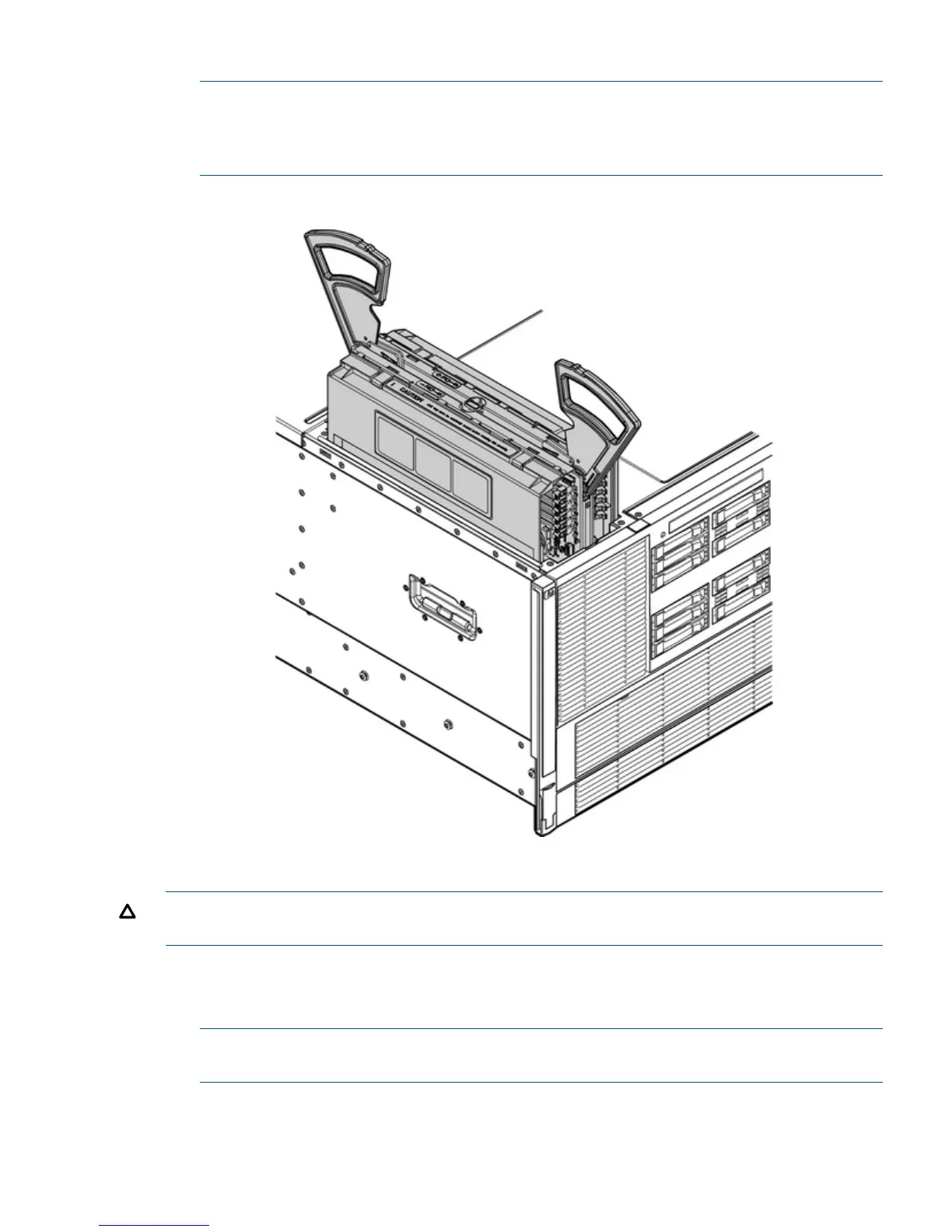

Figure 24 Removing and Replacing the Memory Carrier Assembly
Replacing the Memory Carrier Assembly
CAUTION: Ensure the processor board assembly is fully seated before you replace the memory
carrier assembly. The processor board assembly access door must be flush with the front bezel.
To replace the memory carrier assembly, follow these steps:
1. Ensure that the extraction handles are positioned in the outward, unlocked position.
2. Align the memory carrier assembly with the front and rear chassis guide slots.
NOTE: Assembly side 0 is on the left, and assembly side 1 is on the right as viewed from
the front of the chassis.
Installing Additional Components 57

HP Integrity rx6600 Specifications

General

Processor	Intel Itanium 2
Network	Integrated dual Gigabit Ethernet
Form Factor	5U rack-mountable
Power Supply	Redundant hot-plug power supplies
Processor Speed	1.6 GHz
Memory Type	DDR2 ECC Registered
RAID Support	Yes
Operating System	HP-UX, Linux, Windows Server
