Installing a PCI/PCI-X/PCIe Card

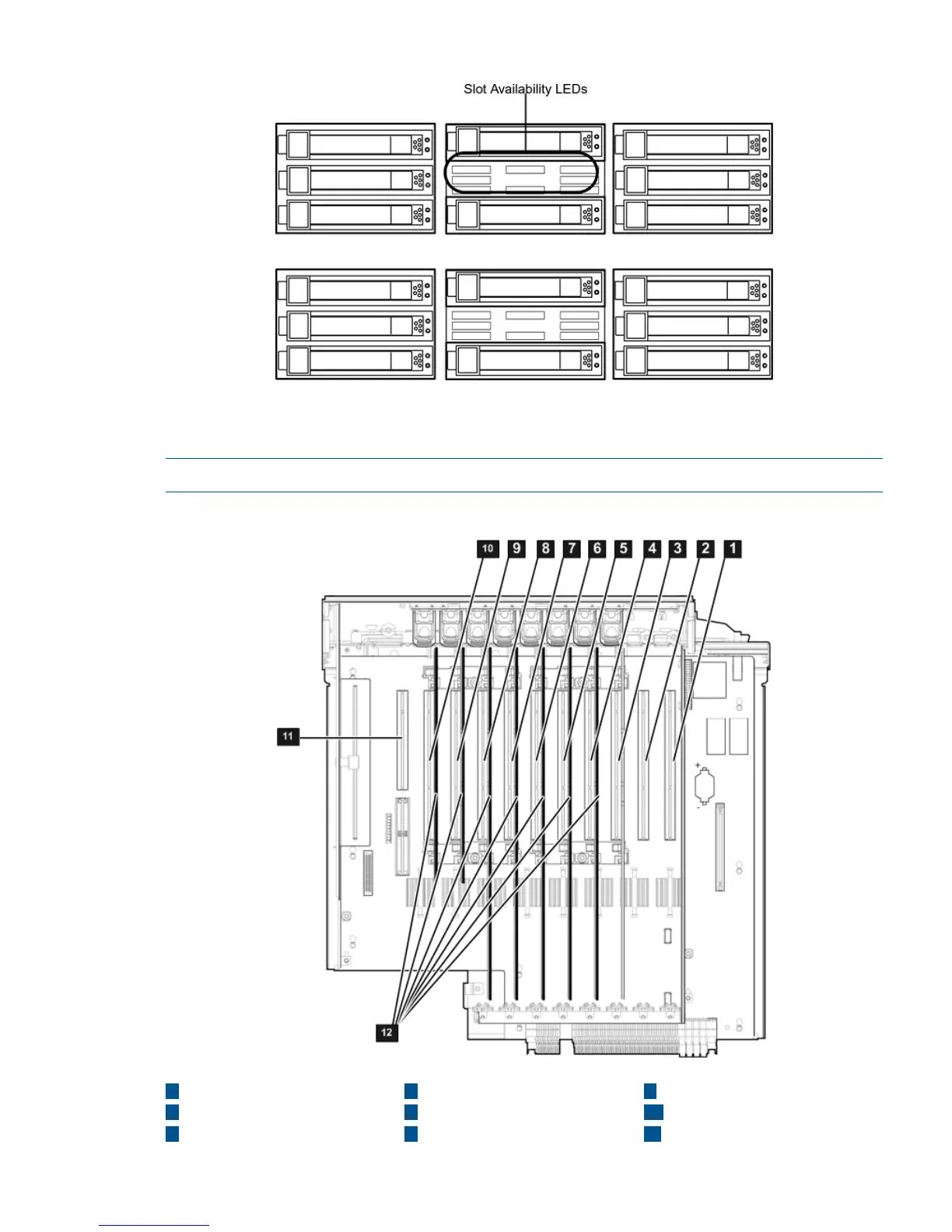

Figure 23 shows the PCI/PCI-X/PCIe slot identification and card divider locations.
NOTE: Slots one through eight are full-length; slots nine and ten are short-length.
Figure 23 PCI/PCI-X Slot Identification and Card Divider Locations
9
Slot 9
5
Slot 5
1
Slot 1
2
Slot 2
10
Slot 10
6
Slot 6
7
Slot 7
3
Slot 3
11
Core I/O Board Slot
