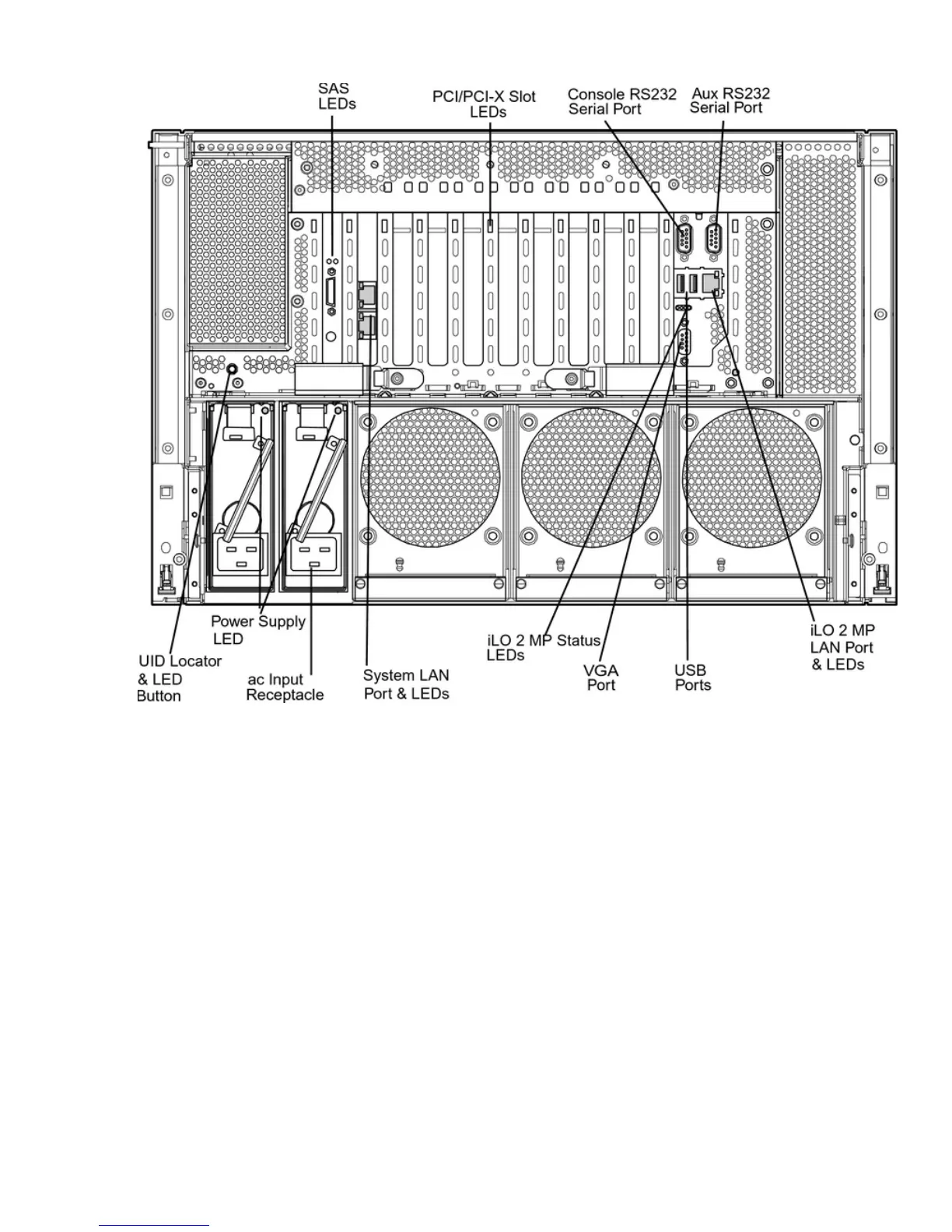

Figure 13 Rear Panel Control, Port, and LED Locations
iLO 2 MP
The server contains an iLO 2 MP on the core I/O board that enables local and remote management
of the server. As long as AC power is present, whether at standby or full power, the iLO 2 MP can
function.
Figure 14 shows the controls, ports, and LEDs on the core I/O board. The figure is oriented vertically
to match the orientation of the core I/O board.
34 Overview
