HP Integrity rx6600 Service Manual

8. Release the DIMM from the slot.
a. Identify the DIMM you want to remove on the memory board.
b. Push the appropriate extraction levers found on either side of the DIMM slot outward to
the open position (Figure 71).
9. Remove the DIMM from the slot.

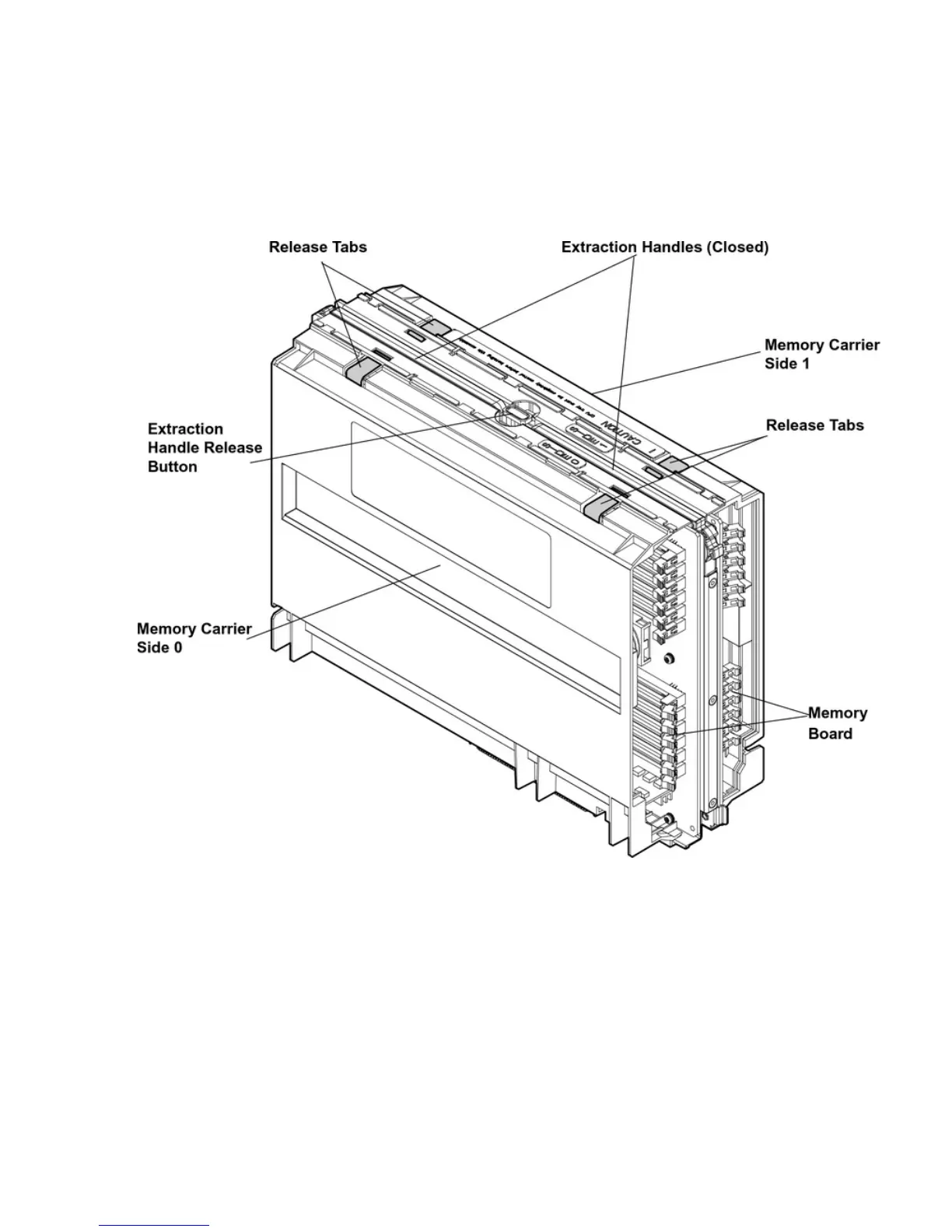

Figure 68 shows the memory carrier assembly removed from the chassis.
Figure 68 Memory Carrier Assembly
The following figure shows the memory carrier assembly with the side cover open.
206 Removing and Replacing Server Components

HP Integrity rx6600 Specifications

General

Processor	Intel Itanium 2
Network	Integrated dual Gigabit Ethernet
Form Factor	5U rack-mountable
Power Supply	Redundant hot-plug power supplies
Processor Speed	1.6 GHz
Memory Type	DDR2 ECC Registered
RAID Support	Yes
Operating System	HP-UX, Linux, Windows Server
