HP Integrity rx6600 Service Manual

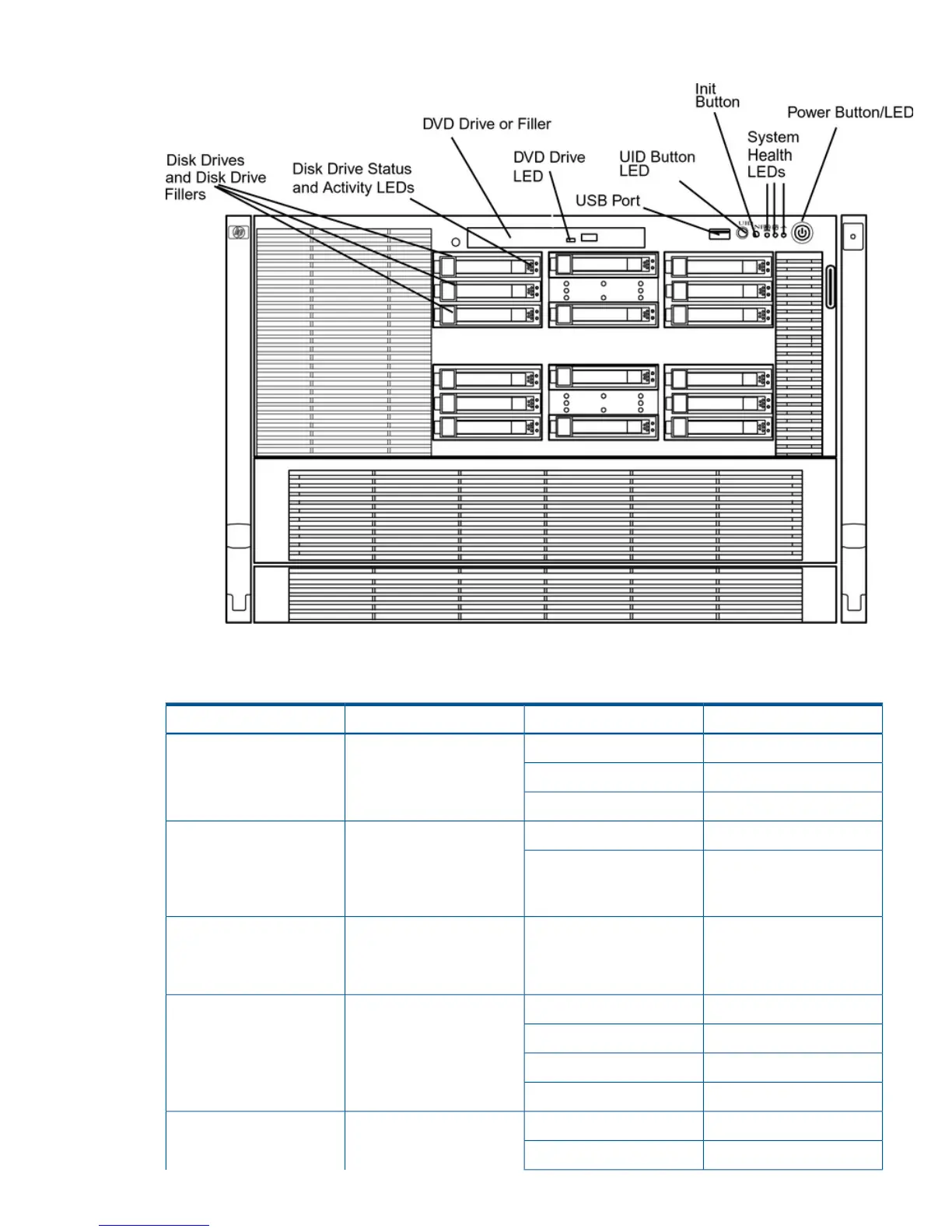

Figure 7 Front Panel Control, Port, and LED Locations
Table 7 lists the front panel controls and LED states.
Table 7 Front Panel Controls and LEDs
StatusStatesFunctionLED
No AC powerOffManually powers the server
on and off.
Power Button Full power is onGreen
Standby power is onYellow
UID button is not activatedOffHelps locate a particular
server within a rack of
UID Button
UID button is activatedBlue
servers. You can remotely
activate this button using
various system utilities.
1
——
Resets the system;
irrecoverably halts all system
Init Button
processing and I/O activity
and restarts the server.
System is offOffProvides information about
the system status.
System Health LED
Normal operationGreen
WarningFlashing amber
System faultFlashing red
System is offOffIndicates the status of
internal serviceable
Internal Health LED
System health is goodGreen
Controls, Ports, and LEDs 29

HP Integrity rx6600 Specifications

General

Processor	Intel Itanium 2
Network	Integrated dual Gigabit Ethernet
Form Factor	5U rack-mountable
Power Supply	Redundant hot-plug power supplies
Processor Speed	1.6 GHz
Memory Type	DDR2 ECC Registered
RAID Support	Yes
Operating System	HP-UX, Linux, Windows Server
