HP Integrity rx6600 Service Manual

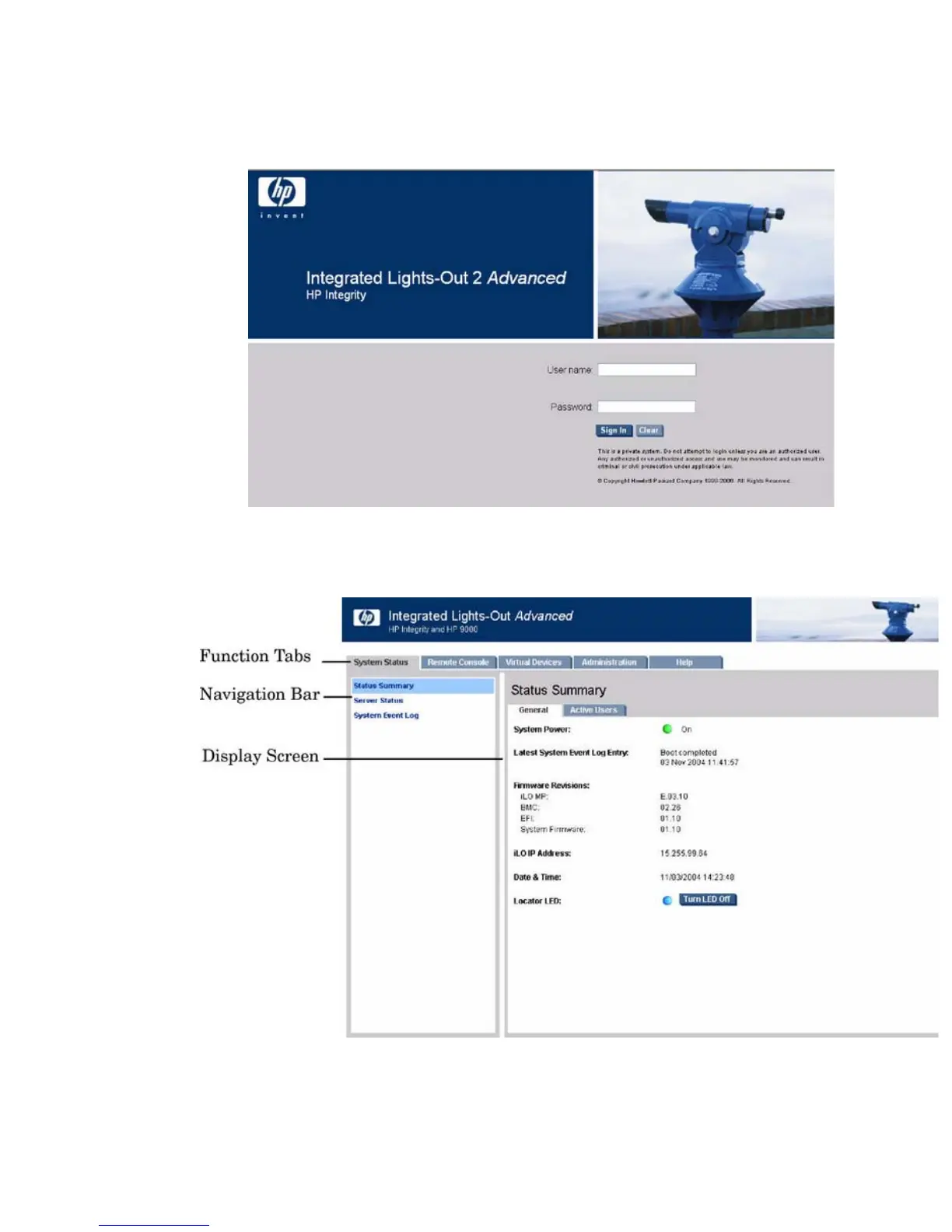

To interact with the iLO 2 MP through the web GUI, follow these steps:
1. Open a web browser and enter the host name or the IP address for the iLO 2 MP.
2. Log in using your user account name and password at the login page. (Figure 38).
Figure 38 Web Login Page
3. Click Sign In. The Status Summary page (Figure 39) displays after login.
Figure 39 Status Summary Page
1. Select the web interface functions by clicking the Function tabs at the top of the page. Each
function lists options in the Navigation Bar on the left side of the page.
2. Click an option link to display data in the Display screen; and click Refresh to update the
display.
Accessing the Host Console 87

HP Integrity rx6600 Specifications

General

Processor	Intel Itanium 2
Network	Integrated dual Gigabit Ethernet
Form Factor	5U rack-mountable
Power Supply	Redundant hot-plug power supplies
Processor Speed	1.6 GHz
Memory Type	DDR2 ECC Registered
RAID Support	Yes
Operating System	HP-UX, Linux, Windows Server
