11-42
Port-Based Virtual LANs (VLANs) and GVRP
GVRP
Menu: Viewing and Configuring GVRP
1. From the Main Menu, select:
2. Switch Configuration . . .
8. VLAN Menu . . .
1. VLAN Support

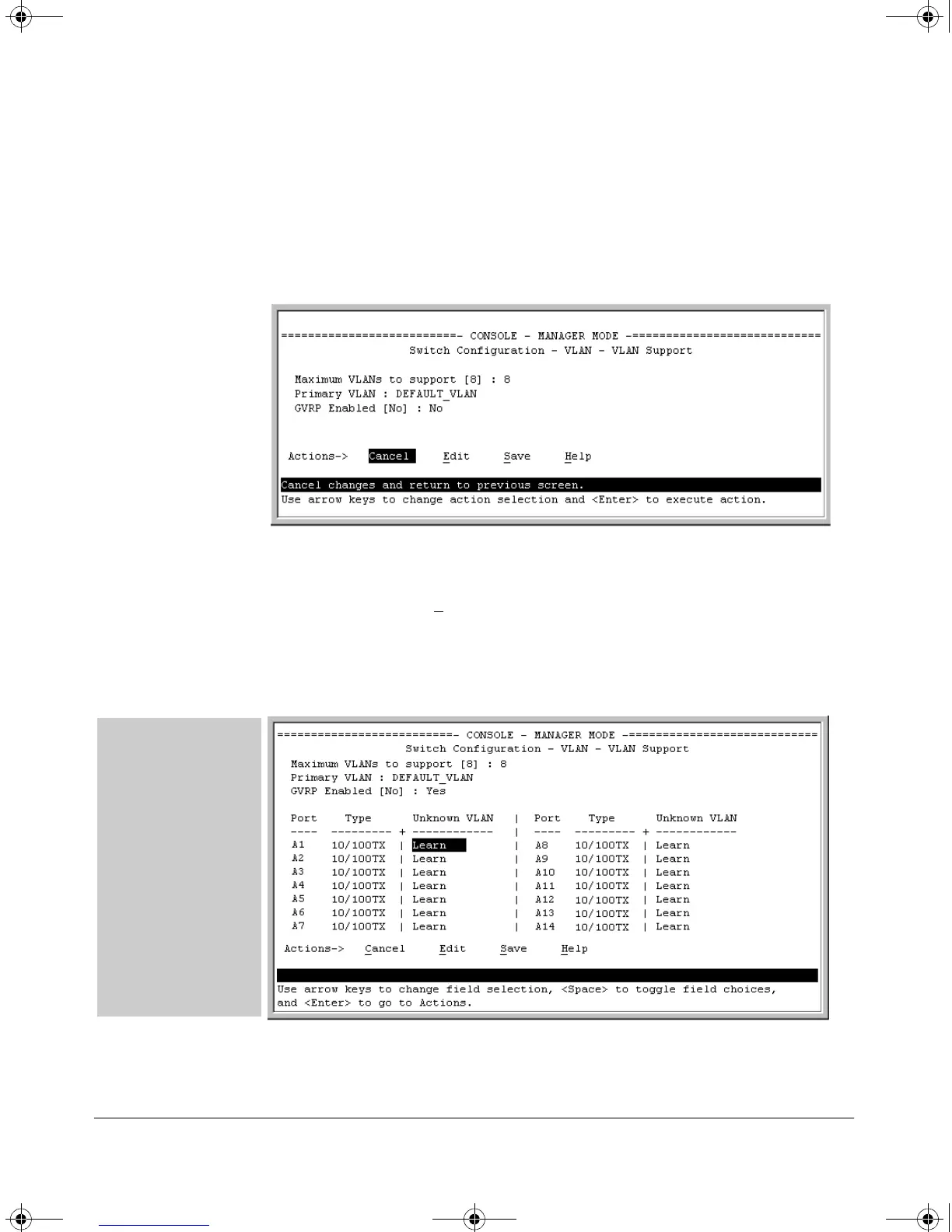

Figure 11-27. The VLAN Support Screen (Default Configuration)
2. Do the following to enable GVRP and display the Unknown VLAN fields:
a. Press (for E
dit).
b. Use [v] to move the cursor to the GVRP Enabled field.
c. Press the Space bar to select Yes.
d. Press [v] again to display the Unknown VLAN fields.
Figure 11-28. Example Showing Default Settings for Handling Advertisements
The Unknown VLAN
fields enable you to
configure each port to:
– Learn - Dynamically
join any advertised
VLAN and advertise
all VLANs learned
through other ports.
– Block - Do not
dynamically join any
VLAN, but still
advertise all VLANs
learned through other
ports.
– Disable - Ignore and
drop all incoming
advertisements and
do not transmit any
advertisements.
