13-17
802.1w Rapid Spanning Tree Protocol (RSTP) and 802.1d Spanning Tree Protocol (STP)
Configuring Rapid Reconfiguration Spanning Tree (RSTP)

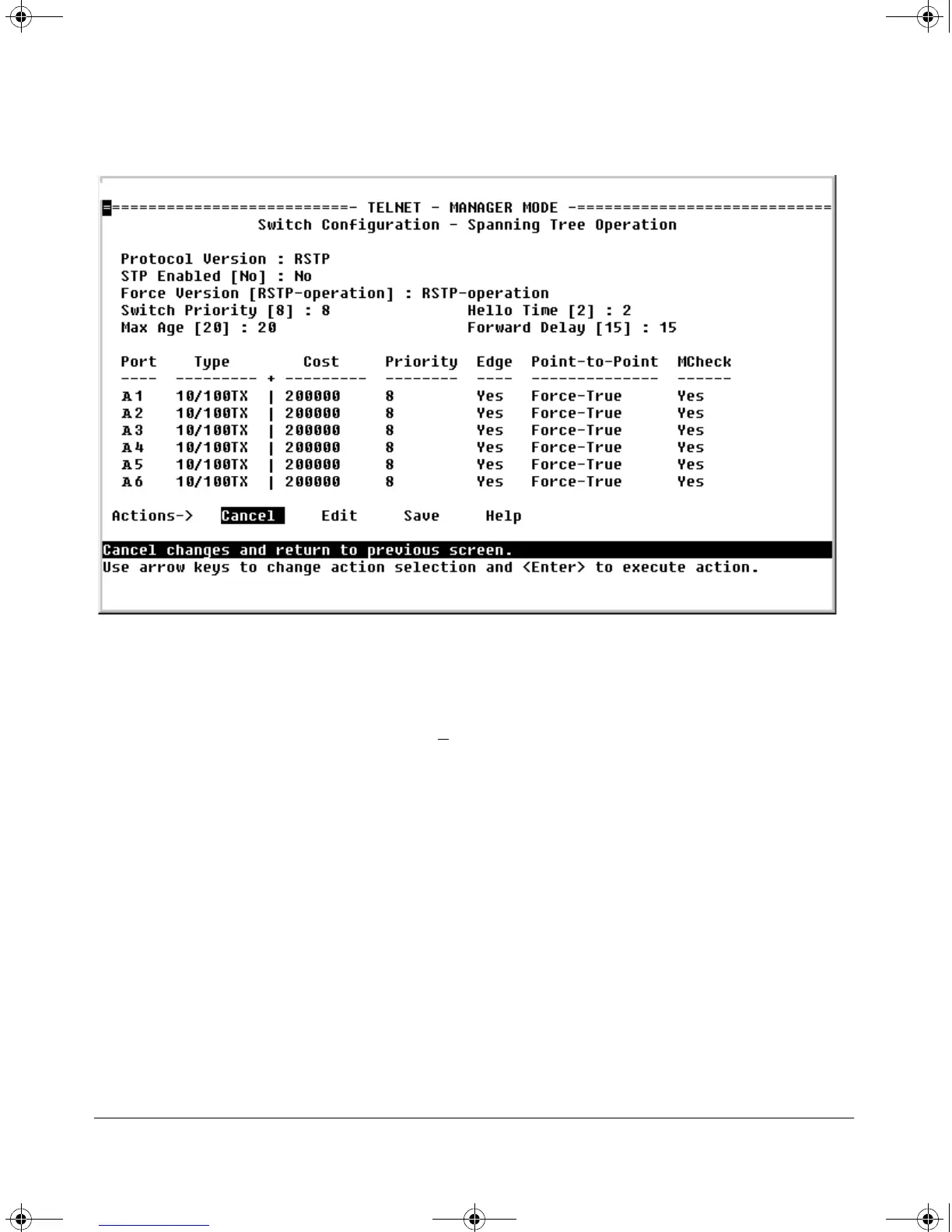

Figure 13-4. Example of the RSTP Configuration Screen
7. Press the key or use the arrow keys to go to the next parameter you
want to change, then type in the new value or press the Space bar to select
a value. (To get help on this screen, press to select the Actions –> line,
then press , for H
elp, to display the online help.)
8. Repeat step 6 for each additional parameter you want to change.
Please see “Optimizing the RSTP Configuration” on page 13-9 for recom-
mendations on configuring RSTP to make it operate the most efficiently.
9. When you are finished editing parameters, press to return to the
Actions –> line and press to save the currently displayed spanning tree
settings and return to the Main Menu.
10. If you have changed the Protocol Version, in step 1, reboot the switch now
by selecting
6. Reboot Switch
!Software.book Page 17 Thursday, October 10, 2002 6:10 PM
