802.1w Rapid Spanning Tree Protocol (RSTP) and 802.1d Spanning Tree Protocol (STP)

802.1p Spanning-Tree Protocol (STP)

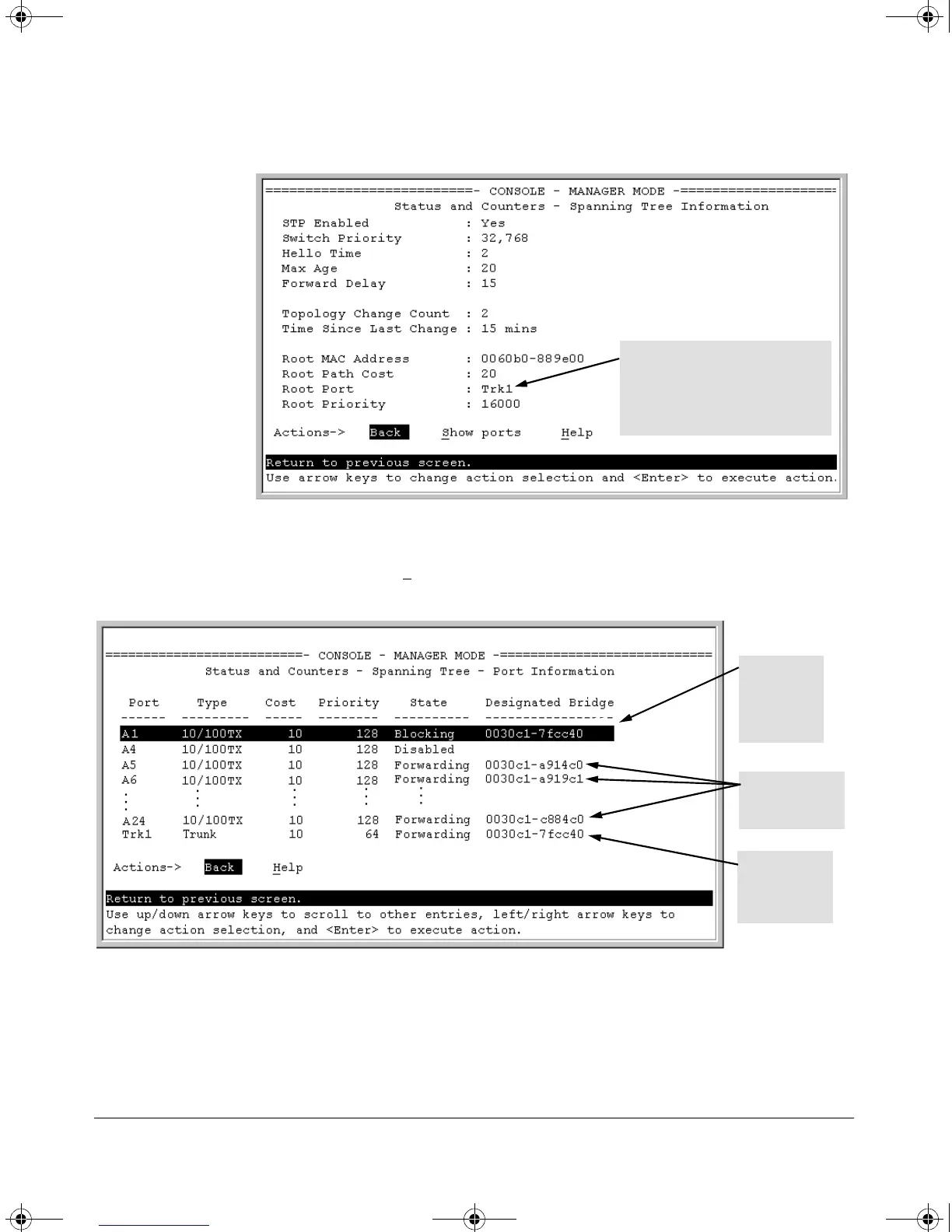

Figure 13-18. Example of STP Status with Trk1 (Trunk 1) as the Path to the STP Root

Device

2. Press (for Show ports) to display the status of individual ports.

Figure 13-19. Example of STP Port Status with Two Redundant STP Links

Indicates which uplink is the

active path to the STP root device.

Note: A switch using fast-uplink

STP must never be the STP root

device.

Links to PC or

Workstation

End Nodes

Redundan

t STP Link

in (Fast)

Uplink

Mode

Redundant

STP Link in

(Fast) Uplink

Mode
