HP V1910 User Manual

109

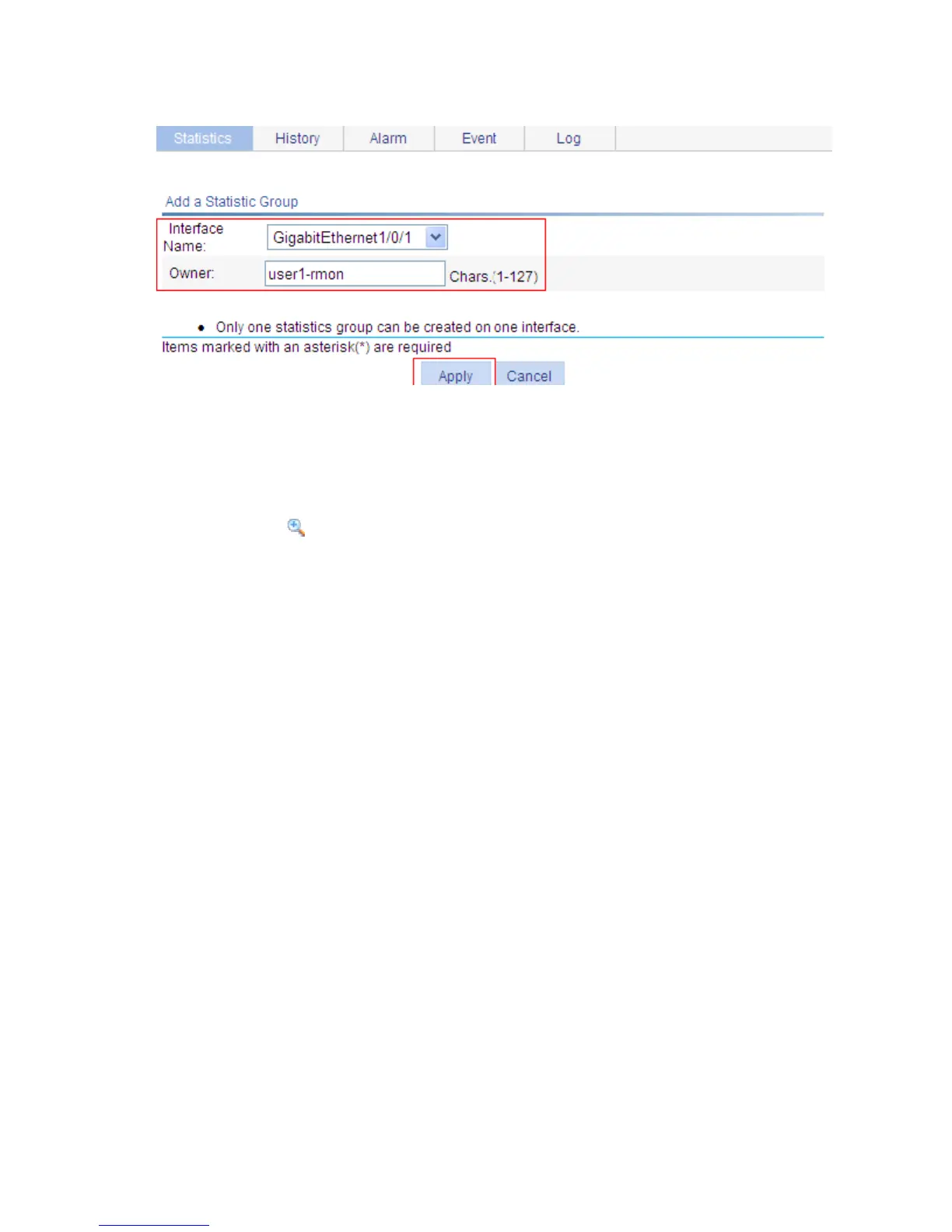

a. Add a statistics entry
 Select GigabitEthernet1/0/1 from the Interface Name drop-down box.
 Type user1-rmon in the text box of Owner.
 Click Apply.
# Display RMON statistics for interface Ethernet 1/0/1.
 Click the icon
corresponding to GigabitEthernet 1/0/1.
 You can view the information as shown in b.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
