Displaying device summary of a stack

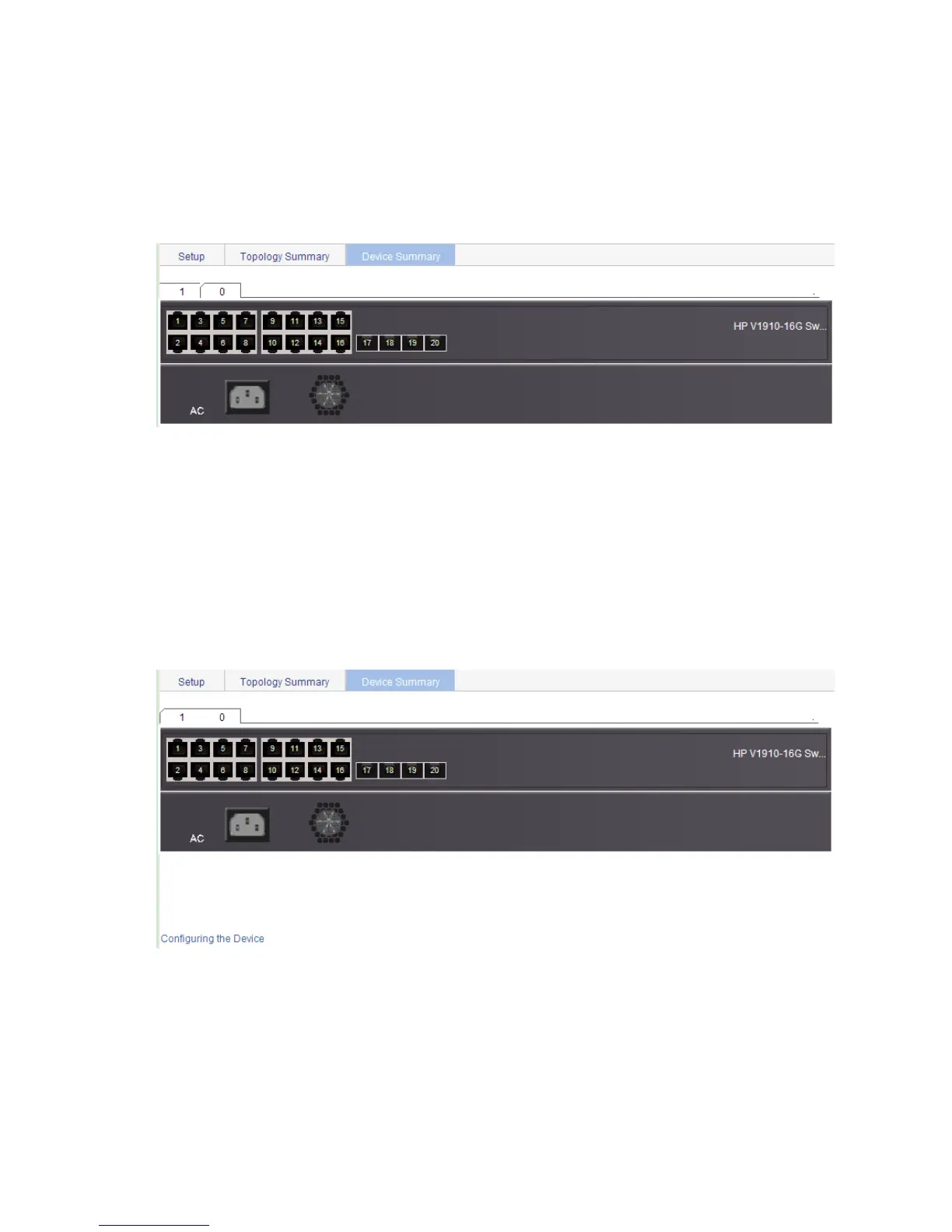

Select IRF from the navigation tree and click the Device Summary tab to enter the page shown in a. On this
page, you can view interfaces and power socket layout on the panel of each stack member by clicking the
tab of the corresponding member switch.
a. Device summary (the master switch)
Return to Stack management configuration task list.
Logging into a member switch from the master switch
Select IRF from the navigation tree, click the Device Summary tab, and click the tab of a member switch to
enter the page shown in a.
Click the Configuring the Device hyperlink, you can log on to the web interface of the member switch to
manage and maintain the member switch directly.
a. Device summary (a member switch)
Return to Stack management configuration task list.
Stack configuration example
Network requirements
As shown in a, Switch A, Switch B, Switch C, and Switch D are connected with one another.
