HP V1910 User Manual

86
After selecting a testing type, you need to select a port on which you want to perform the loopback test from
the chassis front panel.
After that, click Test to start the loopback test, and you can see the test result in the Result box, as shown in
a.

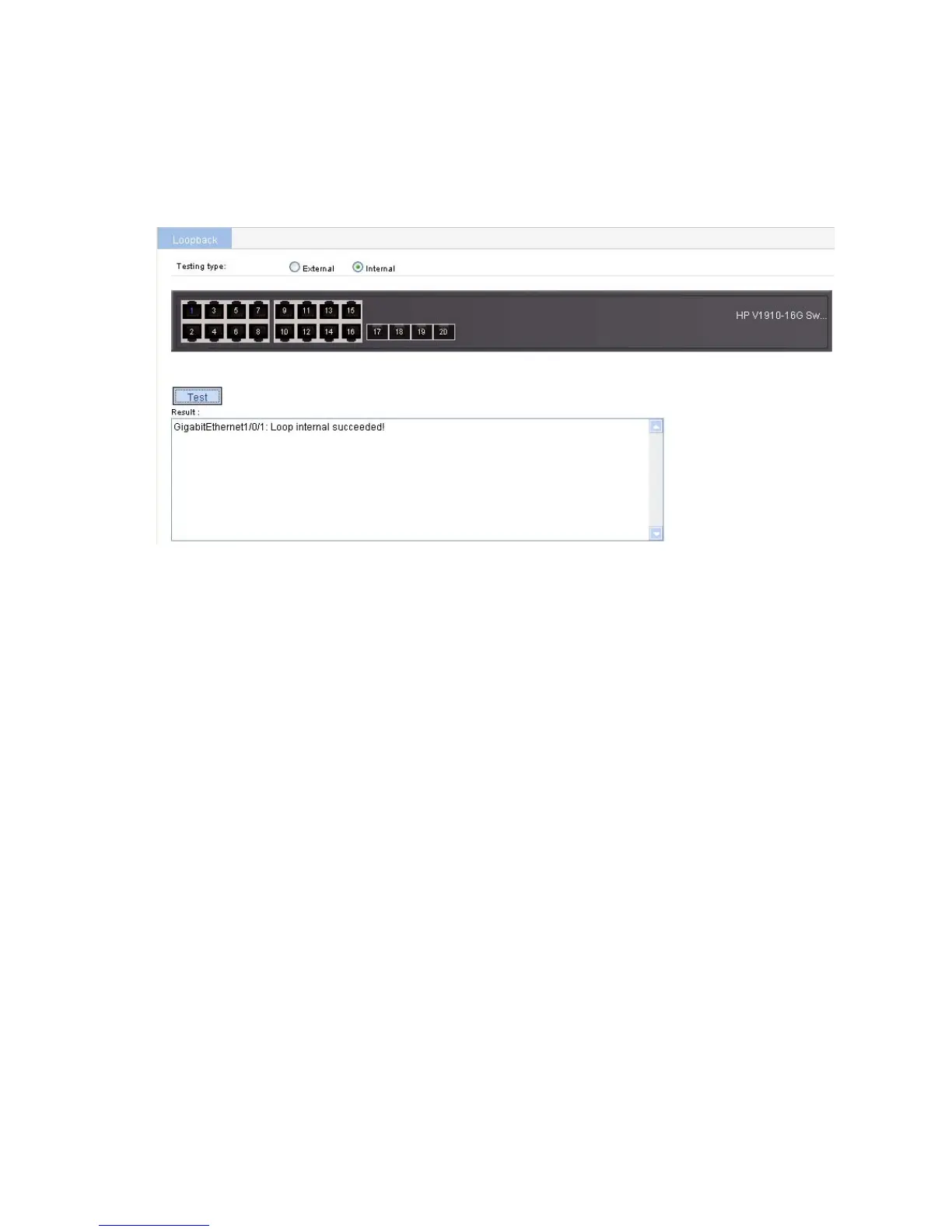

a. Loopback test result
Configuration guidelines
Note the following when performing a loopback test:
 You can perform an internal loopback test but not an external loopback test on a port that is physically
down, but you can perform neither test on a port that is manually shut down.
 The system does not allow Rate, Duplex, Cable Type and Port Status configuration on a port under a
loopback test.
 An Ethernet port works in full duplex mode when the loopback test is performed, and restores its
original duplex mode after the loopback test.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
