Configuration examples
Local port mirroring configuration example
Network requirements
 Department 1 accesses Switch C through GigabitEthernet 1/0/1.
 Department 2 accesses Switch C through GigabitEthernet 1/0/2.
 Server is connected to GigabitEthernet 1/0/3 of Switch C.
Configure port mirroring to monitor the bidirectional traffic of Department 1 and Department 2 on the
server.
To satisfy the requirement through local port mirroring, perform the following configuration on Switch C:
 Configure GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 as mirroring ports.
 Configure GigabitEthernet 1/0/3 as the monitor port.

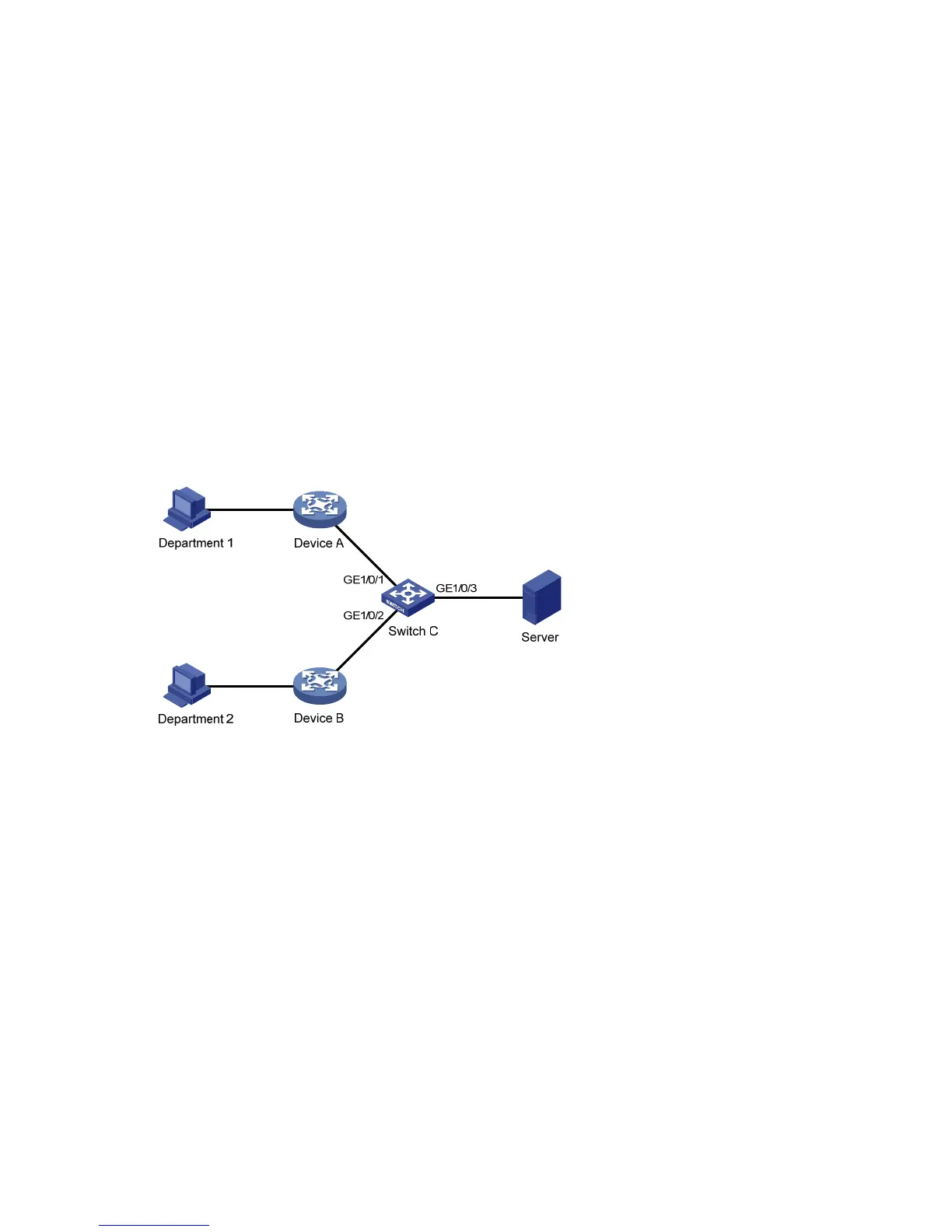

a. Network diagram for local port mirroring configuration
Configuration procedure
# Create a local mirroring group.
Select Device  Port Mirroring from the navigation tree and click Create to enter the page to create a local
mirroring group, as shown in a.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
