HP V1910 User Manual

108

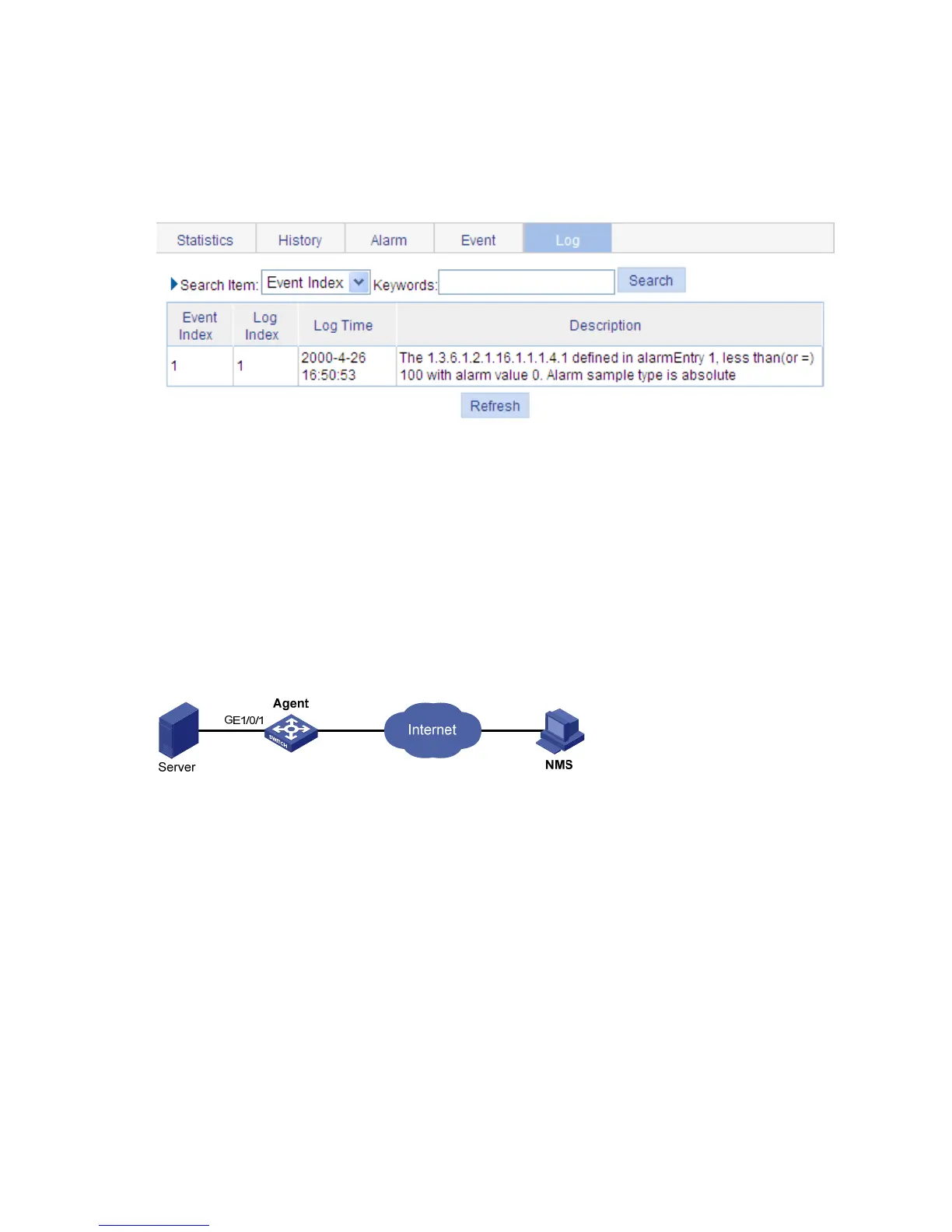

Displaying RMON event logs
Select Device  RMON from the navigation tree and click the Log tab to enter the page, as shown in a,
which displays log information for all event entries.
a. Log
Return to Display RMON running status.
RMON configuration example
Network requirements
As shown in a, Agent is connected to a remote NMS across the Internet. Create an entry in the RMON
Ethernet statistics table to gather statistics on Ethernet 1/0/1, and perform corresponding configurations so
that the system will log the event when the number of bytes received on the interface exceed the specified
threshold.
a. Network diagram for RMON
Configuration procedure
# Configure RMON to gather statistics for interface Ethernet 1/0/1.
 Select Device  RMON from the navigation tree to enter the page of the Statistics tab. Click Add.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
