DHCP relay agent configuration example
Network requirements
As shown in a, VLAN-interface 1 on the DHCP relay agent (Switch A) connects to the network where DHCP
clients reside. The IP address of VLAN-interface 1 is 10.10.1.1/24 and the IP address of VLAN-interface 2
is 10.1.1.1/24. VLAN-interface 2 is connected to the DHCP server whose IP address is 10.1.1.1/24.
The switch forwards messages between DHCP clients and the DHCP server.

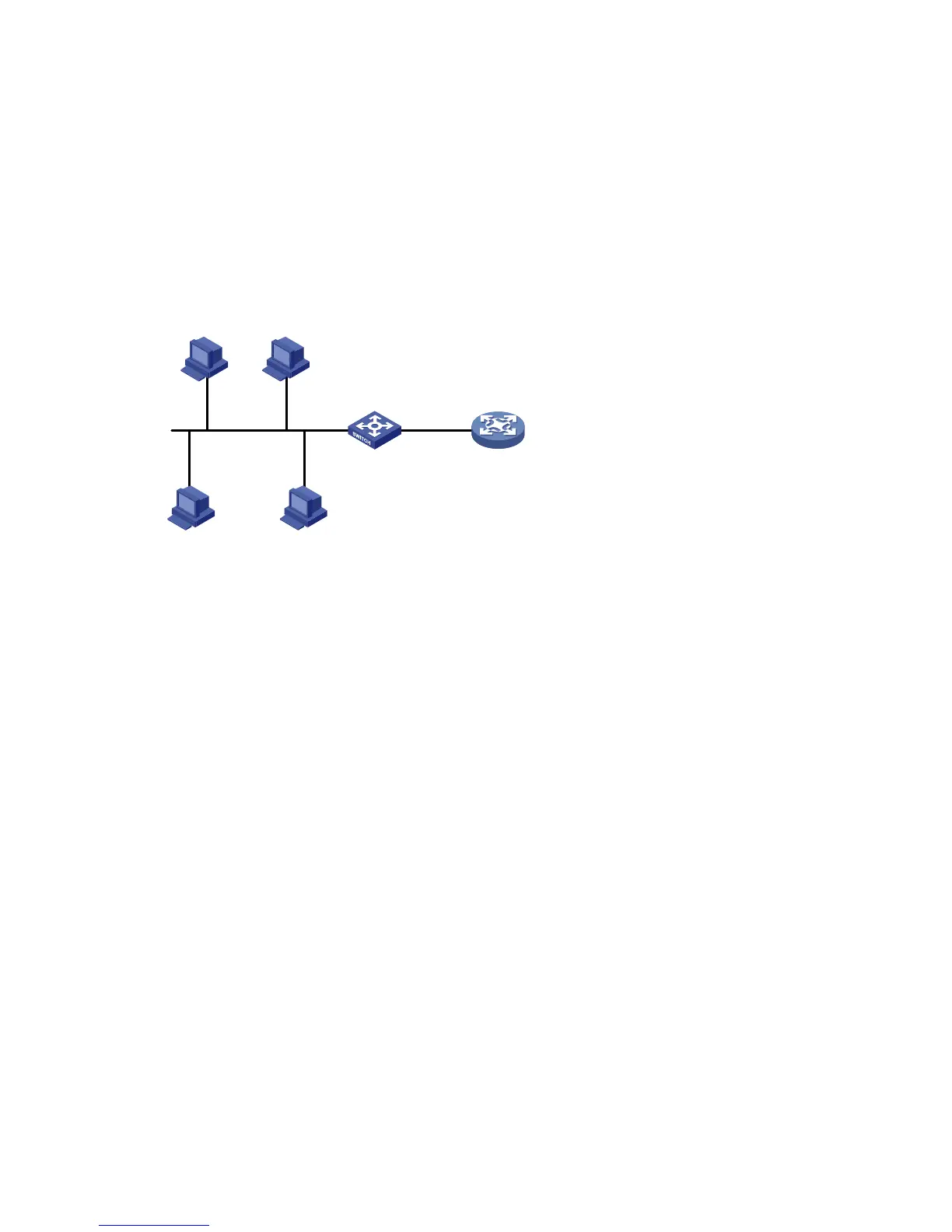

a. Network diagram for DHCP relay agent configuration
DHCP server
Switch A
DHCP relay agent
DHCP client DHCP client
DHCP clientDHCP client
Vlan-int2
10.1.1.2/24
Vlan-int1
10.10.1.1/24
Configuration procedure
Table 83 Specify IP addresses for interfaces (omitted)
Table 84 Configure the DHCP relay agent
# Enable DHCP.
 Select Network  DHCP from the navigation tree to enter the default DHCP Relay page. Perform the
following operations, as shown in b.
