HP V1910 User Manual

327
EAP termination

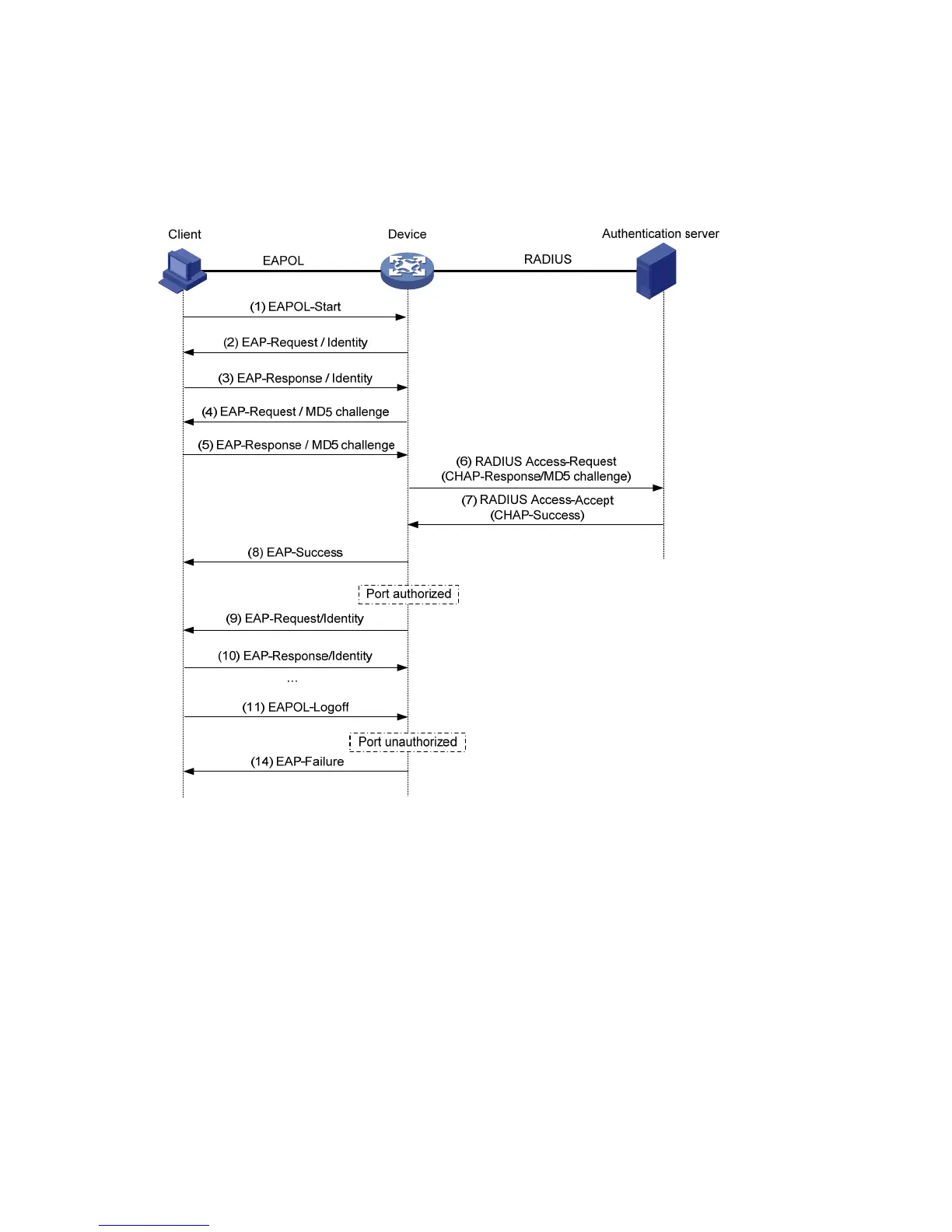

a shows the basic 802.1X authentication procedure in EAP termination mode, assuming that CHAP
authentication is used.
a. 802.1X authentication procedure in EAP termination mode
In EAP termination mode, it is the network access device rather than the authentication server generates an
MD5 challenge for password encryption (see Step 4). The network access device then sends the MD5
challenge together with the username and encrypted password in a standard RADIUS packet to the RADIUS
server.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
