Click Modify Port to enter the page for configuring the mirroring group ports, as shown in d.

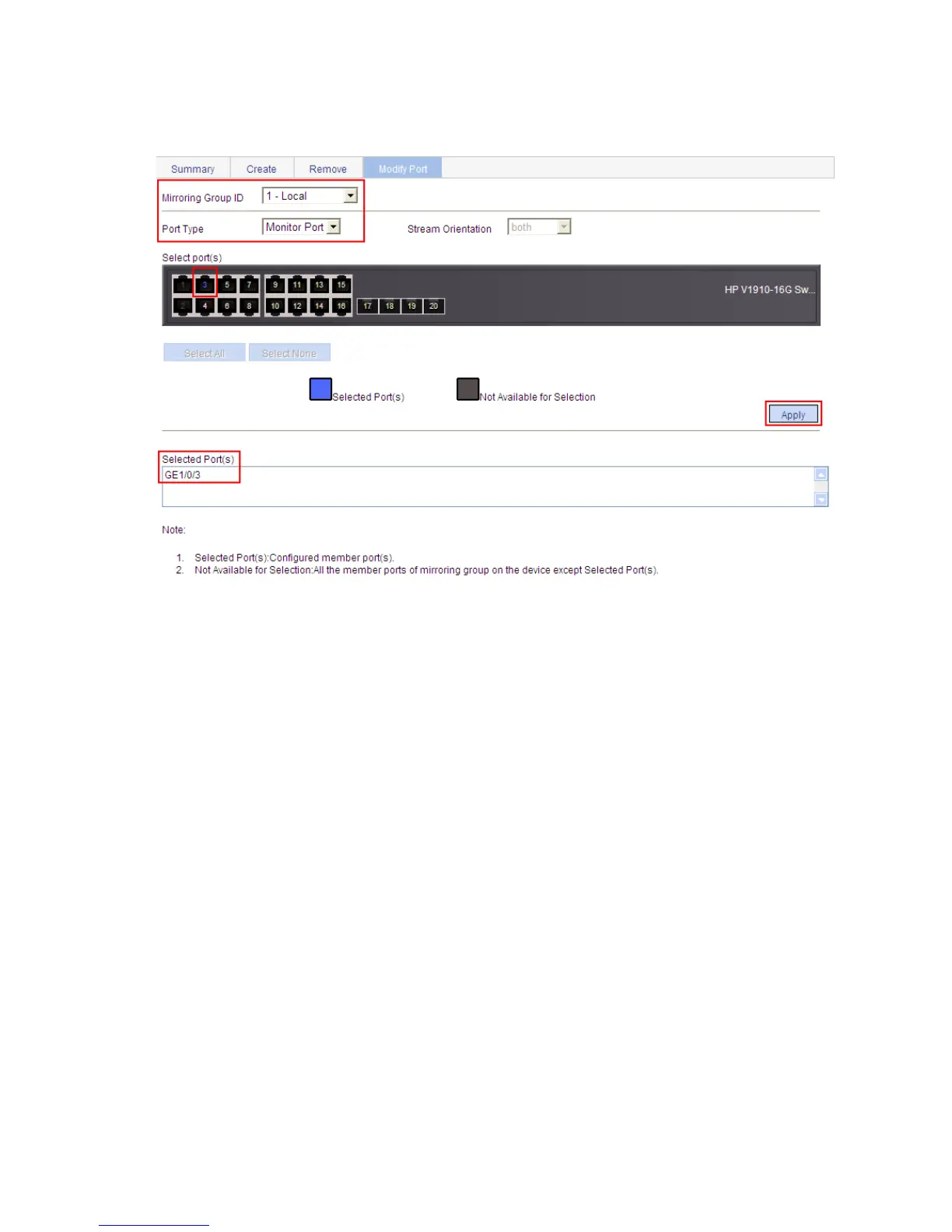

d. Configure the monitor port

 Select 1 – Local in the Mirroring Group ID drop-down list.

 Select Monitor Port in the Port Type drop-down list.

 Select GigabitEthernet 1/0/3 on the chassis front panel.

 Click Apply. A configuration progress dialog box appears.

 After the configuration process is complete, click Close in the dialog box.

Configuration guidelines

Consider the following points during local port mirroring configuration:

 To ensure operation of your device, do not enable STP, MSTP, or RSTP on the monitor port.

 You can configure multiple mirroring ports but only one monitor port for a local mirroring group.
