Authorized IP configuration example
Authorized IP configuration example
Network requirements
In a, configure Switch to deny Telnet and HTTP requests from Host A, and permit Telnet and HTTP requests
from Host B.

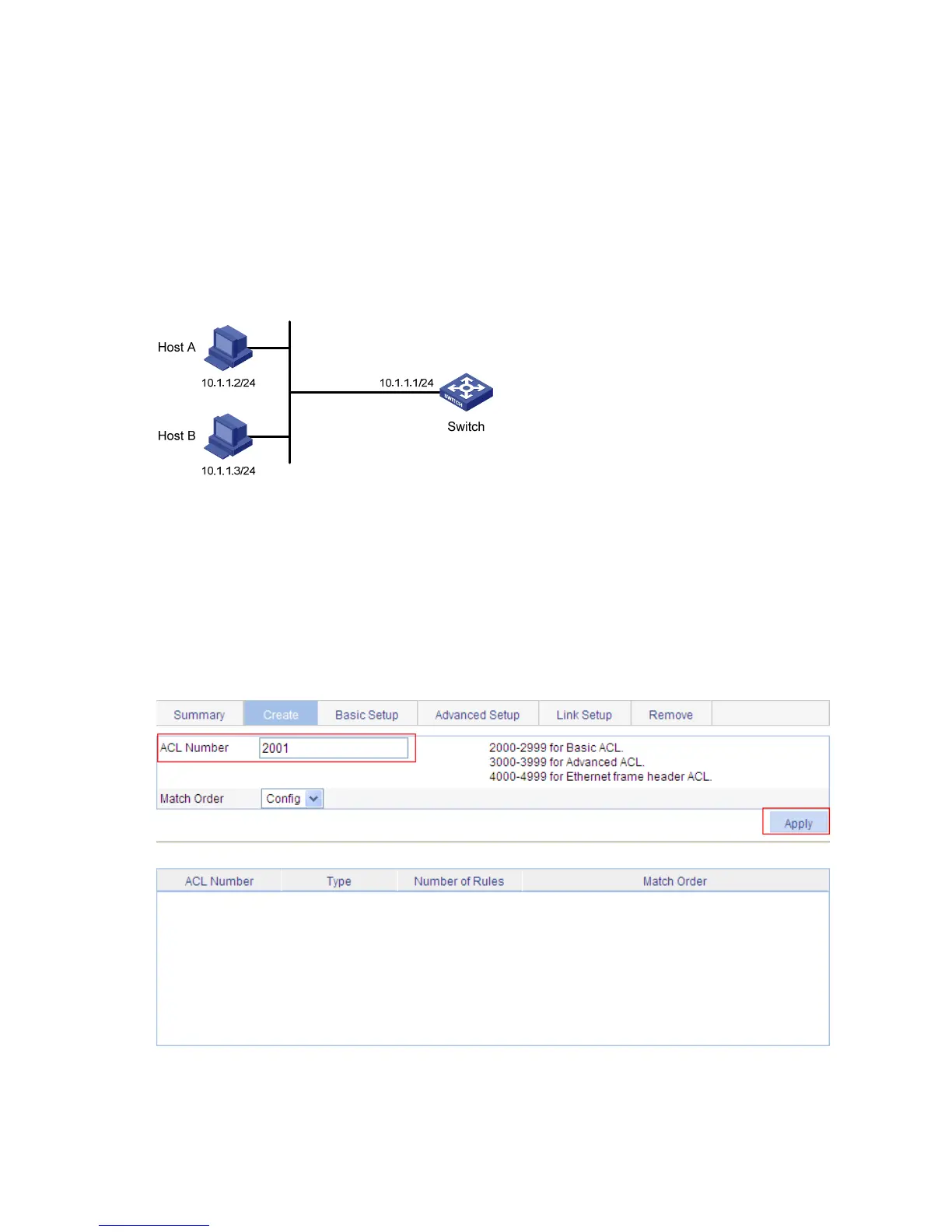

a. Network diagram for authorized IP
Configuration procedure
# Create an ACL.
 Select QoS  ACL IPv4 from the navigation tree and then click the Create tab to enter the ACL
configuration page shown in a.
 Type 2001 for ACL Number.
 Click Apply.
a. Create an ACL
# Configure an ACL rule to permit Host B.
 Click the Basic Setup tab to enter the page shown in b.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
