HP V1910 User Manual

244

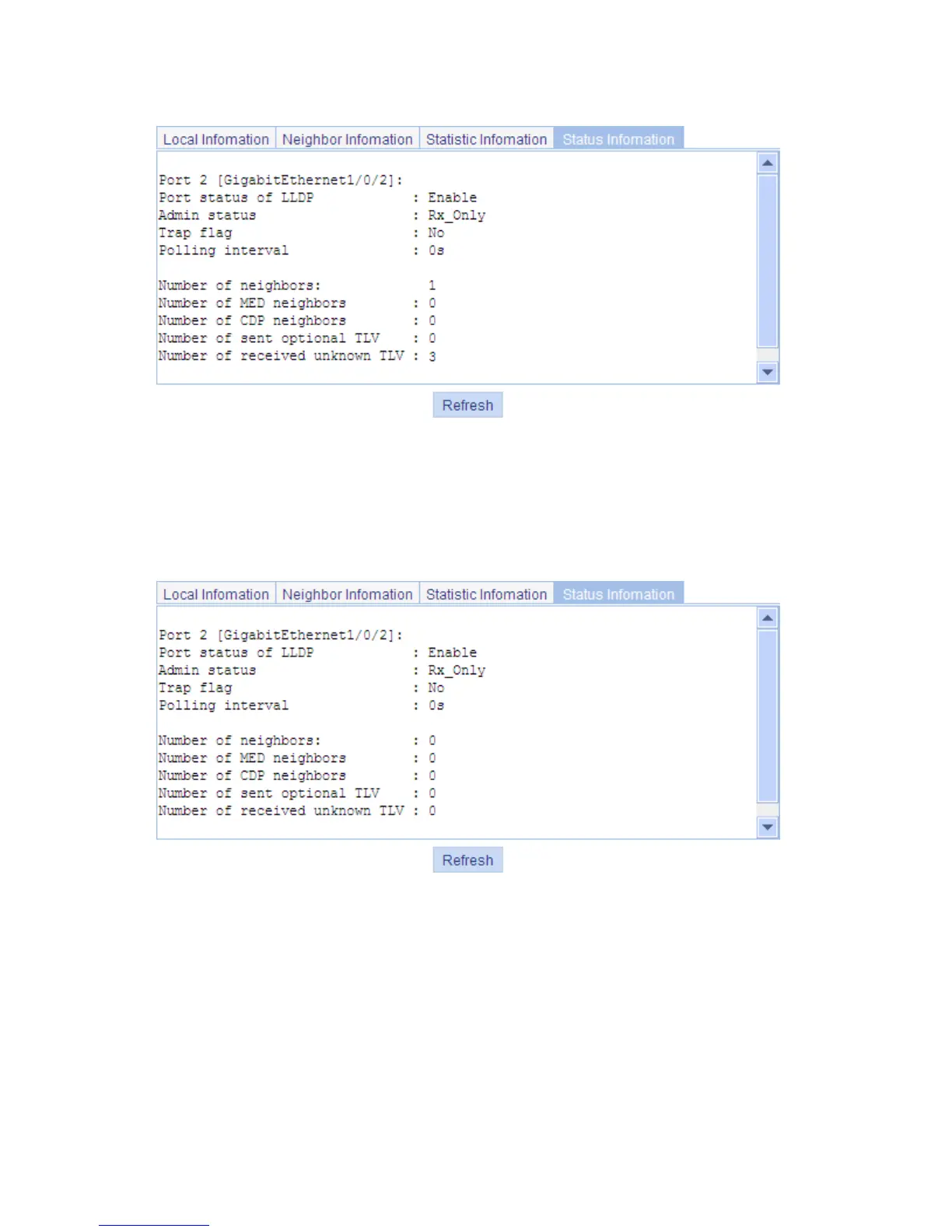

a. The Status Information tab
# Tear down the link between Switch A and Switch B.
# Display the status information of port GigabitEthernet 1/0/2 on Switch A.
 Click Refresh. The updated status information of port GigabitEthernet 1/0/2 shows that no neighbor
device is connected to the port, as shown in b.
b. The Status Information tab displaying the updated port status information
CDP-compatible LLDP configuration example
Network requirements
As shown in a, port GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 of Switch A are each connected to
a Cisco IP phone.
On Switch A, configure VLAN 2 as a voice VLAN and enable CDP compatibility of LLDP to allow the Cisco
IP phones to automatically configure the voice VLAN, confining their voice traffic within the voice VLAN to
be isolated from other types of traffic.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
