HP V1910 User Manual

462
 To disable the non-standard PD detection for all PSEs, click Disable All.
Displaying information about PSE and PoE ports
Select PoE  PoE from the navigation tree to enter the page of the Summary tab. The upper part of the page
displays the PSE summary. Click a port on the chassis front panel, and the configuration and power
information are displayed in the lower part of the page, as shown in a.

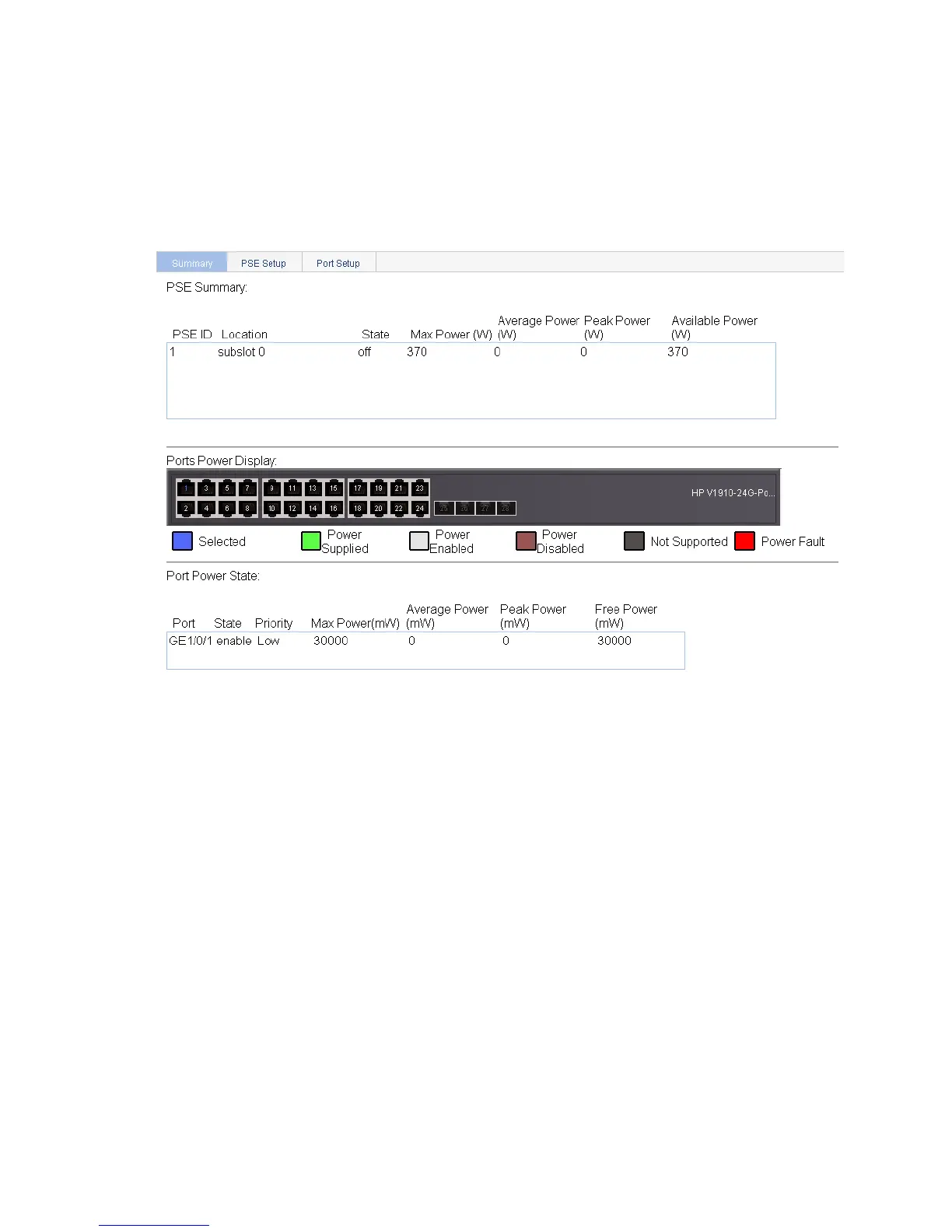

a. PoE summary (with GigabitEthernet 1/0/1 selected)
PoE configuration example
Network requirements
 As shown in a, GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 are connected to IP telephones.
 GigabitEthernet 1/0/11 is connected to the AP whose maximum power does not exceed 9000
milliwatts.
 The IP telephones have a higher power supply priority than the AP, so the PSE supplies power to IP
telephones first when the PSE power is overloaded.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
