HP V1910 User Manual

176
MAC address configuration example
Network requirements
Use the web-based NMS to configure the MAC address table of the device. It is required to add a static
MAC address 00e0-fc35-dc71 under GigabitEthernet 1/0/1 in VLAN 1.
Configuration procedure
# Create a static MAC address entry.

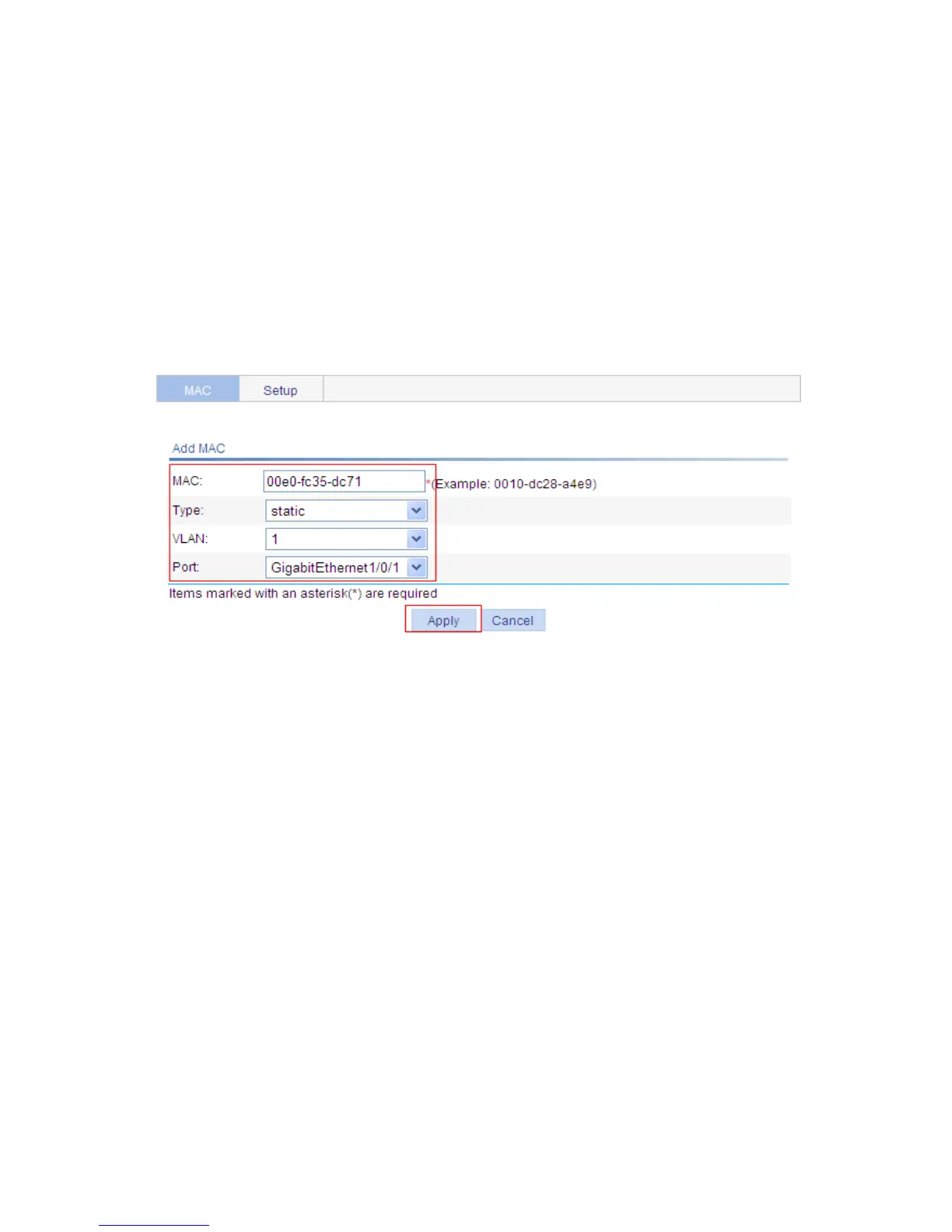

Select Network  MAC from the navigation tree to enter the MAC tab, and then click Add. The page shown
in a appears.
a. Create a static MAC address entry
 Type MAC address 00e0-fc35-dc71.
 Select static in the Type drop-down list.
 Select 1 in the VLAN drop-down list.
 Select GigabitEthernet1/0/1 in the Port drop-down list.
 Click Apply.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
