HP V1910 User Manual

17

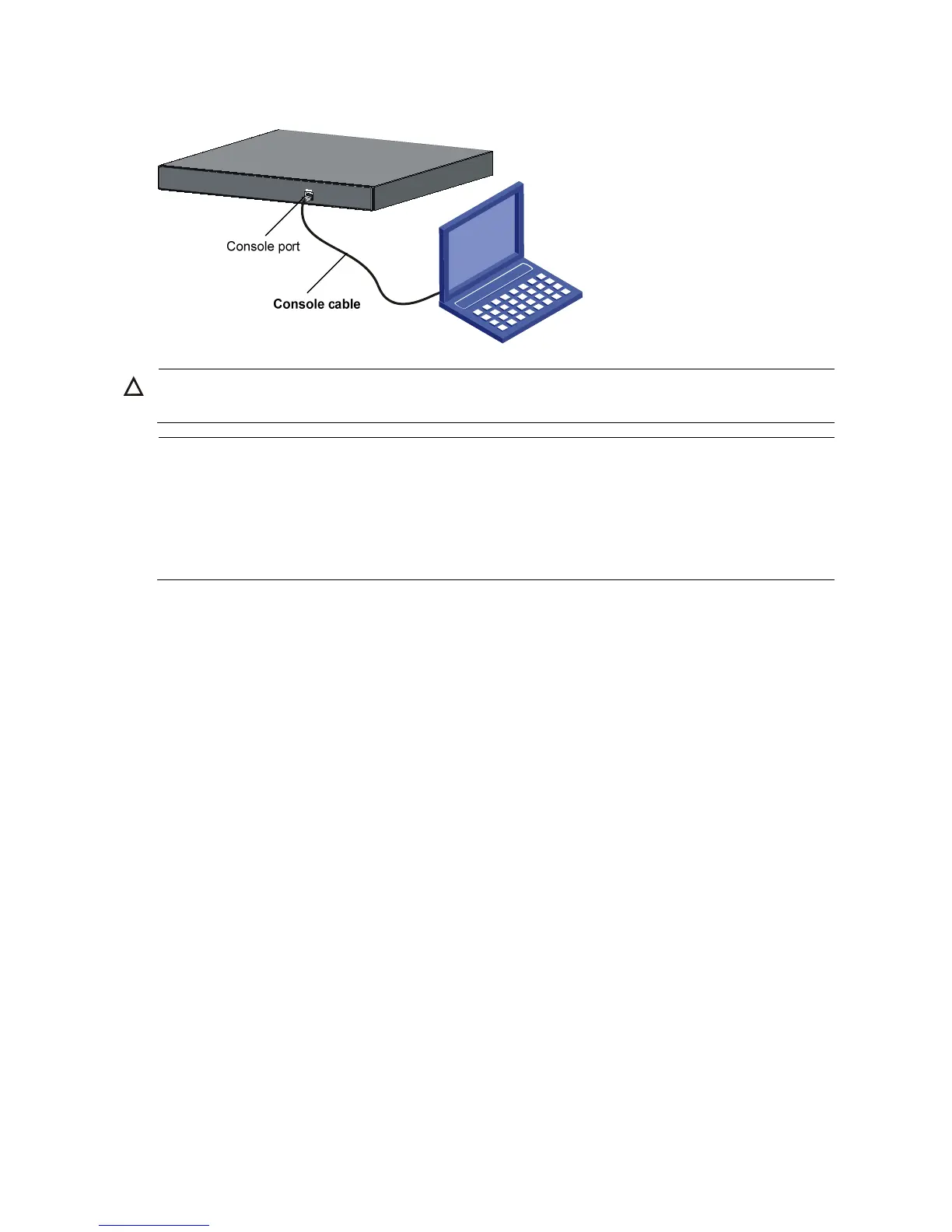

b. Network diagram for configuration environment setup
CAUTION:
V
erify the mark on the console port to ensure that you are connecting to the correct port.
NOTE:
The serial port on a PC does not support hot swapping. When you connect a PC to a powered-on
switch, connect the DB-9 connector of the console cable to the PC before connecting the RJ-45
connector to the switch.
 When you disconnect a PC from a powered-on switch, disconnect the DB-9 connector of the console
cable from the PC after disconnecting the RJ-45 connector from the switch.
Setting terminal parameters
To configure and manage the switch, you must run a terminal emulator program on the console terminal, for
example, a PC. This section uses Windows XP HyperTerminal as an example.
The following are the required terminal settings:
 Bits per second—38400
 Data bits—8
 Parity—None
 Stop bits—1
 Flow control—None
 Emulation—VT100
Follow these steps to set terminal parameters, for example, on a Windows XP HyperTerminal:
Table 5 Select Start  All Programs  Accessories  Communications  HyperTerminal, and in the
Connection Description dialog box that appears, type the name of the new connection in the Name text
box and click OK.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
