143
Item Descri
p
tion
VLAN IDs
Set the IDs of the VLANs that the selected ports are to be assigned to or removed
from. This item is available when the Untagged, Tagged, or Not A Member option
is selected in the Select membership type area.
Link Type
Set the link type of the selected ports, which can be access, hybrid, or trunk.
This item is available when the Link Type option is selected in the Select
membership type area.
PVID Set the PVID of the selected ports.
If you select Delete, you restore the PVID to VLAN 1.
This item is available when the PVID option is selected in the Select membership
type area.
Delete
Return to VLAN configuration task list (approach II).
VLAN configuration example
Network requirements
As shown in a:
Trunk port GigabitEthernet 1/0/1 of Switch A is connected to trunk port GigabitEthernet 1/0/1 of
Switch B.
The PVID of GigabitEthernet 1/0/1 is VLAN 100.
GigabitEthernet 1/0/1 permits packets of VLAN 2, VLAN 6 through VLAN 50, and VLAN 100 to pass
through.

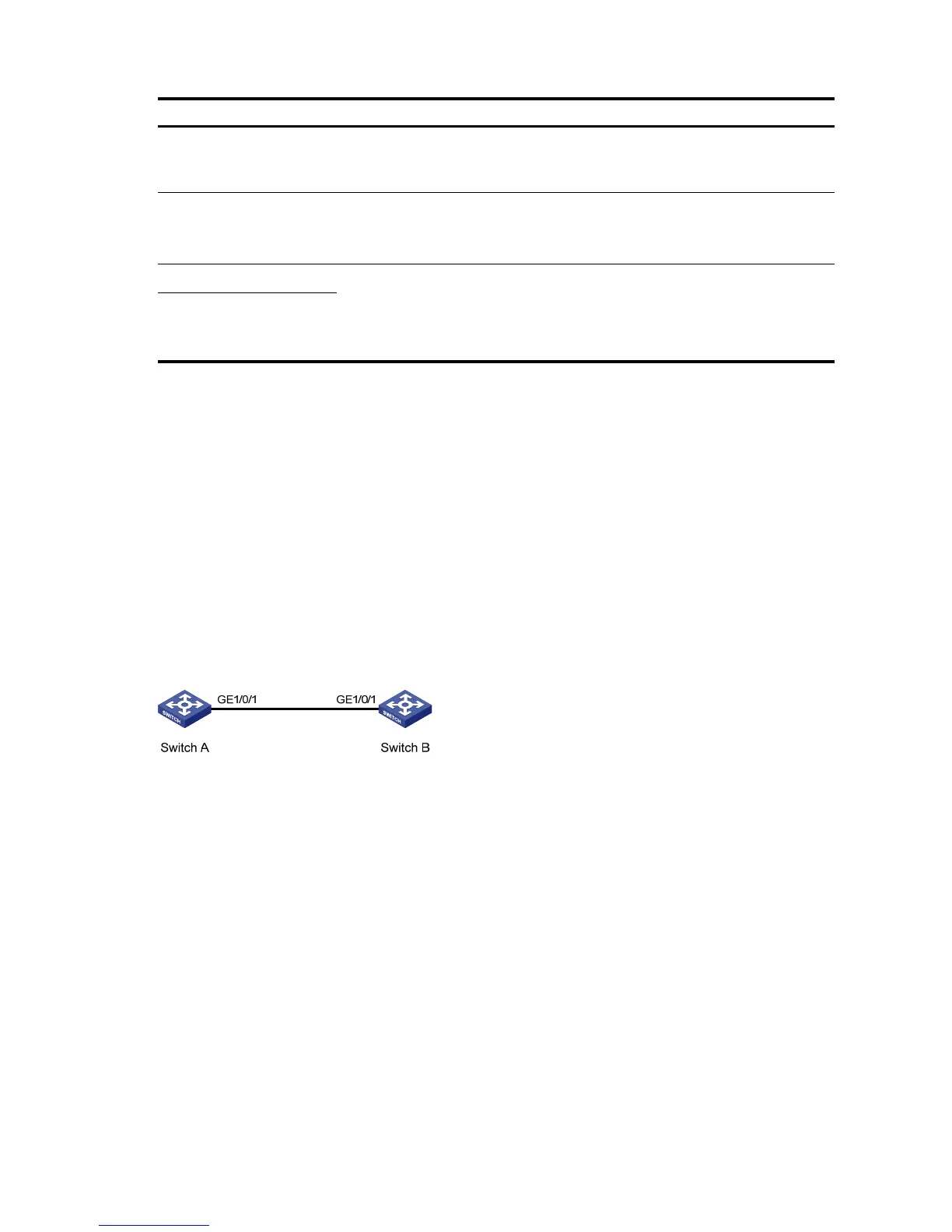

a. Network diagram for VLAN configuration
Configuration procedure
Table 44 Configure Switch A
# Configure GigabitEthernet 1/0/1 as a trunk port and configure VLAN 100 as its PVID.
Select Device Port Management from the navigation tree and click the Setup tab to enter the page shown
in b.
