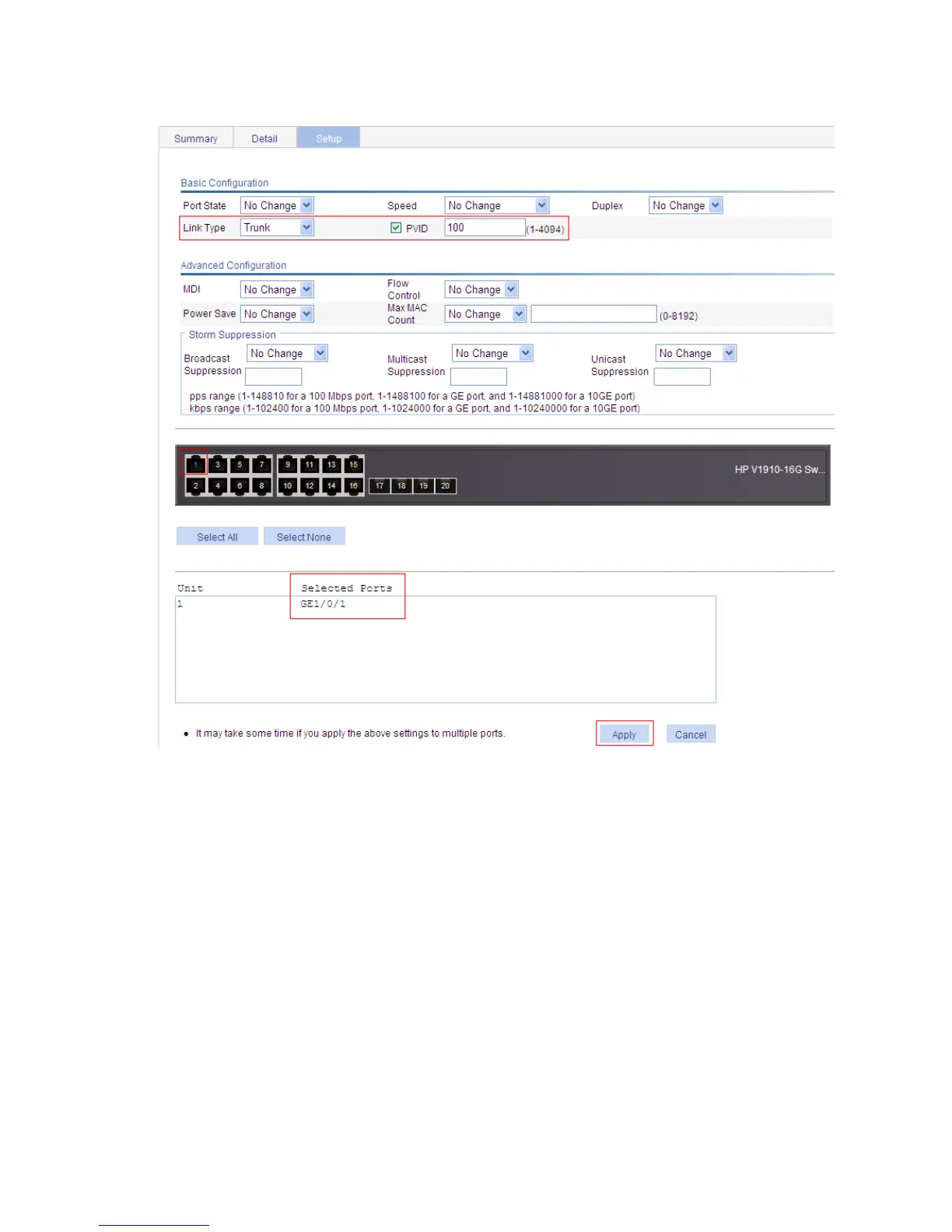

b. Configure GigabitEthernet 1/0/1 as a trunk port and its PVID as 100
Select Trunk in the Link Type drop-down list.
Select the PVID option, and type 100 in the text box.
Select GigabitEthernet 1/0/1 on the chassis front device panel.
Click Apply.
# Create VLAN 2, VLAN 6 through VLAN 50, and VLAN 100.
Select Network VLAN from the navigation tree and click the Create tab to enter the page shown in c.
