HP V1910 User Manual

148

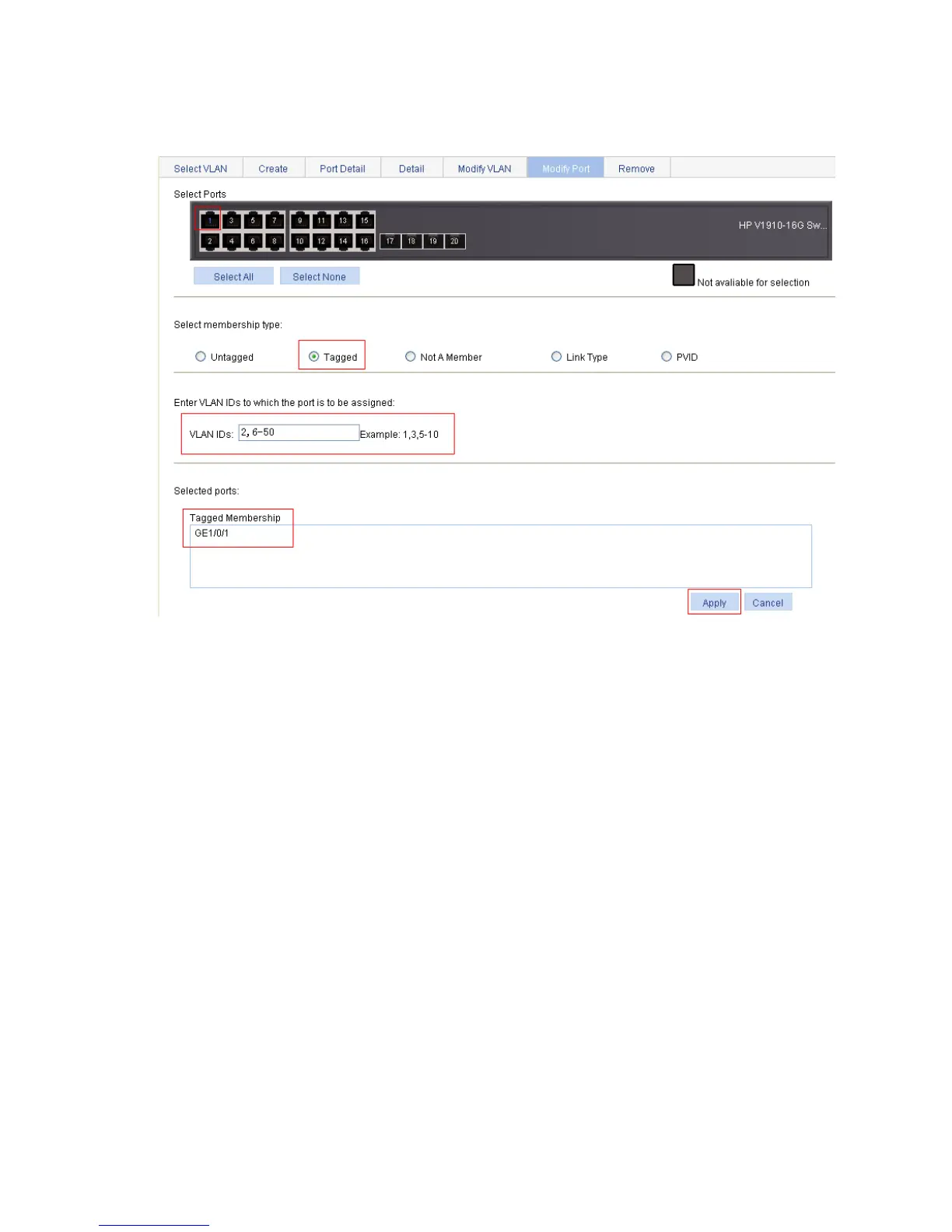

Click Modify Port to enter the page for modifying the VLANs to which a port belongs, as shown in g.
g. Assign GigabitEthernet 1/0/1 to VLAN 2 and VLANs 6 through 50 as a tagged member
 Select GigabitEthernet 1/0/1 on the chassis front device panel.
 Select the Tagged option in the Select membership type area.
 Type VLAN IDs 2, 6-50.
 Click Apply. A configuration progress dialog box appears.
 After the configuration process is complete, click Close in the dialog box.
Table 45 Configure Switch B
Configure Switch B as you configured Switch A.
Configuration guidelines
When configuring the VLAN function, follow these guidelines:
 As the default VLAN, VLAN 1 cannot be created or removed.
 You cannot create or remove VLANs reserved for special purposes.
 Dynamic VLANs cannot be removed on the page for removing VLANs.
 You cannot remove a VLAN that has referenced a QoS policy.
 To remove a remote probe VLAN for remote port mirroring, you must remove the remote probe VLAN
configuration first.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
