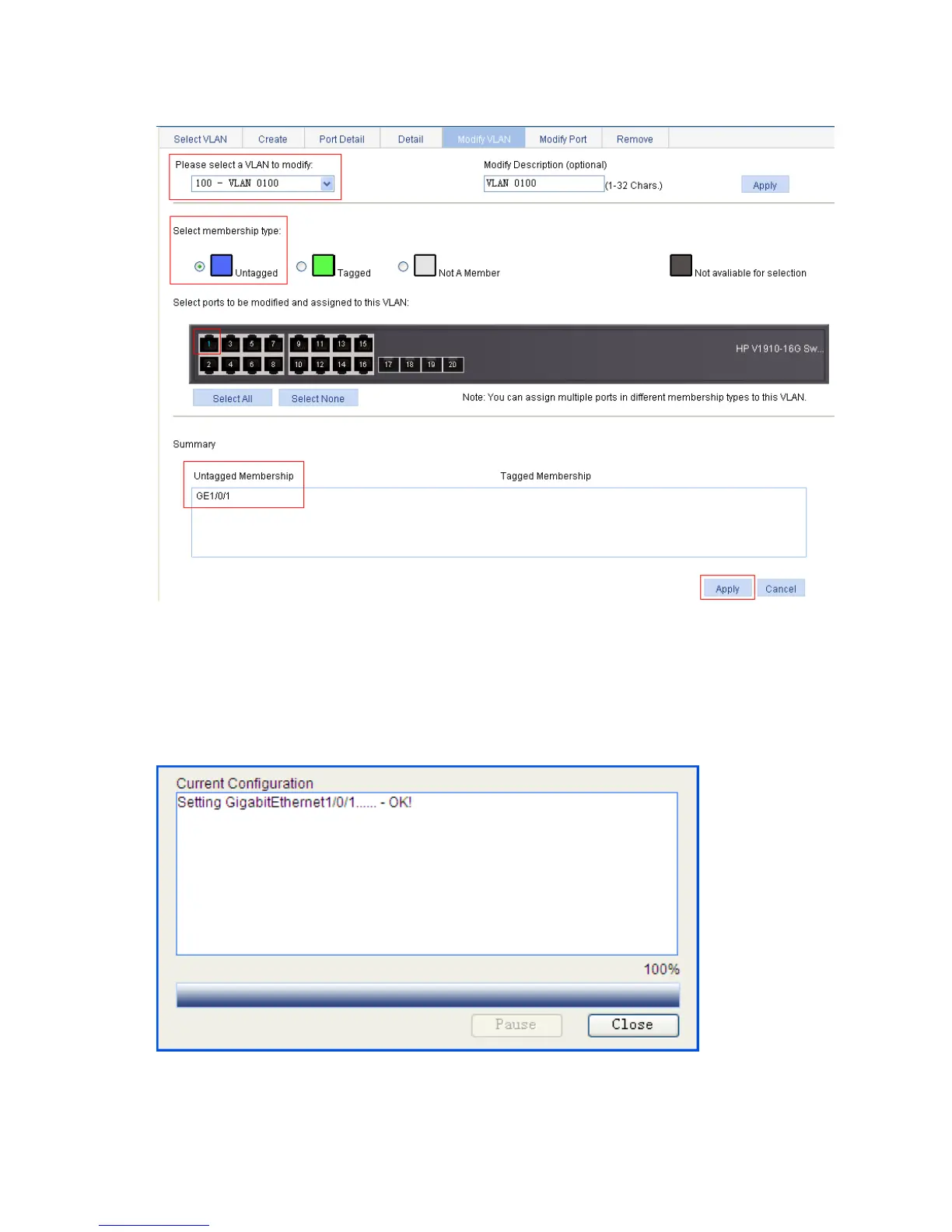

e. Assign GigabitEthernet 1/0/1 to VLAN 100 as an untagged member
Select 100 – VLAN 0100 in the Please select a VLAN to modify drop-down list.
Select the Untagged option in the Select membership type area.
Select GigabitEthernet 1/0/1 on the chassis front device panel.
Click Apply. A configuration progress dialog box appears, as shown in f.
f. Configuration progress dialog box
After the configuration process is complete, click Close.
# Assign GigabitEthernet 1/0/1 to VLAN 2 and VLANs 6 through 50 as a tagged member.
