Port mirroring configuration
Introduction to port mirroring
Port mirroring is the process of copying the packets passing through a port (called a mirroring port) to
another port (called the monitor port) connected with a monitoring device for packet analysis.
You can mirror inbound, outbound, or bidirectional traffic on a port as needed.
Implementing port mirroring
Port mirroring is implemented through local port mirroring groups. The following subsections describe how
local port mirroring is implemented.
Local port mirroring
In local port mirroring, all packets (including protocol and data packets) passing through a port can be
mirrored. Local port mirroring is implemented through a local mirroring group.
As shown in a, packets on the mirroring port are mirrored to the monitor port for the data monitoring device
to analyze.

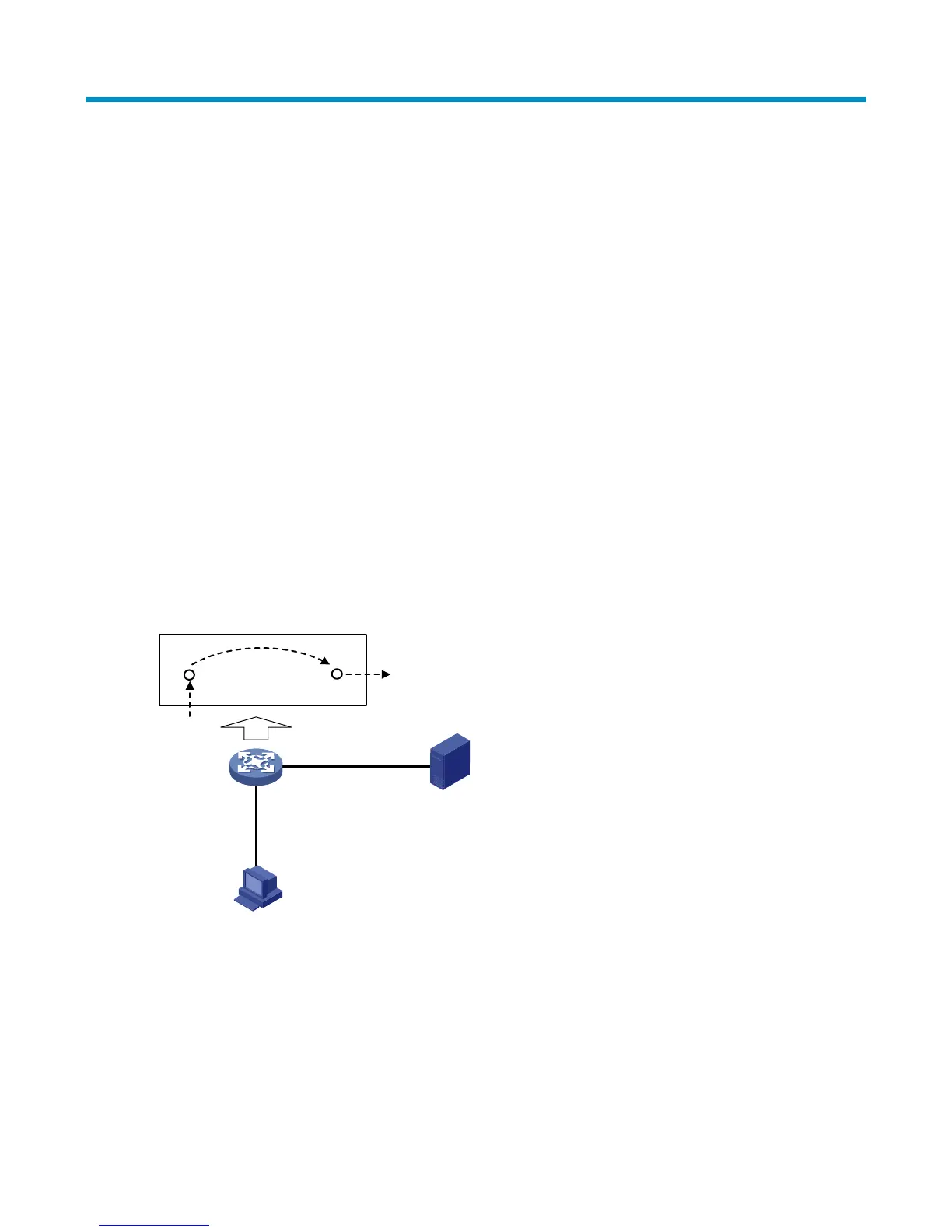

a. Local port mirroring implementation
PC
Mirroring port
Monitor port
Data monitoring device
Mirroring port
How the device processes packets
Monitor port
Traffic
mirrored to

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
