HP V1910 User Manual

408

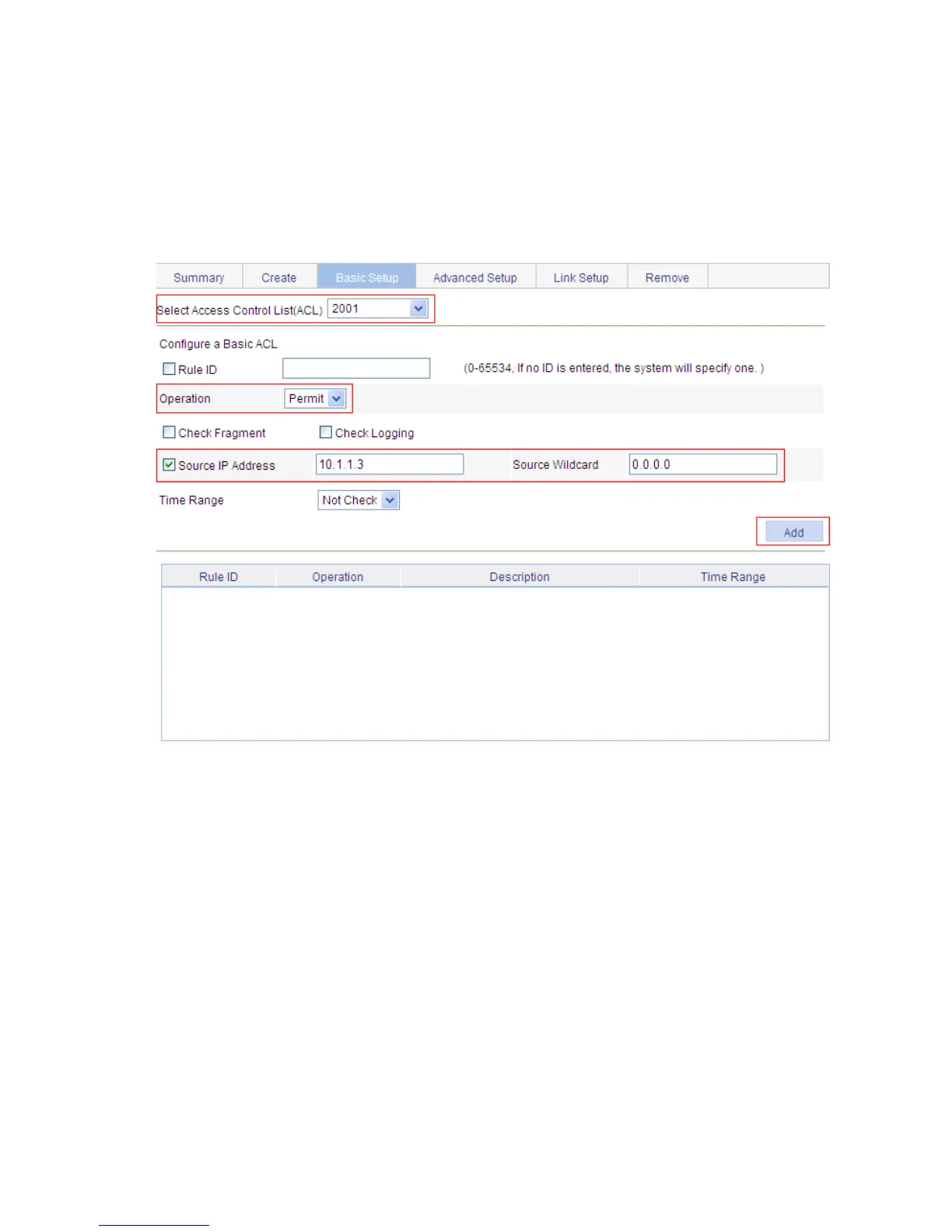

 Select 2001 from the Select Access Control List (ACL) drop-down list.
 Select Permit from the Operation drop-down list.
 Select the Source IP Address check box and then type 10.1.1.3.
 Type 0.0.0.0 in the Source Wildcard text box.
 Click Add.
b. Configure an ACL rule to permit Host B
# Configure authorized IP.
 Select Security  Authorized IP from the navigation tree and then click the Setup tab to enter the
authorized IP configuration page shown in c.
 Select 2001 for IPv4 ACL in the Telnet field.
 Select 2001 for IPv4 ACL in the Web(HTTP) field.
 Click Apply.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
