HP V1910 User Manual

111

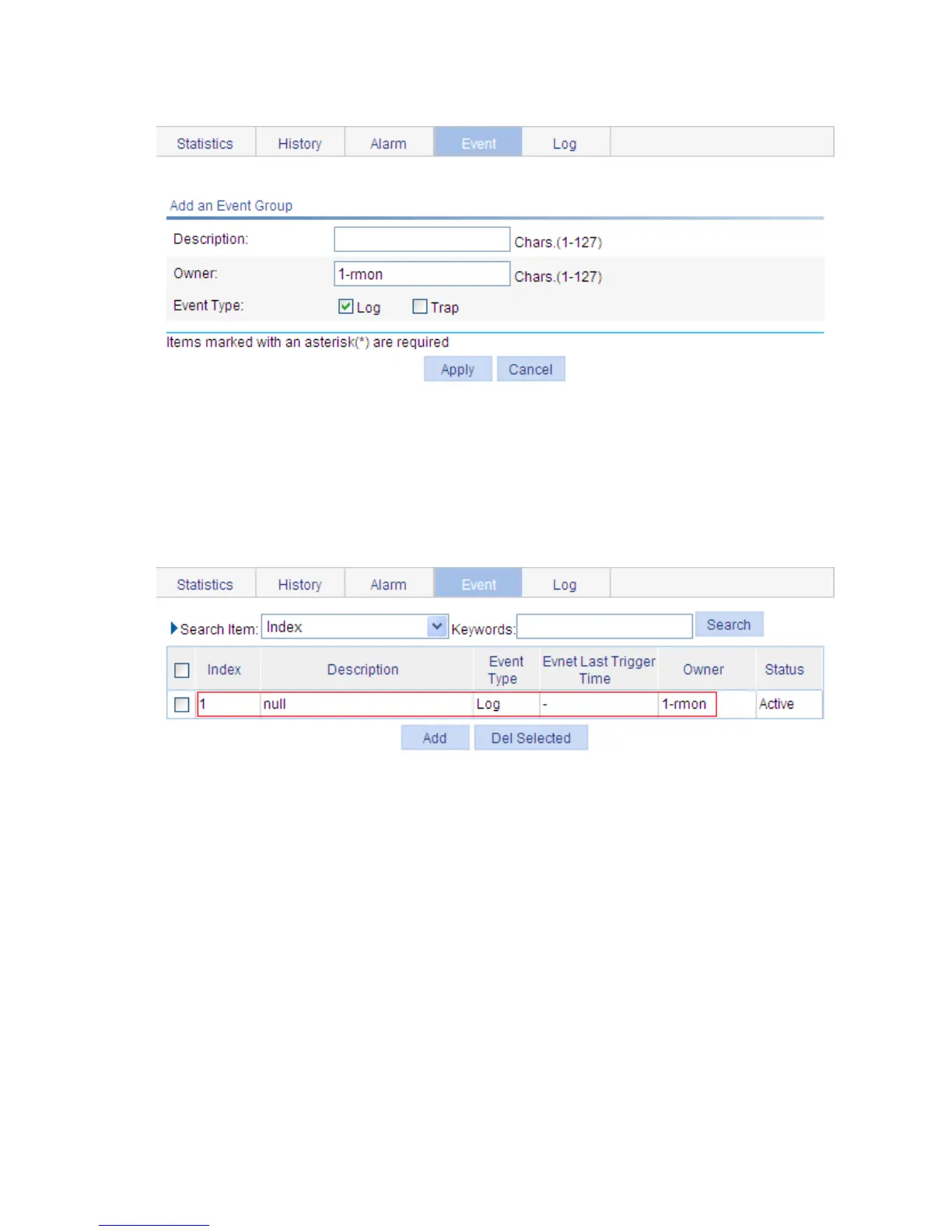

c. Configure an event group
 Type 1-rmon in the text box of Owner.
 Select the check box before Log.
 Click Apply.
 The page goes to the page displaying the event entry, and you can see that the entry index of the new
event is 1, as shown in d.
d. Display the index of a event entry
# Configure an alarm group to sample received bytes on Ethernet 1/0/1. When the received bytes exceed
the rising or falling threshold, logging is enabled.
 Click the Alarm tab, click Add.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
